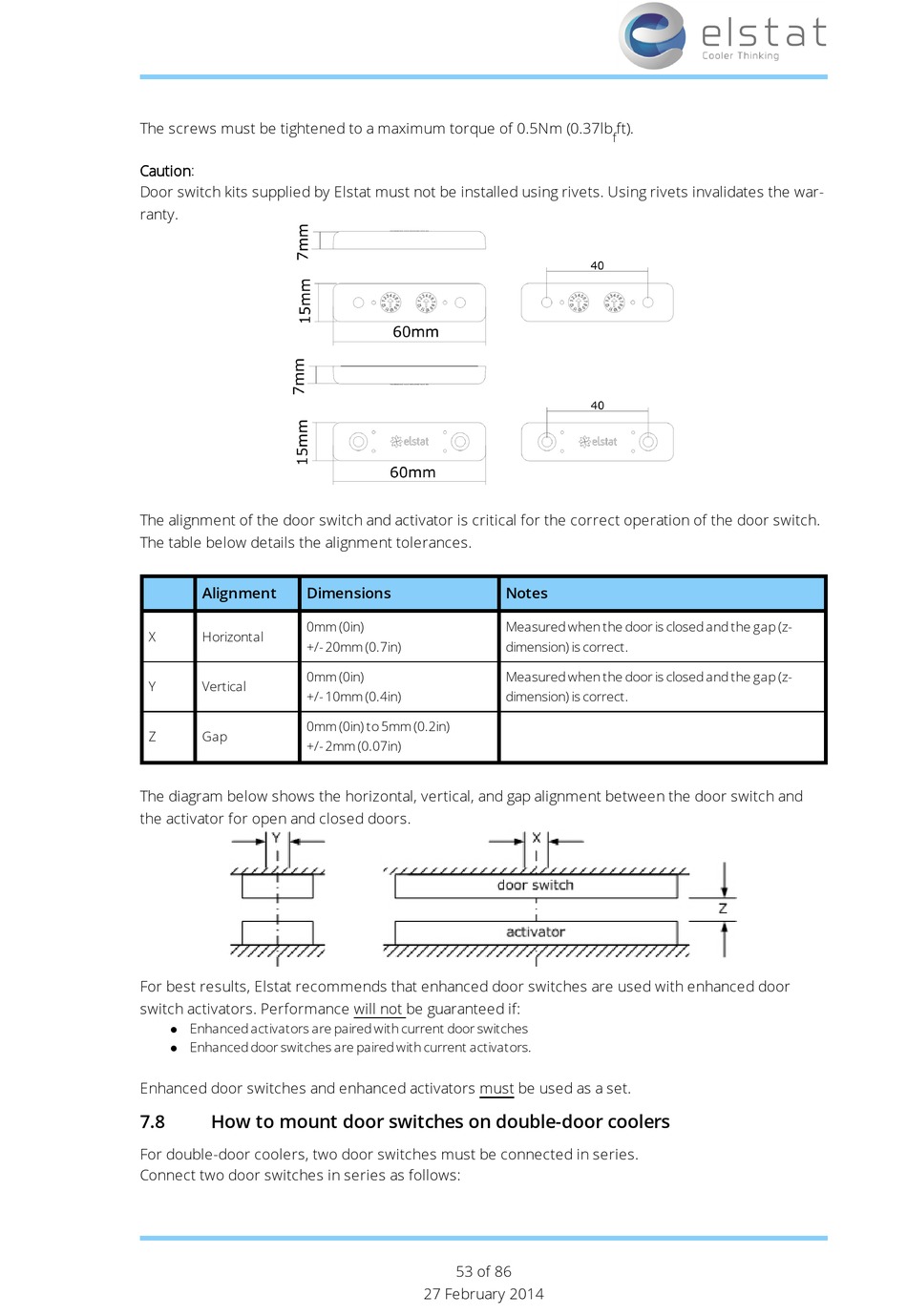

The screws must be tightened to a maximum torque of 0.5Nm (0.37lb
Caution:
Door switch kits supplied by Elstat must not be installed using rivets. Using rivets invalidates the war-
ranty.
The alignment of the door switch and activator is critical for the correct operation of the door switch.
The table below details the alignment tolerances.
Alignment Dimensions
0mm (0in)
X Horizontal
+/- 20mm (0.7in)
0mm (0in)
Y Vertical
+/- 10mm (0.4in)
0mm (0in) to 5mm (0.2in)
Z Gap
+/- 2mm (0.07in)
The diagram below shows the horizontal, vertical, and gap alignment between the door switch and
the activator for open and closed doors.
For best results, Elstat recommends that enhanced door switches are used with enhanced door
switch activators. Performance will not be guaranteed if:
Enhanced activators are paired with current door switches
l
Enhanced door switches are paired with current activators.
l
Enhanced door switches and enhanced activators must be used as a set.
7.8

How to mount door switches on double-door coolers

For double-door coolers, two door switches must be connected in series.
Connect two door switches in series as follows:
Notes
Measured when the door is closed and the gap (z-
dimension) is correct.
Measured when the door is closed and the gap (z-
dimension) is correct.
