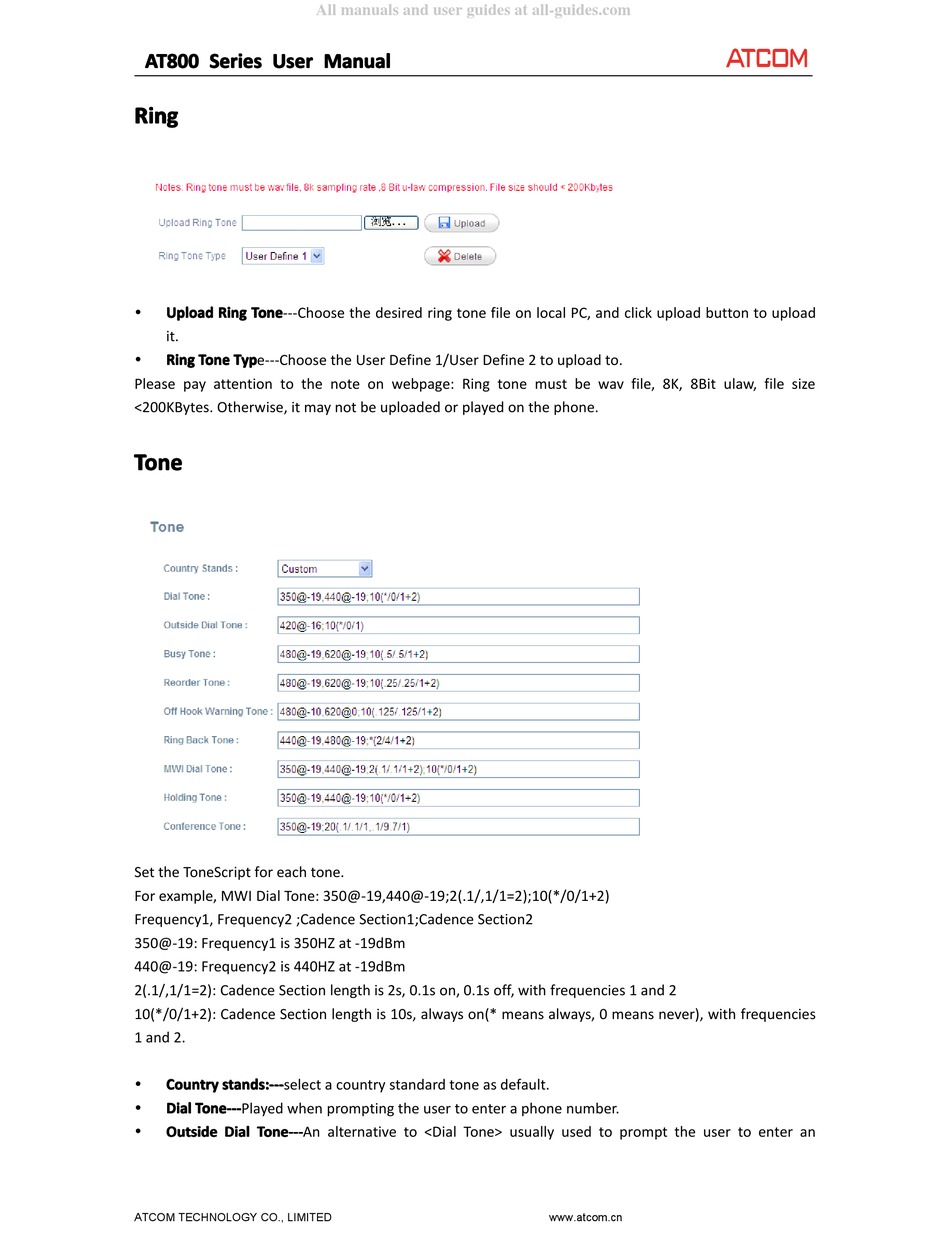

ATCOM AT800 Series User Manual page 39

AT800 AT800 AT800 AT800 Series Series Series Series User User User User Manual
Ring
Ring Ring Ring
Upload Ring Tone
� Upload Upload Upload Ring Ring Tone Ring Tone Tone---Choose the desired ring tone file on local PC, and click upload button to upload
it.
� Ring Ring Ring Ring Tone Tone Tone Typ Tone Typ Type---Choose the User Define 1/User Define 2 to upload to. Typ
Please pay attention to the note on webpage: Ring tone must be wav file, 8K, 8Bit ulaw, file size
<200KBytes. Otherwise, it may not be uploaded or played on the phone.
Tone
Tone Tone Tone
Set the ToneScript for each tone.
For example, MWI Dial Tone: 350@-19,440@-19;2(.1/,1/1=2);10(*/0/1+2)
Frequency1, Frequency2 ;Cadence Section1;Cadence Section2
350@-19: Frequency1 is 350HZ at -19dBm
440@-19: Frequency2 is 440HZ at -19dBm
2(.1/,1/1=2): Cadence Section length is 2s, 0.1s on, 0.1s off, with frequencies 1 and 2
10(*/0/1+2): Cadence Section length is 10s, always on(* means always, 0 means never), with frequencies
1 and 2.
� Country Country Country stands: Country stands: stands:--- --- --- ---select a country standard tone as default. stands:
� Dial Tone Dial Dial Dial Tone Tone Tone--- --- --- ---Played when prompting the user to enter a phone number.
Outside Dial Tone Tone--- --- --- ---An alternative to <Dial Tone> usually used to prompt the user to enter an
� Outside Outside Dial Outside Dial Dial Tone Tone
