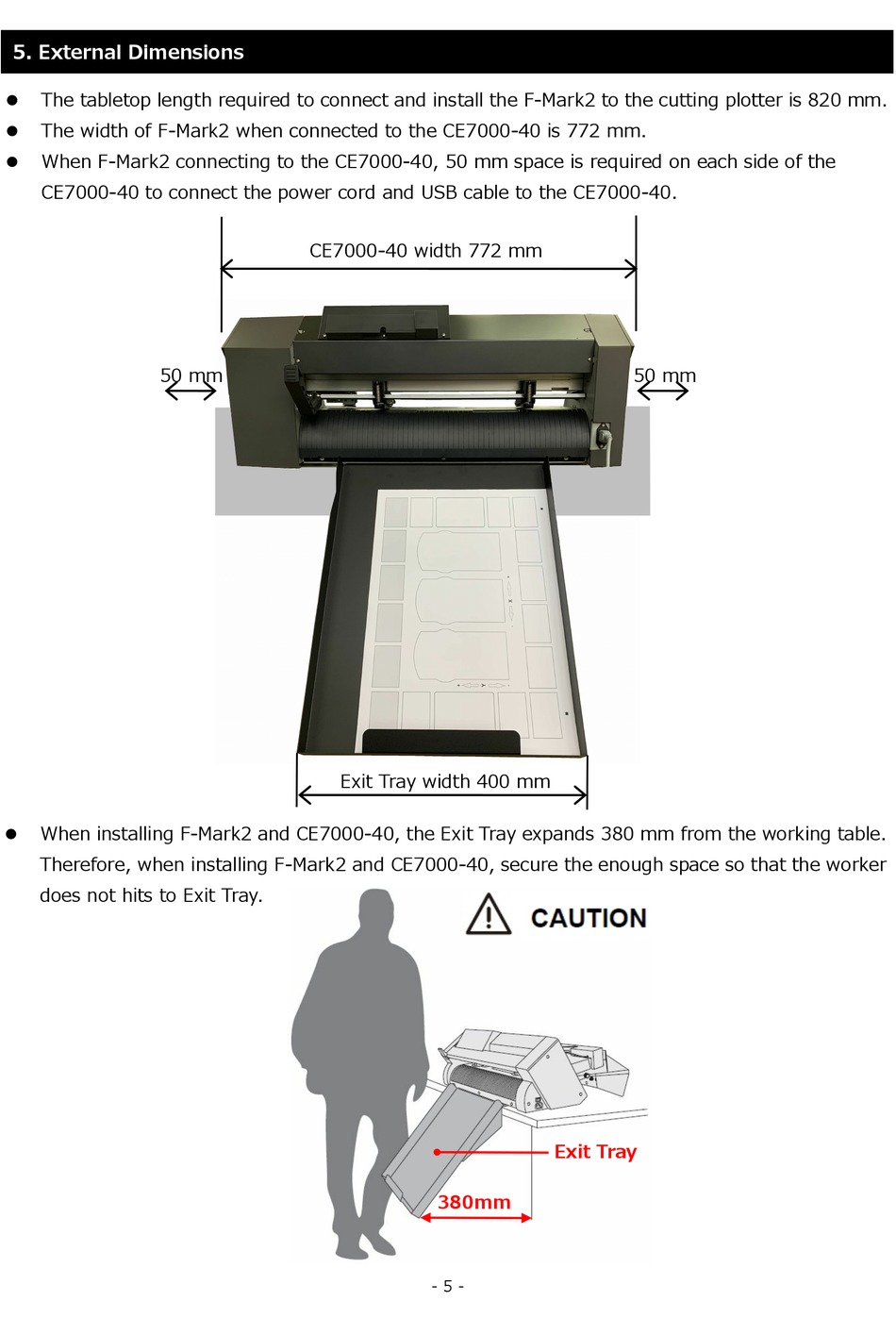

5. External Dimensions

The tabletop length required to connect and install the F-Mark2 to the cutting plotter is 820 mm.

The width of F-Mark2 when connected to the CE7000-40 is 772 mm.

When F-Mark2 connecting to the CE7000-40, 50 mm space is required on each side of the

CE7000-40 to connect the power cord and USB cable to the CE7000-40.
50 mm
When installing F-Mark2 and CE7000-40, the Exit Tray expands 380 mm from the working table.

Therefore, when installing F-Mark2 and CE7000-40, secure the enough space so that the worker
does not hits to Exit Tray.
CE7000-40 width 772 mm
Exit Tray width 400 mm
380mm
- 5 -
50 mm
Exit Tray
