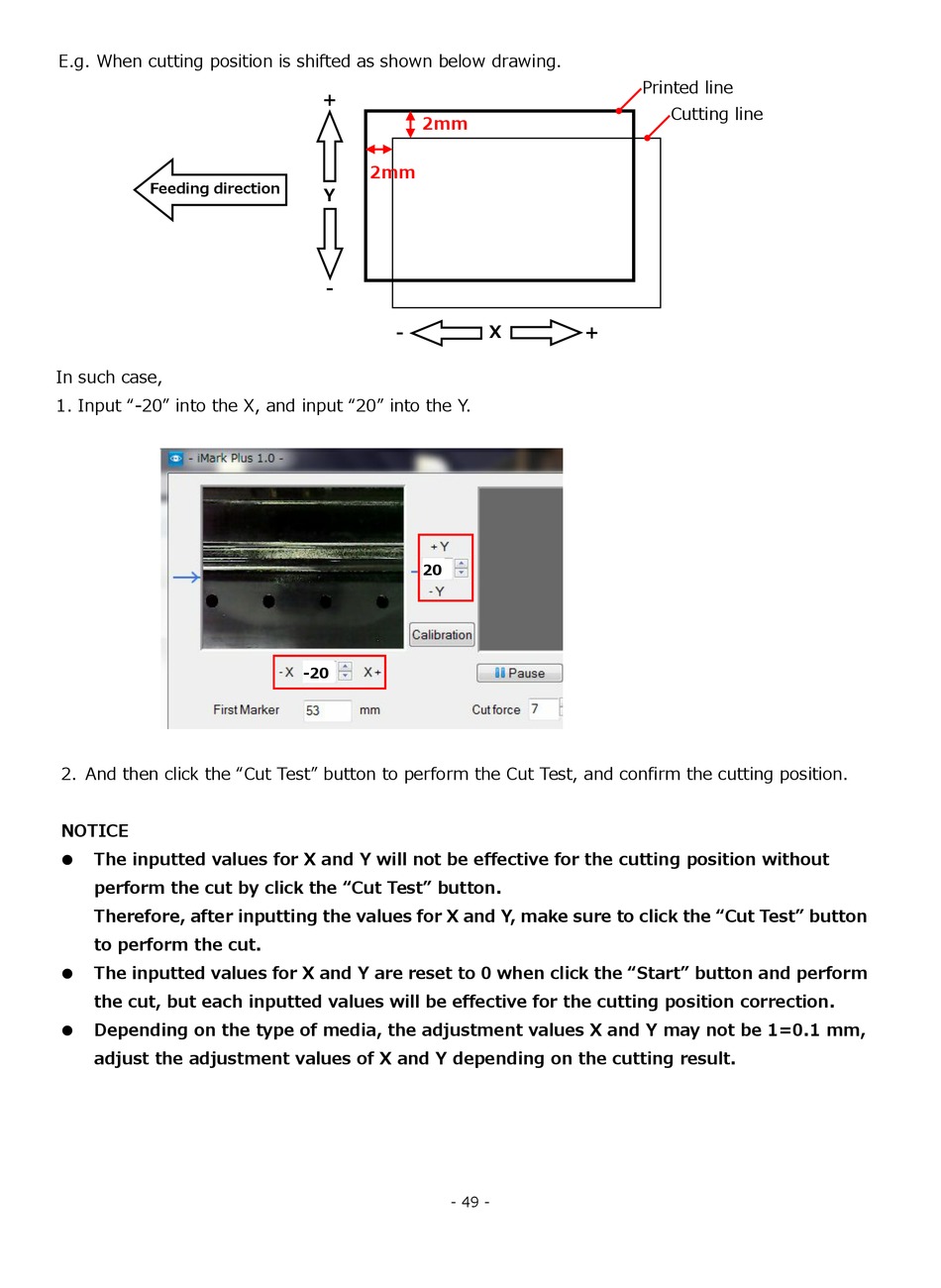

GRAPHTEC F-Mark 2 Setup & User's Manual page 51

E.g. When cutting position is shifted as shown below drawing.
Feeding direction
In such case,
1. Input "-20" into the X, and input "20" into the Y.
2. And then click the "Cut Test" button to perform the Cut Test, and confirm the cutting position.
NOTICE
The inputted values for X and Y will not be effective for the cutting position without

perform the cut by click the "Cut Test" button.
Therefore, after inputting the values for X and Y, make sure to click the "Cut Test" button
to perform the cut.
The inputted values for X and Y are reset to 0 when click the "Start" button and perform

the cut, but each inputted values will be effective for the cutting position correction.
Depending on the type of media, the adjustment values X and Y may not be 1=0.1 mm,

adjust the adjustment values of X and Y depending on the cutting result.
+
2mm
2mm
Y
-
-
20
-20
- 49 -
Printed line
X +
Cutting line
