11. Cable connection

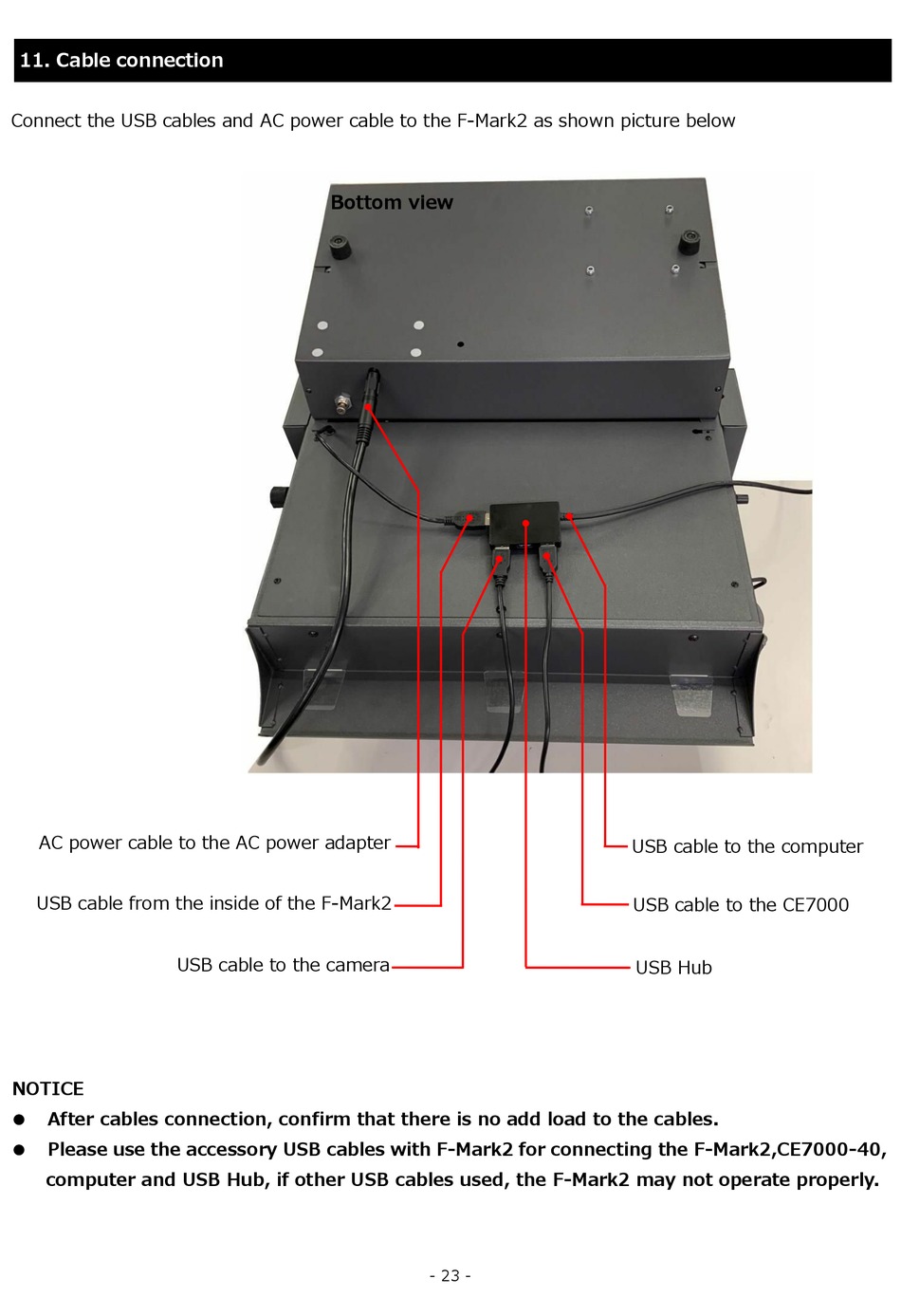

Connect the USB cables and AC power cable to the F-Mark2 as shown picture below
AC power cable to the AC power adapter
USB cable from the inside of the F-Mark2
USB cable to the camera
NOTICE
After cables connection, confirm that there is no add load to the cables.

Please use the accessory USB cables with F-Mark2 for connecting the F-Mark2,CE7000-40,

computer and USB Hub, if other USB cables used, the F-Mark2 may not operate properly.
Bottom view
- 23 -
USB cable to the computer
USB cable to the CE7000
USB Hub
