3. Necessary items in advance for installing F-Mark2

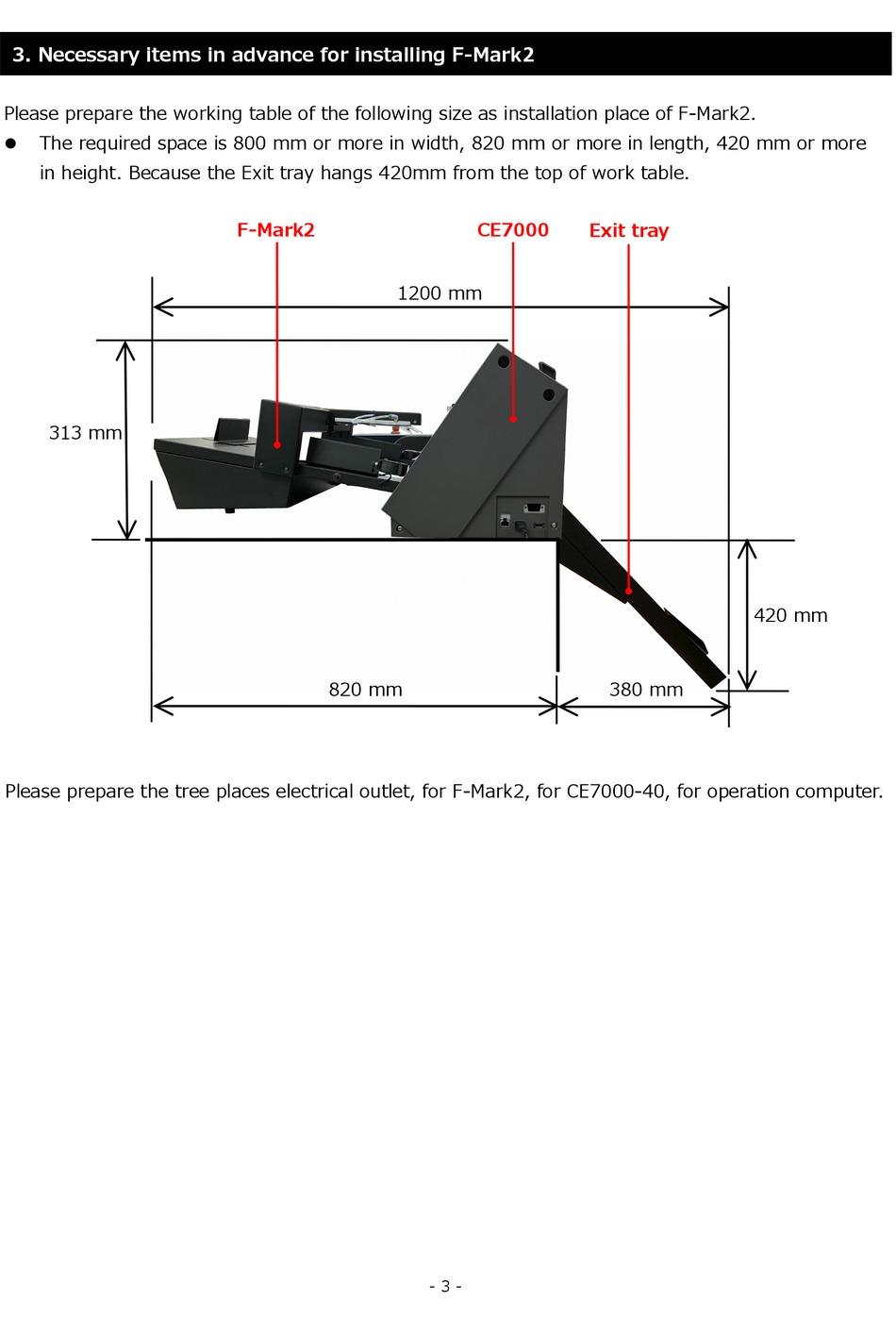

Please prepare the working table of the following size as installation place of F-Mark2.
The required space is 800 mm or more in width, 820 mm or more in length, 420 mm or more

in height. Because the Exit tray hangs 420mm from the top of work table.
313 mm
Please prepare the tree places electrical outlet, for F-Mark2, for CE7000-40, for operation computer.
F-Mark2
1200 mm
820 mm
CE7000
Exit tray
- 3 -
420 mm
380 mm
