10. How to attach the Camera to the CE7000-40

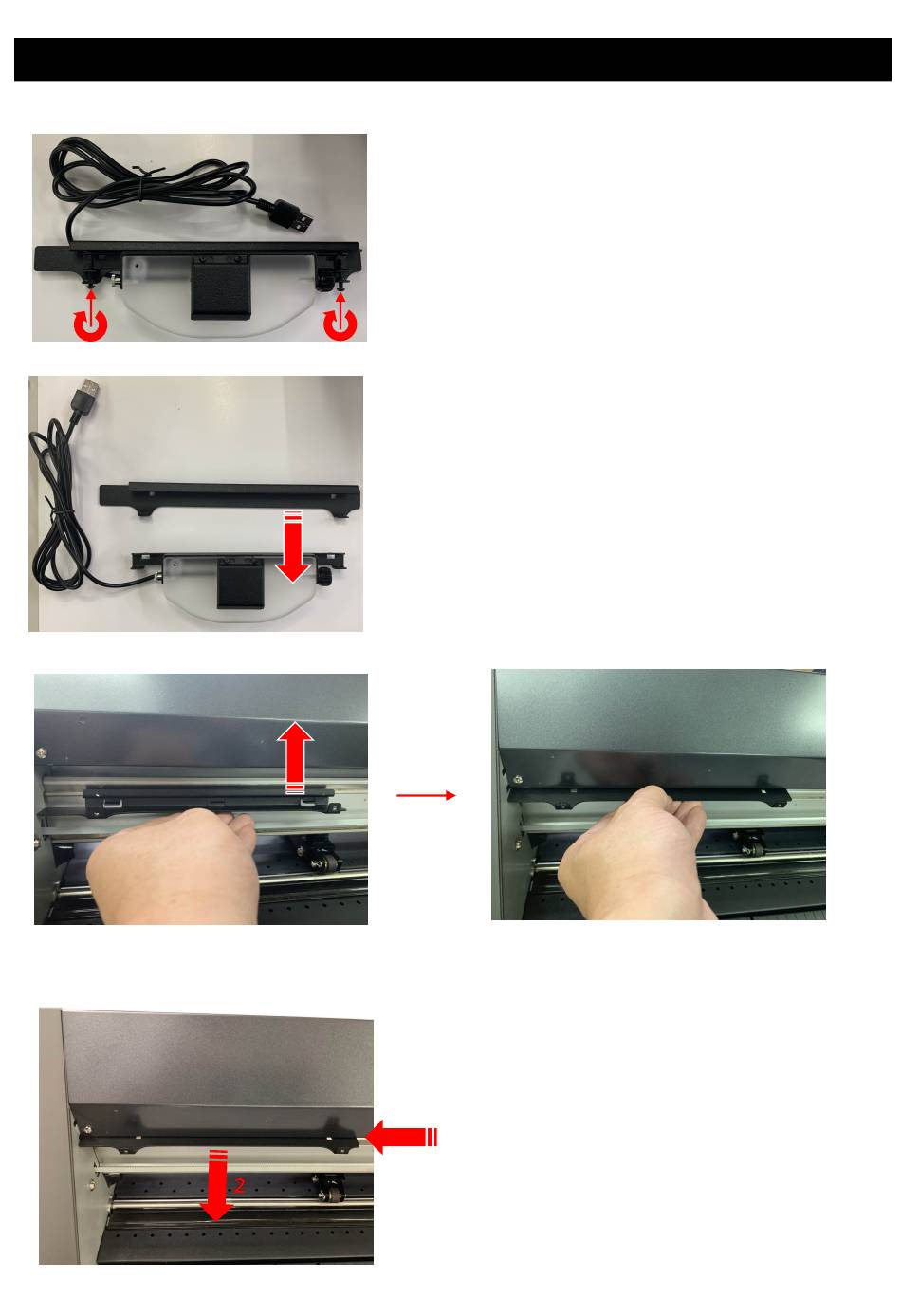

1. Detach the two M2L20 screws from the Camera Assembly using the accessory allen wrench.
2. Separate the Bracket from the Camera
3. Insert the Bracket into the back of Center Cover of the CE7000-40.
4. Attach the Bracket to the left side of the Center Cover of the CE7000-40 as shown in below
picture. Push it all at left as the arrow1 and then pull it in the direction of arrow2.
