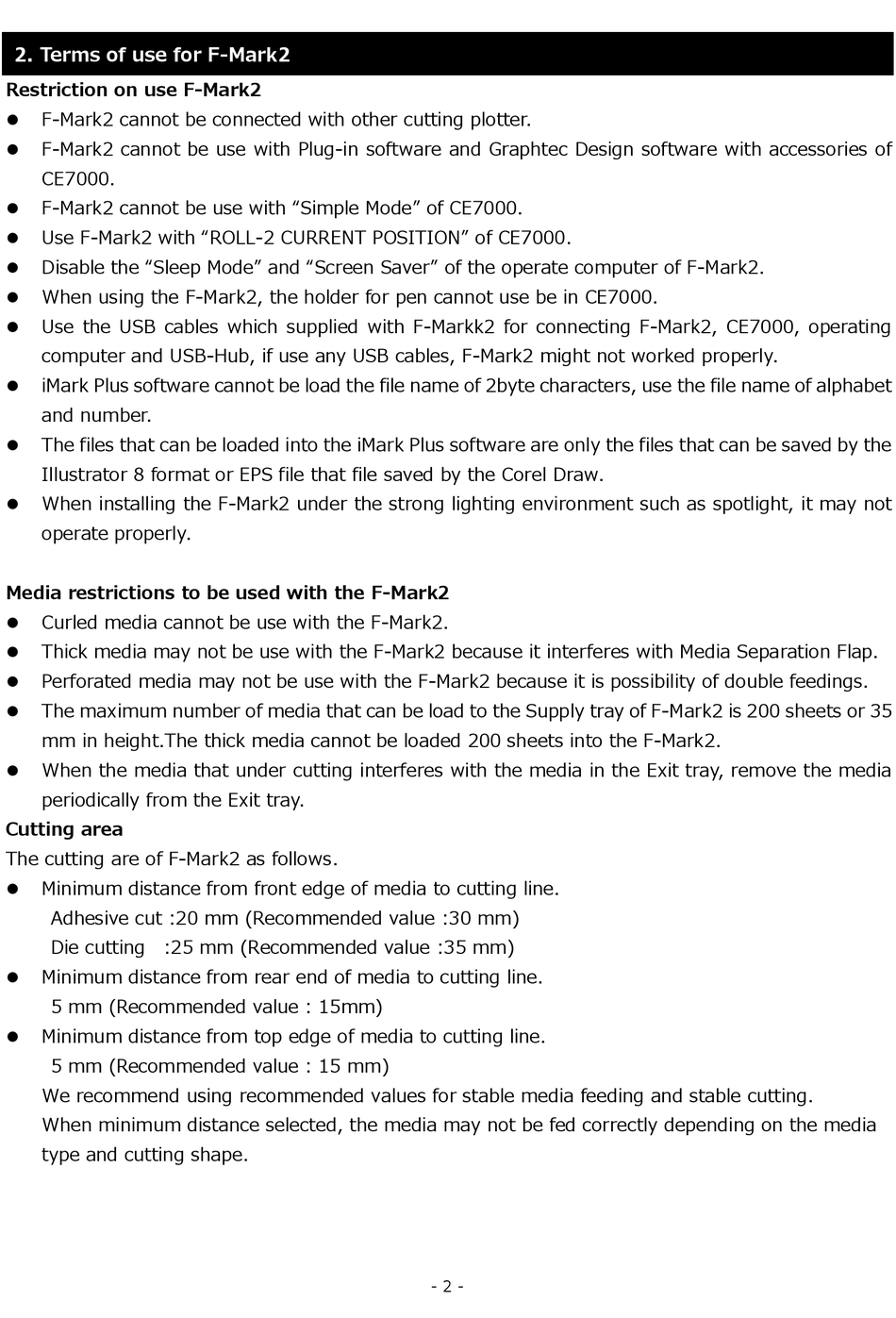

2. Terms of use for F-Mark2

Restriction on use F-Mark2
F-Mark2 cannot be connected with other cutting plotter.

F-Mark2 cannot be use with Plug-in software and Graphtec Design software with accessories of

CE7000.
F-Mark2 cannot be use with "Simple Mode" of CE7000.

Use F-Mark2 with "ROLL-2 CURRENT POSITION" of CE7000.

Disable the "Sleep Mode" and "Screen Saver" of the operate computer of F-Mark2.

When using the F-Mark2, the holder for pen cannot use be in CE7000.

Use the USB cables which supplied with F-Markk2 for connecting F-Mark2, CE7000, operating

computer and USB-Hub, if use any USB cables, F-Mark2 might not worked properly.
iMark Plus software cannot be load the file name of 2byte characters, use the file name of alphabet

and number.
The files that can be loaded into the iMark Plus software are only the files that can be saved by the

Illustrator 8 format or EPS file that file saved by the Corel Draw.
When installing the F-Mark2 under the strong lighting environment such as spotlight, it may not

operate properly.
Media restrictions to be used with the F-Mark2
Curled media cannot be use with the F-Mark2.

Thick media may not be use with the F-Mark2 because it interferes with Media Separation Flap.

Perforated media may not be use with the F-Mark2 because it is possibility of double feedings.

The maximum number of media that can be load to the Supply tray of F-Mark2 is 200 sheets or 35

mm in height.The thick media cannot be loaded 200 sheets into the F-Mark2.
When the media that under cutting interferes with the media in the Exit tray, remove the media

periodically from the Exit tray.
Cutting area
The cutting are of F-Mark2 as follows.
Minimum distance from front edge of media to cutting line.

Adhesive cut :20 mm (Recommended value :30 mm)
Die cutting :25 mm (Recommended value :35 mm)
Minimum distance from rear end of media to cutting line.

5 mm (Recommended value : 15mm)
Minimum distance from top edge of media to cutting line.

5 mm (Recommended value : 15 mm)
We recommend using recommended values for stable media feeding and stable cutting.
When minimum distance selected, the media may not be fed correctly depending on the media
type and cutting shape.
- 2 -
