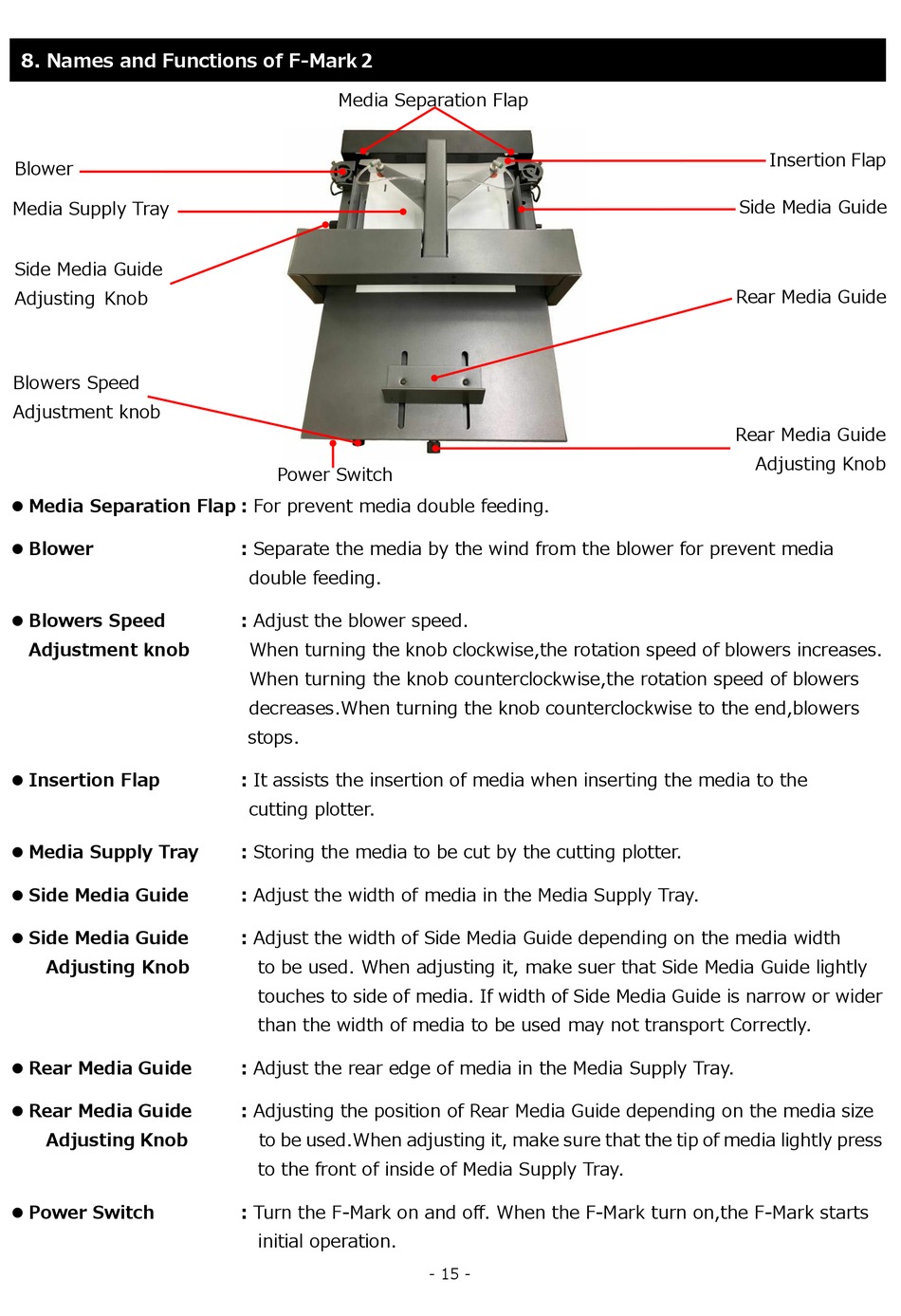

8. Names and Functions of F-Mark2
Blower
Media Supply Tray
Side Media Guide
Adjusting Knob
Blowers Speed
Adjustment knob
 Media Separation Flap : For prevent media double feeding.
 Blower
 Blowers Speed
Adjustment knob
 Insertion Flap
 Media Supply Tray
 Side Media Guide
 Side Media Guide
Adjusting Knob
 Rear Media Guide
 Rear Media Guide
Adjusting Knob
 Power Switch
Media Separation Flap
Power Switch
: Separate the media by the wind from the blower for prevent media
double feeding.
: Adjust the blower speed.
When turning the knob clockwise,the rotation speed of blowers increases.
When turning the knob counterclockwise,the rotation speed of blowers
decreases.When turning the knob counterclockwise to the end,blowers
stops.
: It assists the insertion of media when inserting the media to the
cutting plotter.
: Storing the media to be cut by the cutting plotter.
: Adjust the width of media in the Media Supply Tray.
: Adjust the width of Side Media Guide depending on the media width
to be used. When adjusting it, make suer that Side Media Guide lightly
touches to side of media. If width of Side Media Guide is narrow or wider
than the width of media to be used may not transport Correctly.
: Adjust the rear edge of media in the Media Supply Tray.
: Adjusting the position of Rear Media Guide depending on the media size
to be used.When adjusting it, make sure that the tip of media lightly press
to the front of inside of Media Supply Tray.
: Turn the F-Mark on and off. When the F-Mark turn on,the F-Mark starts
initial operation.
- 15 -
Insertion Flap
Side Media Guide
Rear Media Guide
Rear Media Guide
Adjusting Knob
