- Page 1 For safety reasons, please read the manual first before plugging in machine. Please keep this manual properly for convenient reference as needed.
- Page 2 Safety Introduction – Read before operating This manual is intended to provide detailed descriptions together with all necessary information covering the general operation of electronic assemblies, electromechanical, servicing control, spare parts, etc. for the product: Hot Racers This manual is intended for the owners, personnel managers in charge of operation of this product. Operate the product after carefully reading and sufficiently understanding the instructions.
- Page 3 Potential Risk to life or damage to product If ignored, may result in the mishandling of the product and cause faulty operation or damage to the product or person(s) Definition of 'Site Maintenance Personnel’ or Other Qualified individuals. Individuals STOP IMPORTANT Procedures not described in this manual or marked as ‘to be carried out by site maintenance personnel or other qualified professionals should not be carried...
- Page 4 SEGA shall not be held responsible for any accidents, compensation for damage to a third party, resulting from the specifications not designated by SEGA.
- Page 5 INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before turning on the power,check the following points to ensure that the product has been transported in a satisfactory status.
-
Page 6: Table Of Contents

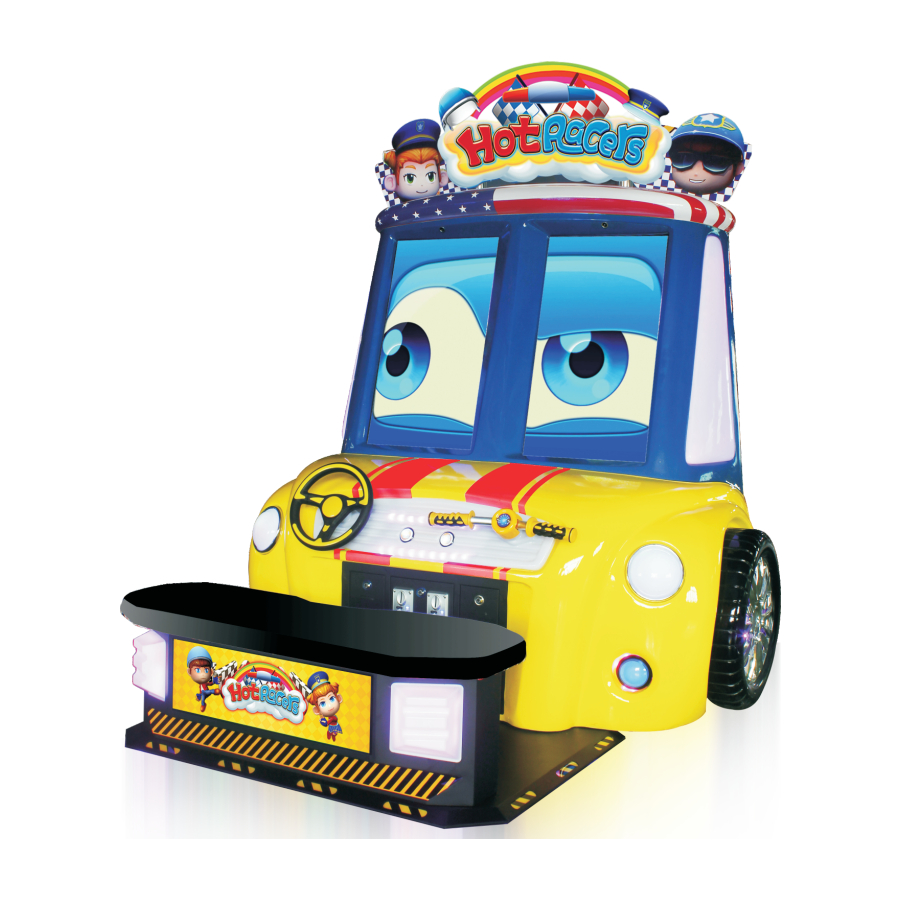

INTRODUCTION Thank you for choosing SEA Animation Technology's hot racers double-screen racing game . It's a racing game mainly for children, but also for parents to play with their children. With high recognition, classic police theme and interesting big eyes in demo mode. You can choose ticket, capsule or play for fun game modes. -
Page 7: Product Specification
PRODUCT SPECIFICATION Location Indoor Only Dimension 1700(W)X1500(D)X2080(H) AC220V 50HZ /60HZ Rated Voltage、 Frequency AC110V 50HZ /60HZ Power Consumption 370W Weight 150kg * 110V voltage can be set through the power supply. Please contact the distributor for details. NOTE:The contents herein described are subject to change without notice. 2080 1500 1700... -
Page 8: Installation
INSTALLATION Installation complete Installation accessories parts Pass Seat LED harness Lift main cabinet to Connect harness through floor hole locate floor hole lift Pass floor bolt Fit the lock nut Fit rubber bush through cabinet hole... - Page 9 INSTALLATION 0pen access door Remove screws from Remove the light box from the door back door that hold the light box Gasket parts Install light box Fit left & right Pass wires from light character heads box into cabinet to light box Connect light box wire harnesses Connect fan...
-
Page 10: Part Descriptions
PARTS NAME Light box Motorcycle handles Steering wheel Game-machine frame Game-Seat Control panel Seat access door Ticket door Coin door Access door Power inlet and filter... -
Page 11: Caution & Warning Stickers
CAUTION & WARNING STICKERS... -
Page 12: Settings & Options
Background Debugging—1 SETTINGS & OPTIONS Up and down buttons can directly adjust the game volume in the game interface. Press “ENTER”to enter the background debugging interface Choose the mode of operation. n.b. if you change to a different option, the bookkeeping data and previous settings will be erased and return to default --Set level for demo sound... - Page 13 SETTINGS & OPTIONS ------Set number of coins/pulses to start a game ------Set length of each game ----Set to time the boss will enter the game. only for single player mode ------Set the number of hits the player needs to defeat the boss ------Number of points the player achieves when beating the boss -----Set the time given to the player to select a link play game (2 player) ------Set the time given to the player to select a level...
-
Page 14: B Ookkeeping
OKKEEPING --- Clear current credits on game owed ---Clear tickets owed ---Clear gifts ---Clear all ranking data (leaderboard) ---Clear all accounting data (ticets, coins, gifts) — Clear all data ---Go back to last page INPUT/OUTPUT TESTS Operate game hardware to check input response to io system Select output device to test ERROR CODES Out of tickets / gifts will be displayed on screen... -
Page 15: Controller Mechanism
CONTROLLER MECHANISM Spare parts H R-0 1 HR-04 steeri ng lock wheel sensor HR -02 H R-0 5 st eering W arn ing sp ring p las tic HR-03 H R-0 6 start button f use - 3A... -
Page 16: Wiring Diagram
WIRING DIAGRAM... -
Page 17: Design Related Parts
PRINTING PATTERN Light box right character Left character Start button artwork Speedometer artwork Warning plastic Seat door artwork seat edge Pattern... - Page 18 Spare parts lists Part NO. Parts name pictures HR-01 steering wheel sensor HR-02 steering spring HR-03 start button & Switch HR-04 lock HR-06 Bike handle grips HR-07 power supply HR-08 PC Fan HR-09 IO board...
- Page 19 HR-10 computer HR-11 screen HR-12 seat cover HR-13 steering wheel Column（the car) HR-14 steering wheel Column (the bike)
