Sega STAR WARS RACER ARCADE Deluxe Version Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

www.seuservice.com

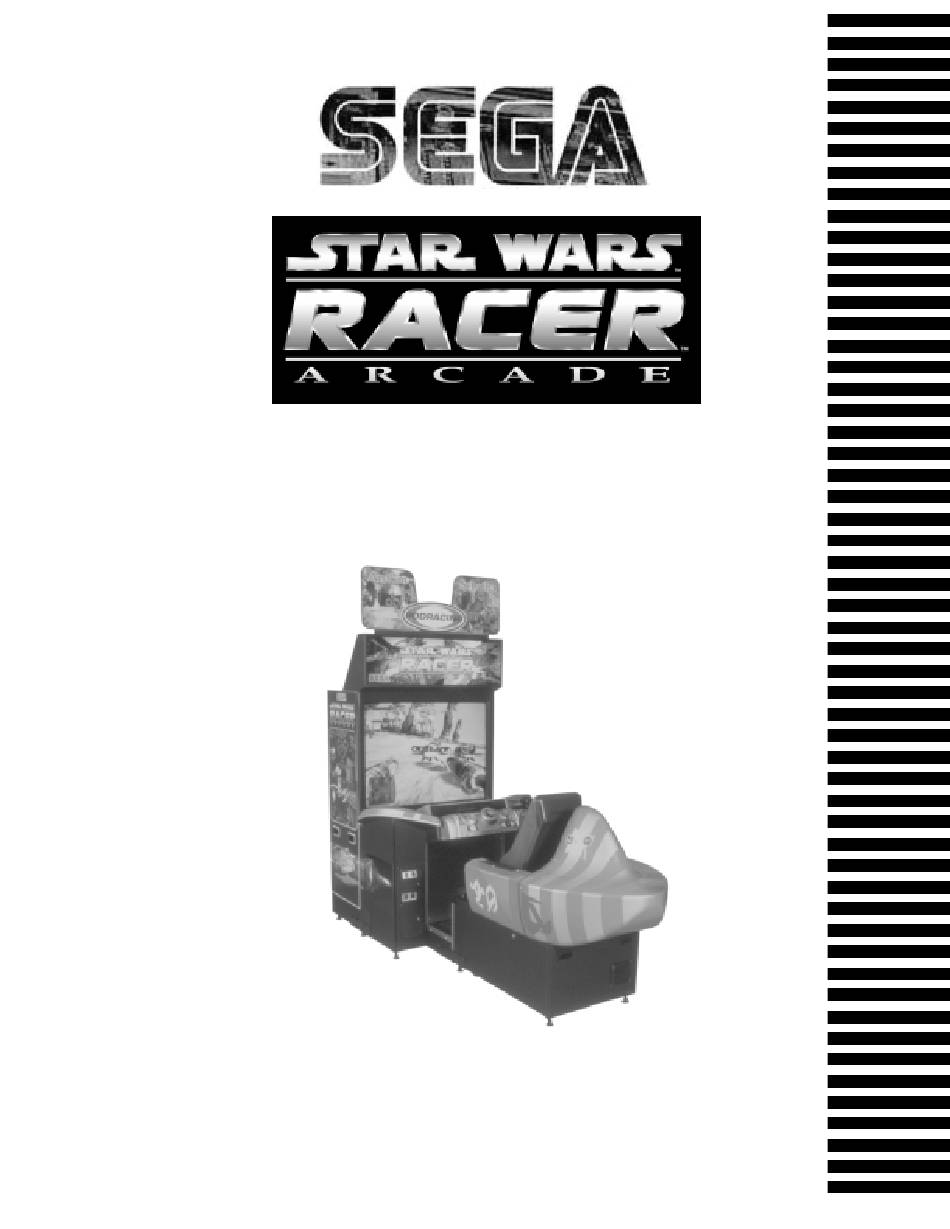

1ST PRINTING JULY 01
Deluxe Version
OWNER'S MANUAL
SEGA ENTERPRISES, INC. USA
MANUAL NO. 420-6575-01

Advertisement

Table of Contents
loading

Related Manuals for Sega STAR WARS RACER ARCADE Deluxe Version

Summary of Contents for Sega STAR WARS RACER ARCADE Deluxe Version

  • Page 1 1ST PRINTING JULY 01 Deluxe Version OWNER’S MANUAL SEGA ENTERPRISES, INC. USA MANUAL NO. 420-6575-01...
  • Page 2 VISIT OUR WEBSITE!
  • Page 3 BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: To maintain the safety: To ensure the safe usage of the product, be sure to read the following before using the product. The following instructions are intended for the users, operators and the personnel in charge of the operation of the product. After carefully reading and sufficiently understanding the warning displays and cautions, handle the product appropriately.
  • Page 4 SEGA shall not be held responsible for any accidents, compensation for damage to a third party, resulting from the specifications not designated by SEGA.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: TABLE OF CONTENTS INTRODUCTION OF THE OWNER’S MANUAL 1. HANDLING PRECAUTIONS ..................2. PRECAUTIONS CONCERNING INSTALLATION LOCATION ........2 - 3 3. OPERATION ........................4 - 6 4.

  • Page 6: Introduction Of The Owners Manual

    Indicates that mishandling the product by disregarding this display can cause the STOP product's intrinsic performance not to be obtained, resulting in malfunctioning. I M PORTANT SEGA ENTERPRISES, INC. (U.S.A.)/CUSTOMER SERVICE 45133 Industrial Drive, Fremont, California 94538, U.S.A. Phone : (415) 701-6580 Fax : (415) 701-6594...
  • Page 7 DEFINITION OF LOCATION MAINTENANCE MAN AND SERVICEMAN Non-technical personnel who do not have technical knowledge and expertise should refrain from performing such work that this manual requires the location's maintenance man or a serviceman to carry out, or work which is not explained in this manual.

  • Page 8: Handling Precautions

    • SEGA shall not be held responsible for damage, compensation for damage to a third party, caused by specification changes not designated by SEGA.

  • Page 9: Precautions Concerning Installation Location

    2. PRECAUTIONS CONCERNING INSTALLATION LOCATION This product is an indoor game machine. Do not install it outside. Even indoors, avoid installing in places mentioned below so as not to cause a fire, electric shock, injury and or malfunctioning. Places subject to rain or water leakage, or places subject to high humidity in the proximity of an indoor swimming pool and or shower, etc.
  • Page 10 To avoid machine malfunctioning and a fire, do not place any obstacles near the ventilation opening. SEGA shall not be held responsible for damage, compensation for damage to a third party, resulting from the failure to observe this instruction.

  • Page 11: Operation

    3. OPERATION PRECAUTIONS TO BE HEEDED BEFORE STARTING THE OPERATION To avoid injury and trouble, be sure to constantly give careful attention to the behavior and manner of the visitors and players. In order to avoid accidents, check the following before starting the operation: To ensure maximum safety for the players and the customers, ensure that where the product is operated has sufficient lighting to allow any warnings to be read.
  • Page 12 To avoid injury, be sure to provide sufficient space by considering the potentially crowded situation at the installation location. Insufficient installation space can cause making bodily contact with each other, hitting accidents, and or trouble between customers. PRECAUTIONS TO BE HEEDED DURING OPERATION (PAYING ATTENTION TO CUSTOMERS) To avoid injury and trouble, be sure to constantly give careful attention to the behavior and manner of the visitors and players.
  • Page 13 Caution lookers-on so as not to touch the operating unit while in play. Failure to observe this may cause bodily contact with the player and trouble between the customers. Caution the player so as not to hold a child in her/his lap to play.

  • Page 14: Name Of Parts

    4. NAME OF PARTS BILLBOARD FRONT CABI CONTROL PANEL PTV BASE AC UNIT REAR CABI FIG. 4 a OVERVIEW COIN CHUTE DOOR CASHBOX DOOR SIDE DOOR FIG. 4 b TABLE 4 Width Length Height Weight 1,140 mm X 555 mm 1,670 mm 112 kg PTV BASE...

  • Page 15: Accessories

    5. ACCESSORIES When transporting the machine, make sure that the following parts are supplied. TABLE 5 ACCESSORIES DESCRIPTION KEY MASTER KEY (2) OWNERS MANUAL 220-5576 (2) Part No. (Qty.) 420-6575-01 (1) For the CASHBOX DOOR For opening/closing Note the doors Figures If Part No.
  • Page 16 STATICIDE (300ML) FLEX TUBE 090-0074 (1) 310-5285-290100 (1) Articles of consumption For communication play, (see below). refer to Section 18. ASSY FIBER CABLE 600-6275-0700 (2) For communication play, refer to Section 18. Periodically once every two months as standard, apply the "STATICIDE"...
  • Page 17 HOW TO USE THE CARTON BOX When asking for the replacement or repair of the product's Game Board STOP (SEGA HIKARU), be sure to put the Game Board together with the Shield Case in a Carton Box. Otherwise, the request is not acceptable. IMPORTANT...

  • Page 18: Assembling And Installation

    6. ASSEMBLING AND INSTALLATION Perform assembly work by following the procedure herein stated. Failing to comply with the instructions can cause electric shock hazard. Perform assembling as per this manual. Since this is a complex machine, erroneous assembling can cause an electric shock, machine damage and or not functioning as per specified performance.

  • Page 19: Accessories

    The master key (accessories) in addition to the tools such as a Phillips type screwdriver, wrench, socket wrench and Ratchet Handle are required for the assembly work. Phillips type screwdriver 24mm WRENCH (for M16 hexagon bolt) SOCKET WRENCH, (for M4 hexagon nut,M8 hexagon bolt) RATCHET HANDLE KEY MASTER ASSEMBLING THE PTV...
  • Page 20 ASSEMBLING THE CABINET SCREW (2) black M5 X 20, w/flat & spring washers BILLBOARD Connect the Connector. TRUSS SCREW (4) M4 X 16, chrome, flat washer used. FLOOR LID FRONT CABI HEXAGON BOLT (4) black M8 X 35, w/spring washer, flat washer used.
  • Page 21 Join the FRONT CABI and the PTV Base and secure by installing the Joint Brackets to the cabinet left and right. Secure the Joint Brackets with the 4 Hexagon bolts for each. HEXAGON BOLT (4 each) black M8 X 35, w/spring washer, flat washer used.
  • Page 22 Connect a Billboard's connector to the terminal board on the PTV ceiling. While supporting the Billboard as is inclined, connect the connector. Be sure to use a step to connect the connector while 2 persons supporting the Billboard. Insert the Billboard from the rear as shown and secure with the 2 screws.
  • Page 23 Perform wiring connection between the PTV and the FRONT CABI. Connect the connectors from the FRONT CABI for the main supply and for the reflection signal to each of the 2 connectors of the connector panel on the PTV front. The inserting angle for each connector is predetermined.
  • Page 24 Join the FRONT CABI and the REAR CABI in the manner as inserting the REAR CABI's Joint Bracket Center under- neath the FRONT CABI. At this time, use care so as not to damage wiring. PHOTO 6. 2 f Fasten the 6 Hexagon bolts inside the Floor Lid to secure the joint portion of the FRONT CABI and the REAR CABI.
  • Page 25 Perform wiring connection between the FRONT CABI and the REAR CABI. Connect the wiring connector inside the FRONT CABI to the connector on the connector panel of the REAR CABI. The inserting angle for each connector is predetermined. To avoid damaging the connector, be sure to check the correct direction for inserting the connector.
  • Page 26 INSTALLING THE POP Peel off the double-sided adhesive tape on the POP reverse and stick the POP Holder. By using the 3 Truss screws, secure the POP Holder to the Billboard ceiling. POP HOLDER TRUSS SCREW (3) black M4 X 8 Double-sided adhesive tape FIG 6.
  • Page 27 SECURING IN PLACE (ADJUSTER ADJUSTMENT) Make sure that all of the adjusters are in contact with the floor. If they are not, the cabinet can move and cause an accident. This product has 12 casters (4 for PTV base, 4 for Front Cabi, 4 for Rear Cabi) and 10 Adjusters (4 for PTV base, 2 for Front Cabi, 4 for Rear Cabi).
  • Page 28 POWER SUPPLY CONNECTION Be sure to independently use the power supply socket outlet equipped with an Earth Leakage Breaker. Using a power supply without an Earth Leakage Breaker can cause a fire when electric leakage occurs. Ensure that the "accurately grounded indoor earth terminal" and the earth wire cable are available (except in the case where a power cord plug with earth is used).
  • Page 29 Connect the Earth Wire Connect one end of the earth wire to the AC to the Earth Terminal. Unit earth terminal, and the other end to the indoor earth terminal. The AC Unit earth terminal has a Bolt and Nut combination. Take off the Nut, pass the end of earth wire through the Bolt, and fasten the Nut.
  • Page 30 TURNING POWER ON Turn the AC Unit Main SW on to turn on power. When power is turned on, the fluorescent lamp inside the Billboard lights up. The screen displays the system start-up mode and then proceeds to the ADVERTISE mode. Simultaneously at this time, sound is emitted from the speakers in the front, left and right of the seat.
  • Page 31 ASSEMBLING CHECK In the TEST MODE, ascertain that the assembly has been made correctly and IC BD. is satisfactory (refer to Section 9). In the test mode, perform the following test: (1) MEMORY TEST RAM TEST Selecting the RAM TEST on the system test IC15 IC16 IC17S IC18S GOOD mode menu screen causes the on-board memory IC22 IC23 IC24S IC25S GOOD...
  • Page 32 (3) SOUND TEST In the system test mode, selecting SOUND TEST causes the screen (on which sound SOUND TEST related BD and wiring connections are tested) to be displayed. MAIN SPEAKER LEFT Check if the sound is satisfactorily emitted MAIN SPEAKER RIGHT OPTION SPEAKER LEFT from each speaker and the sound volume is OPTION SPEAKER RIGHT...
  • Page 33 (5) OUTPUT TEST OUTPUT TEST Select OUTPUT TEST from the Menu screen in the Game Test Mode to cause the screen (on which output unit such as lamps START LAMP and wiring connections are tested) to appear. BOOST LAMP BOOST LOCK Ensure that the output unit functions >...

  • Page 34: Precautions To Be Heeded When Moving The Machine

    7. PRECAUTIONS TO BE HEEDED WHEN MOVING THE MACHINE When moving the machine, be sure to unplug the power plug. Moving the machine with the plug as is inserted can damage the power cord and cause fire and electric shock hazards. When moving the machine on the floor, retract the Adjusters and ensure that Casters make contact with the floor.
  • Page 35 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3...

  • Page 36: Contents Of Game

    8. CONTENTS OF GAME The following explanations apply to the case the product is functioning satisfactorily. Should there be any moves different from the following contents, some sort of faults may have occurred. Immediately look into the cause of the fault and eliminate the cause thereof to ensure satisfactory operation.
  • Page 37 HOW TO PLAY Get in the seat. To adjust the seat position forward and rearward, pull the lever under the seat in the right-hand side to release the seat lock. The game starts upon inserting the one play-equivalent number of coins. SELECT SCREEN For Communication Play: When the communication play is set effective, the monitor screen remains stationary for...
  • Page 38 Select one from among the 4 vehicles. Select the vehicle with the SELECT button and press the START button to decide. The time limit for selecting the vehicle is displayed at the upper right screen. There are only 2 types of vehicles usable at the time of shipment. However, by fulfilling the requirements described later in this manual, the remaining 2 vehicles can be available.
  • Page 39 COURSES and VEHICLES There are 4 courses in this product. [BANTHA TRACKS] EASY The actual course shown in the motion picture has been simplified and shortened for the beginners. The huge rocks rise out of the stretched wilderness. [SMUGGLER'S COVE] NORMAL The beautiful scenery of a shoal and land covered with moss can be seen in this course.
  • Page 40 The THROTTLE LEVER left & right also function as an accelerator and steering. Incline the THROTTLE LEVER forward to gain speed. To reduce the speed, pull the THROTTLE LEVER toward you. To turn right, incline the left Lever forward and pull the right Lever toward you.
  • Page 41 GAME SCREEN The remaining time Position During communication play: Lap Counter (Displays the lap) your position / total numbers of vehicles in play During single play mode: your position / 12 Total time & Lap time The remaining BOOST Engine damage gauge Damage warning lamp The current speed The rival position marker...
  • Page 42 NAME ENTRY The NAME ENTRY screen where you can input your name up to 3 letters will be displayed on the following conditions: (1) In 1P mode, when the player's record is excellent. (after race) (2) In 1P mode, when the player is finished within the first to the third position. (after race) (3) Communication (vs.) play is formed.
  • Page 43 You can skip this screen by pressing the START button. The Home Page has been open since May 2000. Operation and maintenance in the second year and thereafter are undecided, however. URL: http://www.sega.co.jp/racer/ FLOW CHART Waiting for a participant...

  • Page 44: Explanation Of Test And Data Display

    SEGA HIKARU GAME BOARD is used for the product. The system of this game board allows another game to be played by replacing the ROM Board Case mounted on the SEGA HIKARU CASE. As such, the Test Mode of this system consists of the System Test Mode for the system to execute SELF-TEST, COIN ASSIGNMENTS, etc.
  • Page 45 TABLE 9 EXPLANATION OF TEST MODE REFERENCE ITEMS DESCRIPTION SECTIONS INSTALLATION When the machine is installed, perform the following: OF MACHINE 1. Check to see that each setting is as per standard setting made at 9-2 F,G, 9-3 D the time of shipment. 2.

  • Page 46: Switch Unit And Coin Meter

    9 - 1 SWITCH UNIT AND COIN METER Never touch places other than those specified. Touching places not specified can cause electric shock and short circuit hazards. Adjust to the optimum sound volume by considering the environmental STOP requirements of the installation location. If the COIN METER and the game board are electrically disconnected, game IMPORTANT play is not possible.
  • Page 47 COIN METER Open the Cashbox Door by using the key to have the Coin Meter appear underneath the Cashbox. COIN METER FIG. 9. 1 b www.seuservice.com...

  • Page 48: System Test Mode

    9 - 2 SYSTEM TEST MODE A. SYSTEM TEST MODE MENU Press TEST Button to enter the TEST MODE, and the following Menu screen will be displayed. Press SERVICE Button to move the SYSTEM MENU arrow (>) to the desired item and X X X X X VERSION select with TEST Button.
  • Page 49 I/O Board connected to INPUT TEST Game Board is displayed > EXIT and INPUT TEST can be NODE performed. Execute EXIT NAME SEGA ENTERPRISES,LTD.;I/O BD JVS; to return to the MENU 837-13551 ;Ver1.00;98/10 screen. CMD VER JVS VER COM VER SWITCH...
  • Page 50 D. SOUND TEST Sound Output can be performed and each Speaker can be checked. Select the desired item and press TEST SOUND TEST Button, and sound is emitted from the corresponding Speaker. MAIN SPEAKER LEFT MAIN SPEAKER RIGHT The OPTIONAL SPEAKER LEFT and OPTION SPEAKER LEFT RIGHT function the same.
  • Page 51 F. SYSTEM ASSIGNMENTS Performs setting for the whole system. Set each item in accordance with the cabinet. Use the items except ADVETISE SOUND and COMMUNICATION MODE as they are at the time of shipment. To change setting, bring the arrow (>) to the desired item with the SERVICE button and press the TEST button.
  • Page 52 COMMUNICATION MODE is for communication play setting. Select from among MASTER, SLAVE, NO LINK, and RELAY. When performing setting for communication play, be careful of the following points. MASTER : Set only one of the linked machine to MASTER for communication play. SLAVE : Set the other linked machines to SLAVE for communication play.
  • Page 53 G. COIN ASSIGNMENTS In this mode, the setting of incremental credit increase as against coin insertion can be changed. This test consists of 3 screens, and the following is the first screen. The setting done in the first screen will be stored when exited. COIN ASSIGNMENTS COIN CHUTE TYPE COMMON...
  • Page 54 MANUAL SETTING When MANUAL SETTING is selected in the first screen, the following second screen appears. COIN ASSIGNMENTS MANUAL SETTING COIN TO CREDIT BONUS ADDER COIN CHUTE #1 MULTIPLIER 1 COINCOUNT AS 1COIN COIN 1 2 3 4 5 6 7 8 9 CREDIT 1 2 3 4 5 6 7 8 9 COIN CHUTE #2 MULTIPLIER 1 COINCOUNT AS...
  • Page 55 TABLE 1 COIN/CREDIT SETTING NAME OF SETTING FUNCTIONING OF COIN CHUTE #1 FUNCTIONING OF COIN CHUTE #2 SETTING #1 1 COIN 1 CREDIT 1 COIN 1 CREDIT SETTING #2 1 COIN 2 CREDITS 1 COIN 1 CREDIT SETTING #3 1 COIN 3 CREDITS 1 COIN 1 CREDIT...
  • Page 56 Table 2: COIN/CREDIT SETTING (COIN CHUTE INDIVIDUAL TYPE) NAME OF SETTING EACH SEAT'S COIN CHUTE NAME OF SETTING EACH SEAT'S COIN CHUTE SETTING #1 1 COIN 1 CREDIT SETTING #21 5 COINS 1 CREDIT SETTING #2 1 COIN 2 CREDITS SETTING #23 2 COINS 1 CREDIT SETTING #3...
  • Page 57 SEQUENCE5 *CREDIT SEQUENCE6 *CREDIT SEQUENCE7 *CREDIT SEQUENCE8 *CREDIT > EXIT [ X X X X X X X X X X X X X ] [ SEGA ENTERPRISES,LTD. DESCRIPTION OF SEQUENCE SEQ1 **** SEQ2 **** SEQ3 **** SEQ4 **** SEQ5 ****...
  • Page 58 H. BOOKKEEPING This allows such data as operating time/No. of coins inserted/ No. of credits to be checked, etc. This test consists of 2 screens. Pressing SERVICE Button causes screen to be changed. Press TEST Button to return to the MENU screen. On the first screen, such data as total time, coin, and credit are displayed.
  • Page 59 I. BACKUP RAM CLEAR Clears contents of BOOKKEEPING, operating time, coin/credit data, number of games played, etc. BACKUP RAM CLEAR YES (CLEAR) > NO (CANCEL) SELECT WITH SERVICE BUTTON PRESS TEST BUTTON Selecting YES clears the aforementioned data. Select NO and press TEST Button to have the MENU mode return without clearing data.
  • Page 60 IC No., TYPE, BYTE, and WORD refers to the check sum of each unit. Press TEST Button to return to MENU mode. ROMBD TEST [ X X X X X X X X X X X X X ] [ SEGA ENTERPRISES,LTD. NO. TYPE RESULT NO. TYPE RESULT IC29 **M ----...

  • Page 61: Game Test Mode

    SELECT WITH SERVICE BUTTON PRESS TEST BUTTON L. GAME TEST MODE Enters the TEST Mode of the game connected to SEGA HIKARU BD. The TEST Mode includes INPUT Test, GAME ASSIGNMENTS such as game difficulty, etc. Refer to 9-3 for details.
  • Page 62 9 - 3 GAME TEST MODE A. GAME MENU According to the COMMUNICATION MODE setting in the SYSTEM ASSIGNMENTS screen in the SYSTEM TEST MODE, the display items in the GAME TEST MENU vary. In the case as the COMMUNICATION MODE is set to other than RELAY: STAR WARS RACER ARCADE GAME MENU INPUT TEST...
  • Page 63 B. INPUT TEST INPUT TEST BOOST BRAKE LEFT BUTTON RIGHT BUTTON START SERVICE TEST LEFT LEVER RIGHT LEVER PRESS TEST AND SERVICE BUTTON TO EXIT Performs test for the input units. Periodically perform test in this screen. While each button on the cabinet is pressed down, if the display goes ON, operation is satisfactory.
  • Page 64 C. OUTPUT TEST OUTPUT TEST START LAMP BOOST LAMP BOOST LOCK > EXIT SELECT WITH SERVICE BUTTON PRESS TEST BUTTON Operation status of each output unit can be checked. Select an item with the SERVICE button and press the TEST button. Each time you press the TEST button, ON/OFF display alters. If the lamps for the START and the BOOST buttons go on when ON is displayed, operation is satisfactory.
  • Page 65 D. GAME ASSIGNMENTS According to COMMUNICATION MODE setting in the SYSTEM ASSIGNMENT screen in the SYSTEM TEST MODE, the display items in the GAME ASSIGNMENTS vary. In the case the cabinet is set to MASTER. GAME ASSIGNMENTS DEFAULT VIEW DIFFICULTY NORMAL SEAT NUMBER CONTROL PANEL...
  • Page 66 In the case the cabinet is set to NO LINK. GAME ASSIGNMENTS DEFAULT VIEW DIFFICULTY NORMAL CONTROL PANEL DELUXE > EXIT SELECT WITH SERVICE BUTTON PRESS TEST BUTTON The in-game default view can be set in the DEFAULT VIEW. Select either POD (Subjective view) or REAR (Objective view from the rear).
  • Page 67 E. BOOKKEEPING The BOOKKEEPING displays the data of gameplay time, the frequencies of the vehicles and the course selection, etc. in a total of 2 pages. NUMBER OF GAMES: BOOKKEEPING 1/2 Total number of plays. NUMBER OF GAMES PLAY TIME 0D 0H 0M 0S PLAY TIME: AVERAGE PLAY TIME...
  • Page 68 F. CALIBRATION TEST The volume values for the Throttle Levers left & right can be calibrated. When operation of the Lever is not satisfactory, adjust the volume value in this screen. CALIBRATION TEST LEFT VALUE RIGHT VALUE CURRENT CURRENT PRESS SERVICE BUTTON TO START CALIBRATION PRESS TEST BUTTON TO EXIT When performing calibration, first press the SERVICE button.
  • Page 69 G. BACKUP DATA CLEAR BACKUP DATA CLEAR > NO SELECT WITH SERVICE BUTTON PRESS TEST BUTTON Clears the contents of the BOOKKEEPING. Bring the arrow to "YES" with the SERVICE button and press the TEST button. "COMPLETED" is displayed after the data have been cleared.

  • Page 70: Control Panel

    10. CONTROL PANEL Before starting to work, ensure that the Power SW is OFF. Failure to observe this can cause electric shock or short circuit. Use care so as not to damage wirings. Damaged wiring can cause electric shock or short circuit. Do not touch undesignated places.

  • Page 71: Removing The Control Panel Cover

    10 - 1 REMOVING THE CONTROL PANEL COVER In order to check the control panel inside, first remove the control panel cover. Turn power off. Remove the GRIP from the Lever left. Take out a screw for each to remove the GRIP, the GRIP END, and the GRIP PIN from the Lever.
  • Page 72 Take out the 4 truss screws securing the ASSY START SW. Handle with care so as not to damage the wiring inside the unit. By using care, pull out the WIRE CONNECTOR from the ASSY START SW. ASSY START SW Disconnect the connector.

  • Page 73: Volume Adjustment/Replacement

    10 - 2 VOLUME ADJUSTMENT/REPLACEMENT In case the operability of the Lever left and right is poor and performing CALIBRATION in the test mode does not improve the situation, the causes may be the failure of the Volume Gear's engagement in the ASSY LEVER MECHA inside the control panel and or Volume malfunctioning.
  • Page 74 REPLACEMENT If the Volume is in a status as per FIG.10.2, moving the Lever fully forward and backward does not damage parts, as the value does not exceed theVolume's movable range. Turn off power and remove the CONTROL PANEL COVER (10-1). Disconnect the connector from the VOLUME to be replaced.

  • Page 75: Greasing

    10 - 3 GREASING Do not touch the solenoid. The solenoid can be very hot. Be sure to use the designated grease. Using undesignated grease can cause parts damage. STOP Do not apply greasing to undesignated places. Failure to observe this can cause malfunctioning or quality deterioration of parts.

  • Page 76: Greasing

    APPLY GREASING TO THE BOOST BUTTON PHOTO 10. 3 c INSIDE SPRING INSIDE CONTACT FACE PORTION SPRING INSIDE SPRING FIG. 10. 3 www.seuservice.com...

  • Page 77: Coin Selector

    11. COIN SELECTOR HANDLING THE COIN JAM If the coin is not rejected when the REJECT button is pressed, open the coin chute door and open the selector gate. After removing the jammed coin, put a normal coin in and check to see that the selector correctly functions.
  • Page 78 www.seuservice.com...
  • Page 79 www.seuservice.com...
  • Page 80 OPTIONAL DOLLAR BILL ACCEPTOR THE COIN DOOR ASSEMBLY USED ON STAR WARS RACER ARCADE DX TYPE COMES EQUIPPED TO ACCEPT A DOLLAR BILL ACCEPTOR. ALL NEEDED WIRING CONNECTIONS ARE CONVIENENTLY LOCATED INSIDE THE GAME FOR THIS APPLICATION. THE COIN DOOR CAN ACCCOMMODATE THE FOLLOWING VALIDATOR(S): FORWARD-MOST Mars 2000 series...

  • Page 81: Projector

    12. PROJECTOR Since the Projector has been adjusted at the time of shipment, avoid making further adjustments without good reason. The Projector is subject to color deviation due to Convergence deviation caused STOP by the geomagnetism at the installation location and peripheral magnetic field. After the installation of machine, and before commencing operation, check for IMPORTANT Convergence deviation and if deviated, make adjustments.

  • Page 82: Adjustment Of Projector

    12 - 2 ADJUSTMENT OF PROJECTOR SETTING THE INTERFACE In this product, set to INPUT LEVEL: 0.7V and IMPEDANCE: 75Ω. Failure to STOP observe this can cause CRT membrane to burn or Shutdown device to function resulting in power off. IMPORTANT The Projector's Connector Panel contains the Interface setting SW.
  • Page 83 AUTOMATIC COLOR MATCHING The Projector may be subject to color deviations affected by earth magnetism, the building steel frames, etc. When the Projector is initially installed or the Projector's installation position is changed, have the color matching performed automatically. Keep pressing the P button (red) for approximately 3 seconds to have the ensuing movements performed automatically.
  • Page 84 ADJUSTING THE ON-SCREEN CONTRAST Although the on-screen picture quality has been adjusted at the time of shipment from the factory, the on-screen contrast can be readjusted if desired. When the Game Board is replaced, readjustment may be necessary. Changing the CONTRAST causes the light and shade of the on-screen images to be changed.
  • Page 85 ADJUSTING THE SCREEN BRIGHTNESS Although the on-screen picture quality has been adjusted at the time of shipment from the factory, readjustment can be made if desired. When the Game Board is replaced, readjustment may be necessary. Changing the BRIGHTNESS causes the brightness of the on-screen images of black portions to be changed.
  • Page 86 ADJUSTING THE ON-SCREEN DISPLAY POSITION Although the on-screen display position (H. POSI, V. POSI) has been adjusted at the time of shipment from the factory, readjustment can be made if desired. When the Game Board is replaced, readjustments may be necessary. Press either PIC - ADJ button.
  • Page 87 ADJUSTING THE SCREEN SIZE Although the on-screen size (H. SIZE, V. SIZE) has been adjusted at the time of shipment from the factory, readjustment can be made if desired. When the Game Board is replaced, readjustments may be necessary. Press either PIC - ADJ button.
  • Page 88 CONVERGENCE ADJUSTMENT (manual color matching) To avoid circuitry malfunctioning due to electrical load increase, never utilize CONVERGENCE ADJUSTMENT (Line Convergence Adjustment in particular) for adjusting screen size changes. There is no means to restore the Convergence Adjustment data once stored, to its original state.
  • Page 89 STATIC CONVERGENCE ADJUSTMENT In the static convergence adjustment, each of red and blue images is comprehensively moved to and superimposed on the green color. If automatic color matching function is not sufficiently satisfactory, perform this adjustment. Be sure to perform automatic color matching before starting the above adjustment.
  • Page 90 POINT CONVERGENCE ADJUSTMENT In the POINT CONVERGENCE adjustment, each of red, green and blue images is partially moved for color matching. The adjustment may be necessary when the Game Board is replaced or changed, or screen size is changed. Be sure to perform automatic color matching before starting the adjustment.
  • Page 91 LINE CONVERGENCE ADJUSTMENT In the LINE CONVERGENCE ADJUSTMENT, the adjustment point of the column line (verti- cal) or row line (horizontal) is comprehensively moved for color matching. It is convenient to utilize this adjustment when the color of the column line or row line is uniformly deviated. Keep pressing the TEST button for approximately 3 seconds.

  • Page 92: Replacing The Flourescent Lamp, And Lamps

    13. REPLACING THE FLUORESCENT LAMP, AND LAMPS When performing work, be sure to turn power off. Working with power on can cause electric shock and short circuit hazards. The Fluorescent Lamp, when it gets hot, can cause burn. Be very careful when replacing the Fluorescent Lamp.
  • Page 93 START BUTTON Turn power off. Take out the 4 screws to remove the ASSY START SW from the CONTROL PANEL. The wiring connection is inside the ASSY START SW. Use care so as not to damage wiring. The SW PLATE is a plastic-made part. Handle with care. Carefully pull out and remove the wire connector of the ASSY START SW.

  • Page 94: Periodic Inspection Table

    14. PERIODIC INSPECTION TABLE The items listed below require periodic check and maintenance to retain the performance of this machine and to ensure safe business operation. When handling the controller, the player will be in direct contact with it . In order to always allow the player to enjoy the game, be sure to clean it regularly.
  • Page 95 3 months by using NOK KLUBER L60 or GREASE MATE SEGA PART No. 090-0066. After greasing, move the Seat a few times forward and backward so as to allow the grease to be applied all over uniformly.

  • Page 96: Troubleshooting

    15. TROUBLESHOOTING In order to prevent electric shock and short circuit, be sure to turn power off before performing work. Be careful so as not to damage wirings. Damaged wiring can cause electric shock or short circuit. After removing the cause of the functioning of the Circuit Protector, reinstate the Circuit Protector.
  • Page 97 TABLE 15 b PROBLEMS CAUSE COUNTERMEASURES No sound is Sound volume adjustment is not Adjust sound volume (see Sec. 9). emitted. appropriate. Board and Amplifier malfunctioning. Perform the sound test and confirm (see Sec. 9). Operability of the Deviation of the volume value. Adjust the volume value in the Test mode.

  • Page 98: Game Board

    Case when requesting for the replacement or repair. Transporting the Game Board in an undesignated status for replacement/repair is unacceptable. IMPORTANT In this manual, how to remove the Game Board is explained for convenience. However, this work should be performed by SEGA SERVICEMAN. www.seuservice.com...

  • Page 99: Removing The Game Board

    16 - 1 REMOVING THE GAME BOARD The REAR CABI inside is separated into the upper and the lower sections. The ASSY MAIN BOARD that carries the Shield Case containing the GAME BOARD on it is on the upper section. Turn off power.
  • Page 100 Disconnect the connector. PHOTO 16. 1 a Disconnect the connector. OPTIC FIBER CABLE (2) PHOTO 16. 1 b D-SUB 15P CONNECTOR (1) USB SHAPE CONNECTOR (1) Remove the ASSY MAIN BOARD DX from the REAR CABI. Since the ASSY MAIN BOARD is heavy, in order to protect wiring, be sure to perform work by 2 or more workers.
  • Page 101 Take out the 3 screws to remove the Shield Case Lid, and the Game Board appears. However, those other than Sega Serviceman should never perform this work. Take out the 2 screws to remove the 2 Shield Case Brackets from the Shield Case. Pack up the Shield Case with packing materials, put it into a carton box, and request service.

  • Page 102: Composition Of Game Board

    FLANGE NUT (8) SAMURAI COMMUNICATION BD M3,plastic washer used. 837-13404 SAMURAI EXTEND SOUND BOARD 837-13629 ROM BD POD 834-14002 MAIN BD SEGA HIKARU 834-13821 BD TRAY FOR SEGA HIKARU 105-5380 FIG. 16. 2 MAIN BD JUMPER SETTING JP10 1-2 JP11 2-3 www.seuservice.com...

  • Page 103: Design Related Parts

    17. DESIGN RELATED PARTS For the Warning Display stickers, refer to Section 1. www.seuservice.com...

  • Page 104: Communication Play

    18. COMMUNICATION PLAY For this game, up to 4 machines can be connected to allow up to 4 players to play simultaneously. In this instance, connecting the communication cable and setting for the communication play are required. 18 - 1 INSTALLATION PRECAUTIONS Before starting to work, ensure that the Power SW is OFF.

  • Page 105: Connecting The Communiction Cable

    DISTANCE BETWEEN MACHINES Be sure to secure space in excess of 70cm between machines. 70cm 70cm FIG. 18. 1 18 - 2 CONNECTING THE COMMUNICATION CABLE Link the number of machines necessary for communication play by connecting the Communication Cable to the game board of the machine for each. Inside the REAR CABI the communication cable has been wired to the Connector Panel from the GAME BD.
  • Page 106 Remove the Connector Lid from the side of the FRONT CABI by taking out the 2 truss screws. TRUSS SCREW (2) black M4 X 20 CONNECTOR LID PHOTO 18. 2 a Attach Connector 29 to the both ends of Flex Tube by inserting the Flex Tube end into the Connector 29.
  • Page 107 Pass the Communication Cable LOCK NUT through the Flex Tube. Remove the Lock Nut from the Connector 29. Install the Connector 29 into the Connector Bracket hole and tighten the Lock Nut. PHOTO 18. 2 b CONNECTOR BRACKET Pass the Communication Cable through the square hole of the side of the FRONT CABI and perform wiring so as to allow the connector head to connect to the Connector Panel of the REAR CABI.
  • Page 108 OPTIC FIBER CABLE BLACK FIG. 18. 2 b www.seuservice.com...
  • Page 109 By using the 2 truss screws which were used for securing the Connector Lid, secure the Connector Bracket to the side of the FRONT CABI. TRUSS SCREW (2) black M4 X 20 PHOTO 18. 2 d Re-join the "PTV BASE, PTV, BILLBOARD", "FRONT CABI", and "REAR CABI." When performing wiring connection between the FRONT CABI and the REAR CABI, connect the 2 Communication Cables to the Connector Panel.

  • Page 110: Setting For Communication Play

    18 - 3 SETTING FOR COMMUNICATION PLAY During communication play, if the test mode is not finished within 3 minutes on STOP all the linked machines, the NETWORK CHECK cannot be performed, causing NETWORK ERROR. IMPORTANT Change the game setting for each seat in a manner so as to meet communication play. If the setting is not correct, communication play cannot be played.

  • Page 111: Setting For Communication Play

    SETTING FOR COMMUNICATION PLAY Turn the linked machines' power on. Cause all of the machines to enter the test mode. Select the SYSTEM ASSIGNMENTS. Perform the COMMUNICATION MODE setting in the SYSTEM ASSIGNMENTS screen. Set one of the machines to MASTER and all others to SLAVE. Set to RELAY for exclusive use of LIVE Monitor.

  • Page 112: Parts List

    19. PARTS LIST www.seuservice.com...
  • Page 113 1 TOP ASSY POD DX (D-1/2) www.seuservice.com...
  • Page 114 CAUTION INSTR COP U/R 421-6690-03 STICKER 220V AC 220V AREA 421-6690-05 STICKER 240V AC 240V AREA 421-6690-06 STICKER 110V AC 110V AREA 421-6690-04 STICKER 230V AC 230V AREA 421-6690-01 STICKER 120V AC 120V AREA 421-6119-91 STICKER FCC 421-6120-92 STICKER SEGA USA www.seuservice.com...
  • Page 115 2 ASSY PTV (POD-0500) ITEM NO. PART NO. DESCRIPTION NOTE POD-0510 PTV W/STICKER POD MGL-1150 ASSY MASK POD-0520 ASSY BILLBOARD HOD-1101 PTV HOLDER RAL-0501 MASK HOLDER 000-T00525-0B M SCR TH BLK M5 X 25 068-552016-0B FLT WSHR BLK 5.5-20 X 1.6 000-P00520-WB M SCR PH W/FS BLK M5 X 20 000-F00412...
  • Page 116 3 ASSY W/STICKER POD (POD-0510) ITEM NO. PART NO. DESCRIPTION NOTE POD-0511 STICKER PTV SIDE L POD-0512 STICKER PTV SIDE R 200-5788-31 PROJECTION DSPL T 50TYPE 31K www.seuservice.com...
  • Page 117 4 ASSY MASK (MGL-1150) ITEM NO. PART NO. DESCRIPTION NOTE MGL-1102 TV MASK MGL-1151 SLIT PLATE MGL-1152 MASK SIDE HOLDER 012-F00408-0B TAP SCR #2 FH BLK 4 X 8 000-F00410 M SCR FH M4 X 10 www.seuservice.com...
  • Page 118 5 ASSY BILLBOARD (POD-0520) (D-1/2) www.seuservice.com...
  • Page 119 5 ASSY BILLBOARD (POD-0520) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE POD-0521 BILLBOARD BOX POD-0522 BILLBOARD PLATE POD DX POD-0523 BILLBOARD SASH 253-5457 FL HOLDER OTHERS Locally supplied. 421-7501-18 STICKER FL32W OTHERS Locally supplied. 440-WS0002XEG STICKER W POWER OFF ENG 440-WS0012XEG STICKER W HIGH TEMP ENG 390-6659-32EX...
  • Page 120 6 ASSY PTV BASE (POD-0550) ITEM NO. PART NO. DESCRIPTION NOTE POD-0551 PTV BASE SCR-1008 NUT PLATE FOR CASTER ARC-1006 LEG BRACKET 117-5233 PLATE LEG BRACKET BLACK POD-1008 NUT BRKT 601-9377 CASTER FAI=75 601-6224 CASTER 75 601-5699X LEG ADJUSTER BOLT M16 X 75 011-T03512 TAP SCR TH 3.5 X 12 030-000625-SB...
  • Page 121 7 ASSY FRONT CABI (POD-1000) (D-1/2) www.seuservice.com...
  • Page 122 7 ASSY FRONT CABI (POD-1000) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE POD-1001 ASSY SUBCABI FRONT POD-2000 ASSY CONTROL PANEL POD-4200 ASSY CONTROL BD DX POD-1018 SPEAKER HOLDER POD-1019 SPEAKER BRKT POD-1020 FRONT COVER 253-5417 CASH BOX LOW 421-8885 STICKER CAUTION FORK 130-5156 SPEAKER BOX 8 OHM 20W 000-T00430-0B...
  • Page 123 8 ASSY SUBCABI FRONT (POD-1001) (D-1/3) www.seuservice.com...
  • Page 124 8 ASSY SUBCABI FRONT (POD-1001) (D-2/3) ITEM NO. PART NO. DESCRIPTION NOTE POD-1002 FRONT CABINET POD-1003 FRONT LID POD-1004 SIDE LID POD-1005 STICKER FRONT L POD-1006 STICKER FRONT R POD-1007 STICKER SIDE LID POD-1008 NUT BRKT POD-1009 FRONT SASH L POD-1010 FRONT SASH R POD-1011...
  • Page 125 8 ASSY SUBCABI FRONT (POD-1001) (D-2/3) ITEM NO. PART NO. DESCRIPTION NOTE 000-T00430-0B M SCR TH BLK M4 X 30 068-441616-0B FLT WSHR BLK 4.4-16 X 1.6 000-P00520-W M SCR PH W/FS M5 X 20 000-T00416-0C M SCR TH CRM M4 X 16 050-F00400 FLG NUT M4 068-441616...
  • Page 126 9 METER UNIT (POD-1050) ITEM NO. PART NO. DESCRIPTION NOTE POD-1051 METER BRKT 421-9168-01 STICKER COIN METER HOT-1007 LID COIN CNTR OTHERS Locally supplied. 220-5643-01 MAG CNTR DC5V 6P WH MZ-674-D04 220-5617-01 MAG CNTR DC5V W/CONN 6P WH 000-P00308-W M SCR PH W/FS M3 X 8 OTHERS Locally supplied.
  • Page 127 10 SW UNIT (MOG-1110) ITEM NO. PART NO. DESCRIPTION NOTE INY-1181 SW BRKT 421-8911 STICKER SW UNIT 509-5028 SW PB 1M 220-5179 VOL CONT B-5K OHM 601-0042 KNOB 22 MM 310-5029-D20 SUMITUBE F D 20 MM 601-0460 PLASTIC TIE BELT 100 MM MOG-60034 WIRE HARN SW UNIT www.seuservice.com...
  • Page 128 11 FUN UNIT (HOD-1530) CONNECTOR ITEM NO. PART NO. DESCRIPTION NOTE 105-5340-01 FAN BRKT LONG 260-0011-02 AXIAL FLOW FAN AC100V 50-60HZ 601-8543 FAN GUARD 280-5275-SR10 CORD CLAMP SR10 000-P00312-W M SCR PH W/FS M3 X 12 www.seuservice.com...
  • Page 129 12 AC UNIT (POD-1060) (D-1/2) www.seuservice.com...
  • Page 130 12 AC UNIT (POD-1060) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE JBA-1031 AC BRKT DYN-0402 NOISE FILTER BASE 421-8202 STICKER EARTH MARK 421-7468-01 STICKER C.P W/PIC 214-0202 AC INLET PANEL TYPE 512-5046-8000 C.P 8000MA CE UL AC 110V AREA 512-5046-5000 C.P 5000MA CE UL AC 220 ~ 240V AREA 450-5126...
  • Page 131 13 ASSY REAR CABI (POD-1500) (D-1/2) OPPOSITE SIDE www.seuservice.com...
  • Page 132 13 ASSY REAR CABI (POD-1500) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE POD-1501 ASSY SUBCABI REAR POD-1504 BACK COVER POD-1505 SIDE COVER L POD-1506 SIDE COVER R POD-1509 SP BELT POD-1510 SP NET POD-1513 JOINT BRKT CENTER POD-1600 ASSY SEAT DX POD-4000 ASSY MAIN BD DX POD-4100...
  • Page 133 14 ASSY SUBCABI REAR (POD-1501) (D-1/2) www.seuservice.com...
  • Page 134 14 ASSY SUBCABI REAR (POD-1501) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE POD-1502 REAR CABINET POD-1503 SIDE DOOR 839-1176 CONN BD JVS & RGB POD-1507 CONN PANEL POD-1508 WOOFER BELT HOD-1530 FAN UNIT 253-5460-01 AIR VENT BLACK 253-5396-91 CABINET HANDLE DP-1148X LKG TNG 117-0062...
  • Page 135 15 ASSY SEAT DX (POD-1600) (D-1/2) www.seuservice.com...
  • Page 136 15 ASSY SEAT DX (POD-1600) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE DYN-2131X UPPER SEAT DYN-2132X LOWER SEAT JBA-1603X SEAT FRAME POD-1601 SEAT MOUNT TRAY POD-1602 SEAT BASE POD-1603 SEAT BACK COVER JBA-1605 SAFETY GUARD F JBA-1606 SAFETY GUARD R SPG-2410 PROTECT RUBBER SPG-2411...
  • Page 137 16 ASSY CONTROL PANEL (POD-2000) (D-1/2) www.seuservice.com...
  • Page 138 16 ASSY CONTROL PANEL (POD-2000) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE POD-2100 ASSY CONTROLLER POD-2001 CTRL PNL BASE POD-2002 COLLAR POD-2003 SPACER RUBBER POD-2004 SHAKER BRKT POD-2005 SPACER SPONGE 130-5172 BASS SHAKER 280-5169 CORD CLAMP TL-20S 280-5009-01 CORD CLAMP 21 601-0460 PLASTIC TIE BELT 100 MM 050-H00800...
  • Page 139 17 ASSY CONTROLLER (POD-2100) (D-1/2) www.seuservice.com...
  • Page 140 17 ASSY CONTROLLER (POD-2100) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE POD-2200 ASSY LEVER MECHA POD-2300 ASSY BOOST BUTTON POD-2400 ASSY START SW POD-2500 ASSY BRAKE POD-2101 CONTROLLER BASE POD-2102 CTRL PNL COVER POD-2103 GRIP POD-2104 GRIP END POD-2105 GRIP PIN 280-5169 CORD CLAMP TL-20S 280-5207...
  • Page 141 18 ASSY LEVER MECHA (POD-2200) (D-1/2) www.seuservice.com...
  • Page 142 18 ASSY LEVER MECHA (POD-2200) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE POD-2201 LEVER BRKT INNER POD-2202 LEVER SHAFT POD-2203 STOPPER RUBBER LEVER APC-3251 LEVER GUIDE APC-3253 LEVER BRKT OUTER APC-3255 SHUTTER PLATE APC-3257 STOPPER SHAFT LEVER APC-3258 Z BRKT TTR-2009 GEAR HOLDER 80 601-6005...
  • Page 143 19 ASSY BOOST BUTTON (POD-2300) (D-1/2) www.seuservice.com...
  • Page 144 19 ASSY BOOST BUTTON (POD-2300) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE POD-2301 BOOST MECHA BASE POD-2302 LATCH ARM POD-2303 ROLLER PIN POD-2304 ROLLER POD-2305 LATCH COLLAR POD-2306 TOR SPRING BOOST POD-2307 LATCH PIN POD-2308 LATCH BRKT L POD-2309 LATCH BRKT R POD-2310 PIPE BASE POD-2311...
  • Page 145 20 ASSY START SW (POD-2400) ITEM NO. PART NO. DESCRIPTION NOTE POD-2401 START SW PLATE 509-5970-YE SW PB OBSF-24TR YE 509-5971-RE SW PB OBSA-30UM W/L 6V3W RE 601-0460 PLASTIC TIE BELT 100 MM POD-60028 WIRE HARN SW www.seuservice.com...
  • Page 146 21 ASSY BRAKE (POD-2500) (D-1/2) www.seuservice.com...
  • Page 147 21 ASSY BRAKE (POD-2500) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE POD-2501 BRAKE COVER UPPER POD-2502 BRAKE COVER LOWER POD-2503 BRAKE SHAFT POD-2504 TOR SPRING BRAKE POD-2505 BRAKE LEVER POD-2506 BLIND PLATE POD-2507 BRAKE COLLAR POD-2508 STOPPER SHAFT POD-2509 STOPPER RUBBER BRAKE POD-2510 GRIP PIN R POD-2511...
  • Page 148 22 ASSY MAIN BD DX (POD-4000) ITEM NO. PART NO. DESCRIPTION NOTE POD-4001 MAIN BD BASE POD-4050 ASSY SHIELD CASE POD 105-5382 SHIELD CASE BRKT 400-5397-01 SW REGU FOR JVS VA 280-5207 HARNESS LUG CC-1005 280-6600 CORD CLAMP TL-20W 000-P00408-W M SCR PH W/FS M4 X 8 000-P00416-W M SCR PH W/FS M4 X 16...
  • Page 149 FLT BD SEGA HIKARU NCR 105-5378 SHIELD CASE FOR SEGA HIKARU 105-5379 SHIELD CASE LID FOR SEGAHIKARU 105-5381 FLT BD BRKT FOR SEGA HIKARU 421-9174 STICKER CAUTION ANTISTATIC 421-10023-AAB STICKER BD SERIAL NUMBER AAB 421-10023-BBP STICKER BD SERIAL NUMBER BBP...
  • Page 150 24 ASSY SOUND BD DX (POD-4100) (D-1/2) www.seuservice.com...
  • Page 151 24 ASSY SOUND BD DX (POD-4100) (D-2/2) ITEM NO. PART NO. DESCRIPTION NOTE POD-4101 SOUND BD BASE POD-4102 VR BRKT 421-11275 STICKER VOLUME 838-11856-UL CONNECT BD UL 838-13948 BASS WOOFER AMP 50WX1 838-13948-01 BASS WOOFER AMP 50WX1 601-10369 STEREO PWR AMP 47 560-5443 AUDIO XFMR FOR 838-13948 310-5029-D20...
  • Page 152 25 ASSY CONTROL BD DX (POD-4200) NOTE: Make sure that there is no wiring, etc. in the slash mark portions. ITEM NO. PART NO. DESCRIPTION NOTE POD-4201 CONTROL BD BASE 837-13551-92 I/O CONTROL BD FOR JVS 280-5207 HARNESS LUG CC-1005 601-0460 PLASTIC TIE BELT 100 MM 280-6600...
  • Page 153 26 ASSY WIRE FRONT CABI (POD-6001) ASSY WIRE FRONT CABI (POD-6001) is comprised of the following wire harnesses. An ASSY DRG. is unavailable. ITEM NO. PART NO. DESCRIPTION NOTE 601-0460 PLASTIC TIE BELT 100 MM POD-60003 WIRE HARN COIN CHUTE POD-60004 WIRE HARN DC EXT 600-7009-1500...
  • Page 154 28 ASSY WIRE REAR CABI AC (POD-6003) ASSY WIRE REAR CABI AC (POD-6003) is comprised of the following wire harnesses. An ASSY DRG. is unavailable. ITEM NO. PART NO. DESCRIPTION NOTE 601-0460 PLASTIC TIE BELT 100 MM POD-60031 WIRE HARN AC EXT POD-60034 WIRE HARN AC FAN 29 ASSY WIRE REAR CABI DC (POD-6004)
  • Page 155 30 ASSY TRANS 100-120V (POD-4300) ITEM NO. PART NO. DESCRIPTION NOTE POD-4301 TRANS BASE 560-5384 XFMR 100-120V 100V 10A WB 280-5207 HARNESS LUG CC-1005 000-P00516-W M SCR PH W/FS M5 X 16 011-T03512 TAP SCR TH 3.5 X 12 POD-60072 WIRE HARN XFMR IN POD-60073 WIRE HARN XFMR OUT...
  • Page 156 31 ASSY TRANS 200-240V (POD-4350) ITEM NO. PART NO. DESCRIPTION NOTE POD-4301 TRANS BASE 560-5377 PWR XFMR 200-240V 100V10A CE 280-5207 HARNESS LUG CC-1005 000-P00516-W M SCR PH W/FS M5 X 16 011-T03512 TAP SCR TH 3.5 X 12 POD-60072 WIRE HARN XFMR IN POD-60073 WIRE HARN XFMR OUT...

  • Page 157: Wire Color Code Tabe

    20. WIRE COLOR CODE TABLE THE WIRE COLOR CODE is as follow: PINK SKY BLUE BROWN PURPLE LIGHT GREEN Wires other than those of any of the above 5 single colors will be displayed by 2 alphanumeric characters. BLUE YELLOW GREEN WHITE ORANGE...
