- Page 1 Installation and Operation Manual CSE OTS MFB+ZV W PUMP STATION CSE OTS MFB+ZV W...

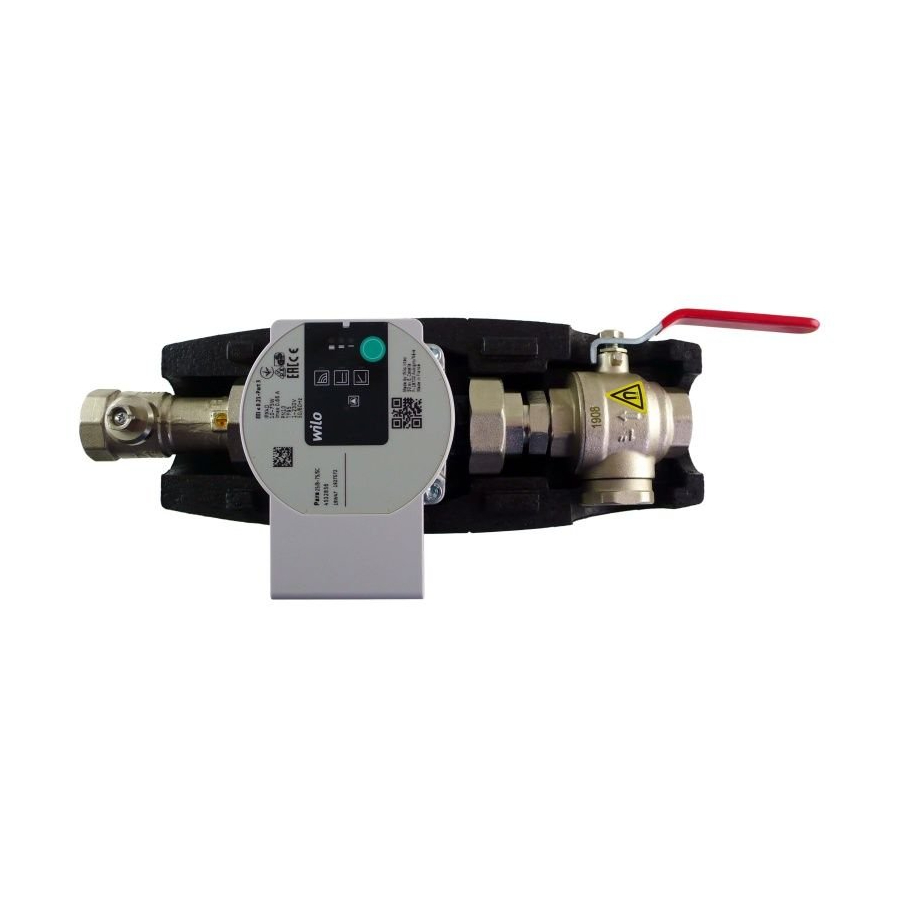

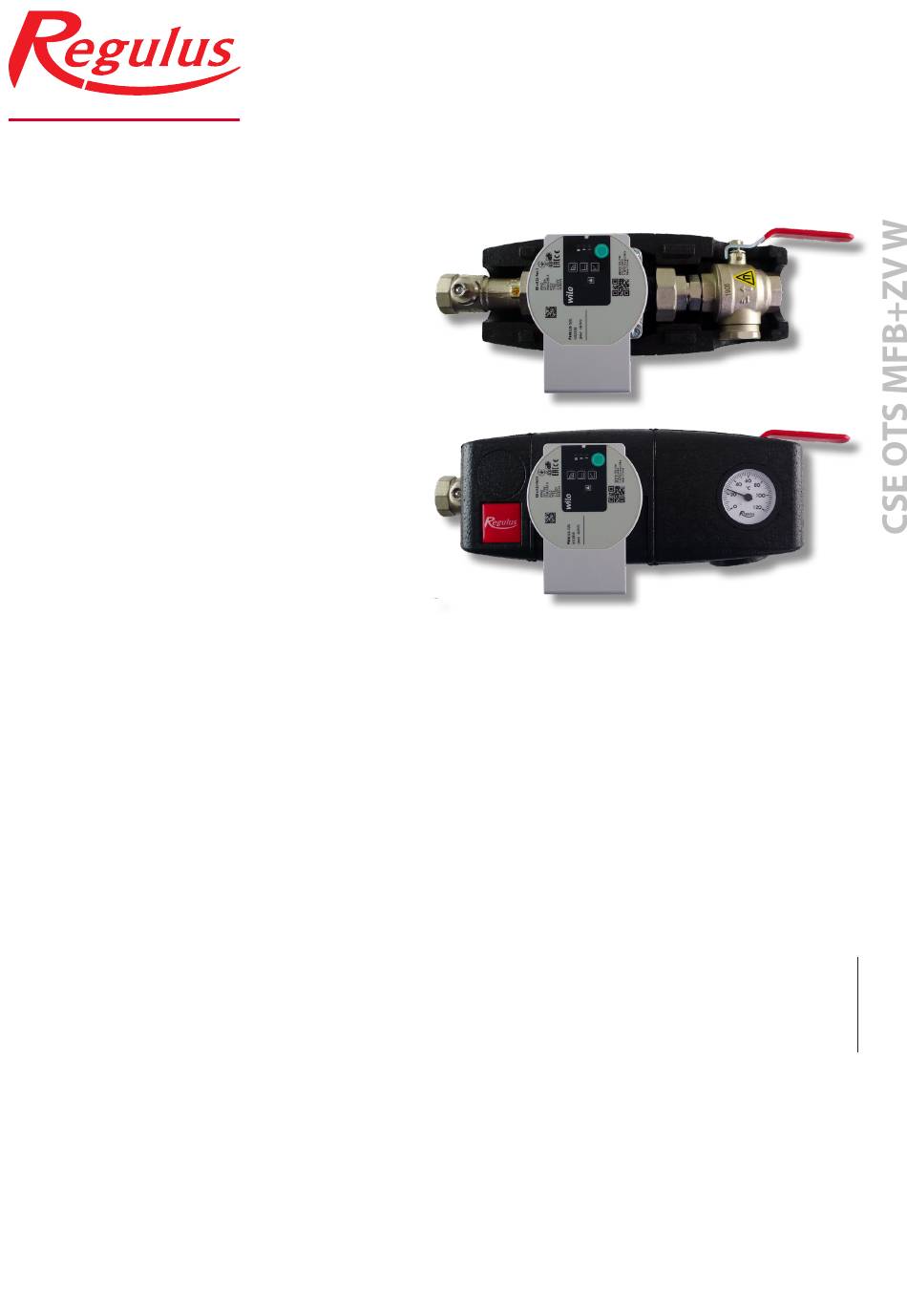

- Page 2 1. Introduction CSE OTS MFB+ZV W Pump Station is designed for installation on a heating system flow pipe. The pump station contains two ball valves, one ball valve is fitted with an integrated filter and magnet. The filter can be easily removed and cleaned without any tools. The pump station is intended for installation directly on a pipe, the minimum pipe centre distance from wall is 100mm.
- Page 3 4. Wilo Para 25/8 SC 130 mm Pump Wilo Para 25/8 SC circulation pump is a wet-running circulation pump permitting to set speed control to Δp-v, Δp-c or n=constant. The operating status and possible faults of the pump are displayed by means of LEDs directly on the pump display. It is used exclusively for the circulation of liquids in hot water heating systems.
- Page 4 TROUBLESHOOTING, RESTART, FACTORY SETTINGS If air is present in the pump: Activate the pump venting function by pressing and holding the operating button for 3 sec. The upper and lower rows of LEDs will flash in 1sec interval, see Fig. Pump venting takes 10 minutes, after that the pump returns to current mode.
- Page 5 PUMP SPEED CONTROL The following speed control can be selected: Variable differential pressure Δp-v Constant differential pressure Δp-c Constant speed n=const. Variable differential pressure (Δp-v) It is not recommended to use variable H [m] Δp-v (variabilní) Δp-v (variable) differential pressure for solid fuel boiler pumps! This profile is suitable for use with two-line radiator heating systems to reduce the noise caused by the flow of...
- Page 6 Constant speed (n=const.) This profile is suitable for use in H [m] konstantní otáčky I, II, III constant speed I, II, III constant resistance systems that require constant pumping capacity. The pump runs uncontrolled in three preset constant speed stages. Q [m³/ h] P [W] max.
- Page 7 5. Ball Valve with Filter & Magnet 5.1. Maintenance, Cleaning 1. Close the ball valve by turning the lever by 90° in the direction of the OFF arrow (Fig. 1) 2. Unscrew the lid with magnet manually and take out the strainer (Fig. 2, 3). 3.
- Page 8 ©2020 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
