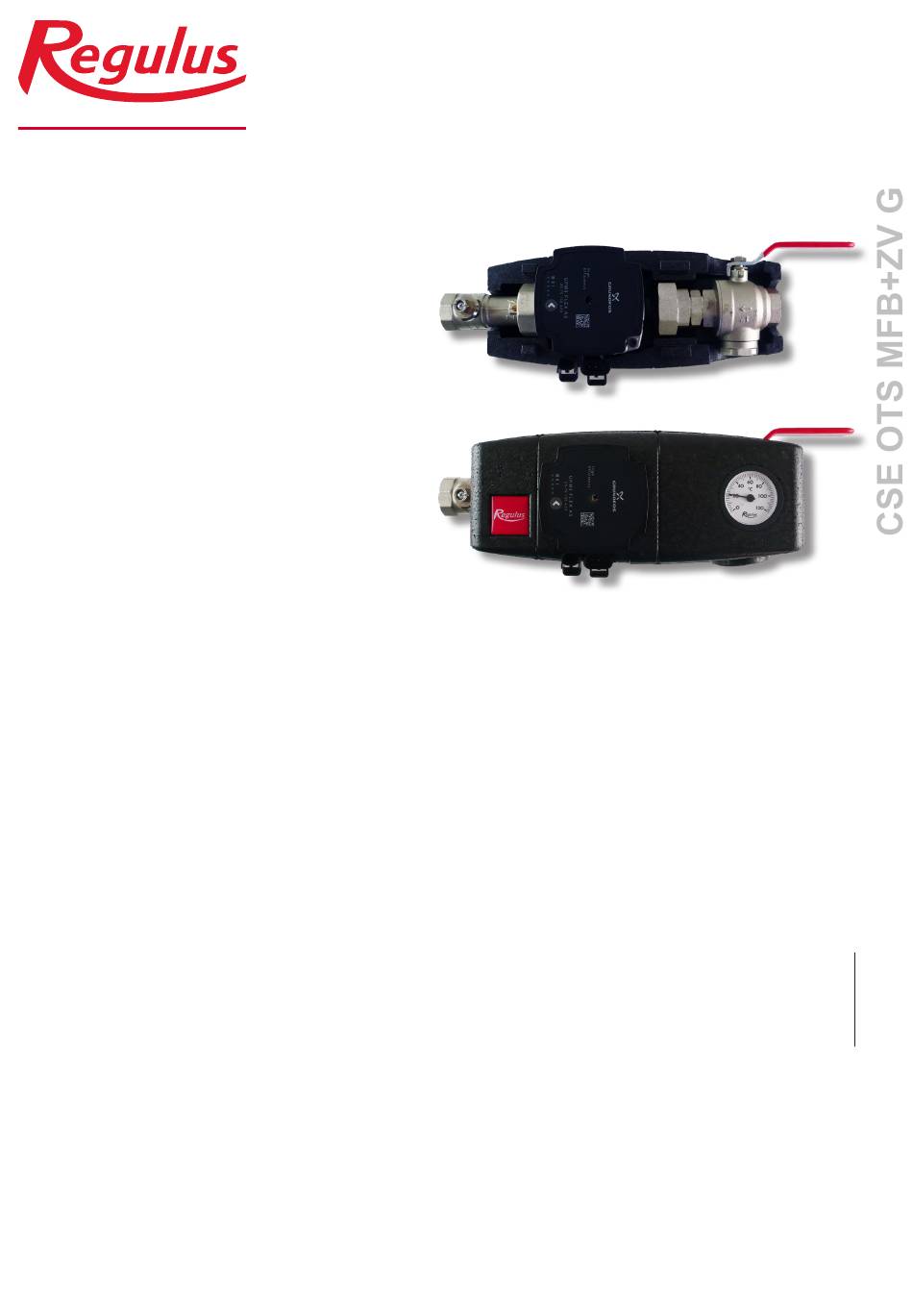

- Page 1 Installation and Operation Manual CSE OTS MFB+ZV G PUMP STATION CSE OTS MFB+ZV G...
- Page 2 1. Introduction CSE OTS MFB+ZV G Pump Station is designed for installation on a heating system flow pipe. The pump station contains two ball valves, one ball valve is fitted with an integrated filter and magnet. The filter can be easily removed and cleaned without any tools. The pump station is intended for installation directly on a pipe, the minimum pipe centre distance from wall is 100mm.
- Page 3 3. Direction of Flow through the Pump Station SMĚR PROUDĚNÍ FLOW DIRECTION │...
- Page 4 4. UPM3 FLEX AS 25-75 130 mm Pump Design Wet-running circulation pump with G 6/4“ M threaded connections. Electric Data Power supply 230 V, 50 Hz Power input (min./max.) 2/60 W Current (min./max.) 0.04/0.58 A IP rating IP44 Max. speed 5991 rpm Weighted average power ≤...
- Page 5 Performance Display DISPLAY - LED MARKING The LED marking is further omitted for better clarity. DISPLAY PERFORMANCE Max. H STATE (upper graph) CURVES LOW PERFORMANCE MEDIUM PERFORMANCE HIGH PERFORMANCE 7,5 m WARNING: LEDs may be turned by 90° or 180°, depending on the specific pump type. GREEN LED FLASHING FREQUENCY PWM SIGNAL RECEPTION 1 flash per second...
- Page 6 Prohibited pump positions Permissible pump (actuator) positions Pump Wiring N (blue) L (brown) PE (yellow-green) PWM GDN (blue) PWM out (black) PWM in (brown) power supply (A) and socket for power supply (A) signal (B) connectors and signal transmission (B) │...
- Page 7 5. Ball Valve with Filter & Magnet 5.1. Maintenance, Cleaning 1. Close the ball valve by turning the lever by 90° in the direction of the OFF arrow (Fig. 1). 2. Unscrew the lid with magnet manually and take out the strainer (Fig. 2, 3). 3.
- Page 8 © 2021 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
