SEA ALPHA 330 Installation Manuals And Safety Information

110v standard
Hide thumbs Also See for ALPHA 330:
Table of Contents

Advertisement

Quick Links

Download this manual
International registered trademark n. 2.777.971

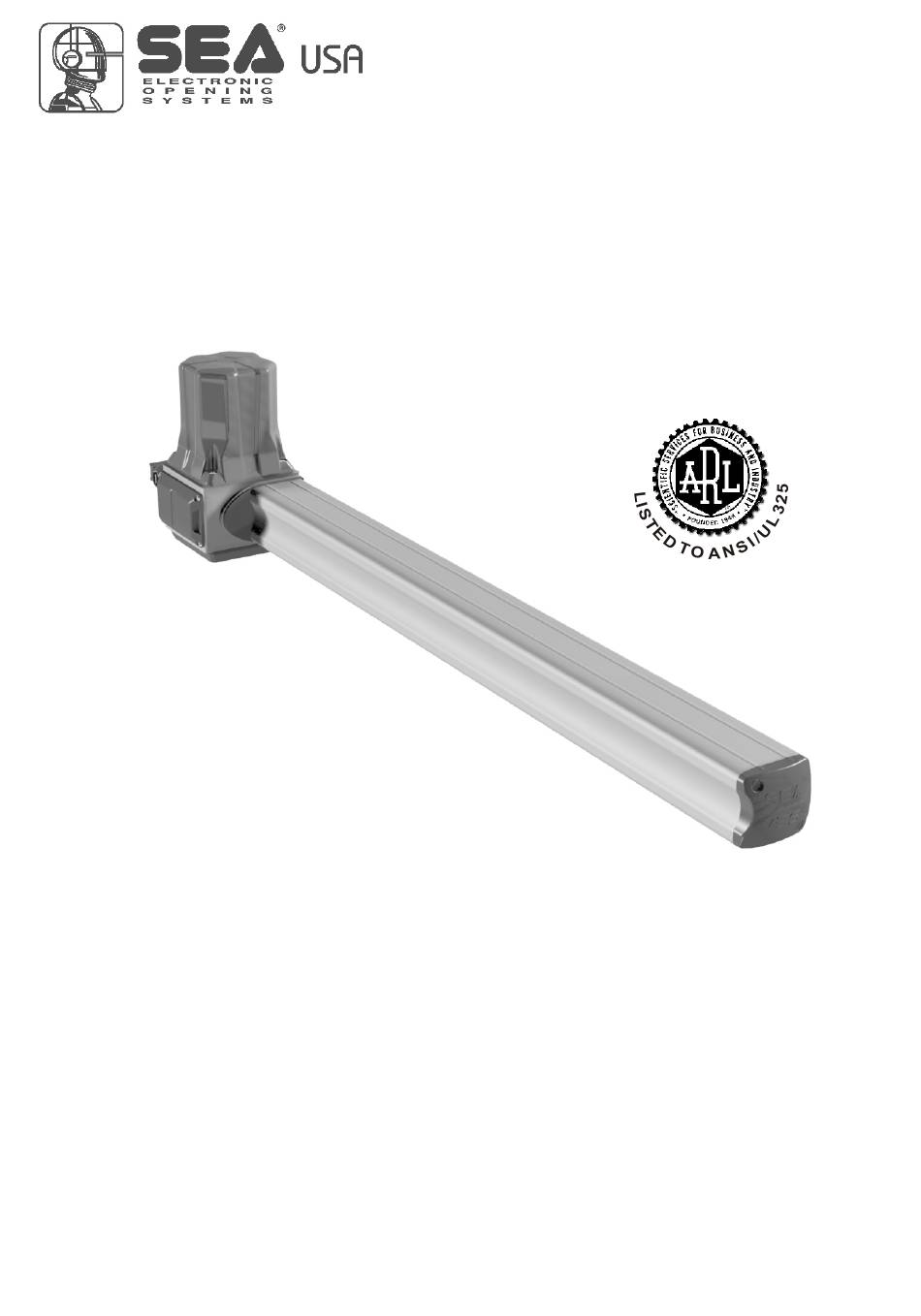

ALPHA 330
110V STANDARD
INSTALLATION MANUALS
AND SAFETY INFORMATION
SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172
Phone:++1-305.594.1151 Fax: ++1-305.594.7325
Toll Free: 800.689.4716
web site: www.sea-usa.com
e-mail: sales@sea-usa.com
67410780
REV 03 - 06/2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALPHA 330 and is the answer not in the manual?

Questions and answers

Related Manuals for SEA ALPHA 330

Summary of Contents for SEA ALPHA 330

  • Page 1 International registered trademark n. 2.777.971 ALPHA 330 110V STANDARD INSTALLATION MANUALS AND SAFETY INFORMATION SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com 67410780 REV 03 - 06/2009...

  • Page 2: Table Of Contents

    ALPHA International registered trademark n. 2.777.971 TABLE OF CONTENTS A)SAFETY AND INSTALLATION INSTRUCTION ..........3 PERIODICAL MAINTENANCE ................7 GATE WARNINGS ....................8 PRECAUTIONS ....................8 B)INSTALLATION MANUAL TECHNICAL FEATURES ..................9 DIMENSIONS......................9 STANDARD INSTALLATION................10 GATE ARRANGEMENT ..................11 INSTALLATION OF THE OPERATORS ............11 DIMENSIONS FOR INSTALLATION ..............12 RELEASING SYSTEM OF THE OPERATOR ...........15 RISK EXAMINATION ..................15...

  • Page 3: A)Safety And Installation Instruction

    ALPHA International registered trademark n. 2.777.971 INSTALLATION INSTRUCTION 1) The gate operator system has to be installed only when: I. Check to be sure this is the proper gate operator system for the construction and the usage UL class of the gate as specified on the label of the product (see also page 6) II.
  • Page 4 (see pg. 11 Typical Installation). SEA also recommend to install infrared Photo beam for a higher performance of use.
  • Page 5 ALPHA International registered trademark n. 2.777.971 GROUNDING Good grounding and proper surge suppression are an integral part of proper installation for a gate operator system. One or all of the following may require surge suppressors: high voltage power lines, low voltage power lines, telephone lines, data lines, low voltage control lines and loops.
  • Page 6 ALPHA International registered trademark n. 2.777.971 UL325 GATE OPERATOR CLASSIFICATION RESIDENTIAL VEHICULAR GATE OPERATOR CLASS I CLASS I A vehicular gate operator (or system) intended for use in a home of one-to four single family dwelling, or a garage or parking area associated therewith.

  • Page 7: Periodical Maintenance

    ALPHA International registered trademark n. 2.777.971 PERIODICAL MAINTENANCE 1) Check the release function 2) Check the fixing pin 3) Check the integrity of the connection cables 4) Check the function and the limit switch condition in opening and closing 5) Clean the hinge of the leaf and lubricate it with recommended lubricant 6) Check for all corroded parts and replace them 7) Check the tight of the hardware of the gate 8) Check the operating of all accessories.

  • Page 8: Gate Warnings

    (fig. 5). Important: For a higher security, SEA advices to install infrared photocells. Fig. 1 - Do not Install the front bracket in a weak part of the gate Fig.

  • Page 9: Technical Features

    2 Electric motor 3 Endless screw 4 Front bracket 5 Aluminum shaft-cover 6 Capacitor housing (230V version) 7 Manual Releasing DIMENSIONS (inches) ALPHA 200 ALPHA 330 38 in 46 in 11 in 16 in C (stroke) Fig. 7 REV 03 - 06/2009...

  • Page 10: Standard Installation

    ALPHA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION TYPICAL INSTALLATION Fig 8 1) Operator 2) Warning notice inside 3) Electronic Unit 4) Tx Photocell 5) Rx Photocell 6) Key Switch 7) Radio Receiver Notice: 8) Antenna The operator must be installed with the motor facing 9) Column for photocells upward (Fig.

  • Page 11: Gate Arrangement

    (Alpha 330); C. the weight of each leaf is not over 441 pounds (Alpha 200), Limit Switch stop 661 pounds (Alpha 330); in closing D. the hinges are hardly anchored and are able to support the Limit Switch stop torque of the operator;...

  • Page 12: Dimensions For Installation

    ALPHA 200 STANDARD Fig. 14 Opening angle 6,29 5,51 4,72 90° 4,33 5,11 5,90 4,33 4,33 4,72 110° 4,33 4,72 4,33 ALPHA 330 STANDARD Opening angle 5,90 7,48 7,87 8,66 90° 5,90 6,69 6,29 7,48 5,51 5,90 6,29 Fig. 15 120° 7,08...
  • Page 13 ALPHA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION 2.3. Attach the operator on the previously installed back-bracket and fix it with the provided pivot (Fig 16) Fig. 16 2.4. Release the arm (see paragraph 3) 2.5. WARNING: Turn the shaft up to its max. extension, afterwards turn it about at least half turn into the opposit direction (screw it) see Fig. 17 and 18.
  • Page 14 ALPHA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION 2.8. Drill a hole into the gate (Fig 20) to be able to attach the front bracket with the supplied bolts being careful to place the operator perfectly horizontal (Fig 21). Fig. 20 Fig.
  • Page 15 ALPHA International registered trademark n. 2.777.971 MECHANICAL INSTALLATION CONNECTIONS MOTOR Common When inserting the lids (1) make sure that the gaskets (2) are correctly installed. CONTROL UNIT GROUNDING Fig. 24 2.9. Release the arm (see paragraph 3) 2.10. Remove the pull tongue from the shaft-cover (Fig 25) and mount it on the operator through the two tie-rods without excessively tightening the two cover-nuts (Fig 26).

  • Page 16: Releasing System Of The Operator

    Fig. 29 NOTICE SEA s.r.l can not be deemed responsible for any damage or accident caused by product breaking, being damages or accidents due to a failure to comply with the instructions herein.
  • Page 20 International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
