IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Cushion
1 pc.
B.
Side Panel
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5531 27

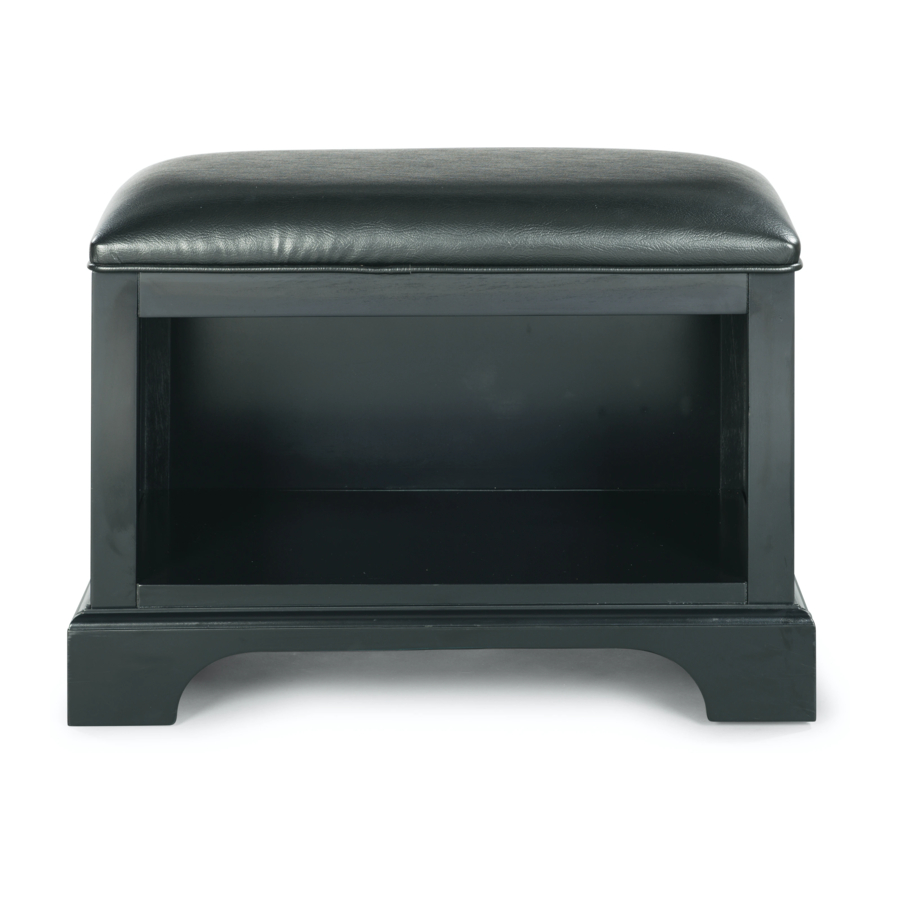

Bench
C.
Side Panel
1 pc.
Cam Lock
5 pcs. (+2 extra)
Cam Lock Screw
5 pcs. (+1 extra)
D.
Front Stretcher
1 pc.
E.
Plinth
1 pc.
F.
Back Stretcher
1 pc.
M3x30
Wood Screw
10 pcs. (+1 extra)
M6x32
Head Cap Bolt
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
G.
Plinth
1 pc.
H.
Back Panel
1 pc.
I.
Base
1 pc.
Spring Washer
4 pcs. (+1 extra)
Flat Washer
4 pcs. (+1 extra)
Advertisement
Related Manuals for Homestyles 88 5531 27
Summary of Contents for Homestyles 88 5531 27
- Page 1 M6x32 Small Hex Wrench Flat Washer Cam Lock Screw Head Cap Bolt 1 pc. 4 pcs. (+1 extra) 5 pcs. (+1 extra) 4 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench in a safe place as the bolts may need to be tightened up in the future.
- Page 3 Assembly Instructions 3/3 STEP 4 Attach Front Stretcher (D) and Back Stretcher (F) to unit with Cam Locks. Slide Back Panel (H) into place. Cam Lock Wood Screw Cam Lock STEP 5 Flat Washer Spring Washer Attach Side Panel (C) to unit with Head Cap Bolt Flat Washers, Spring Washers, Head Cap Bolts, Cam Locks...
- Page 4 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
