88 5542 49

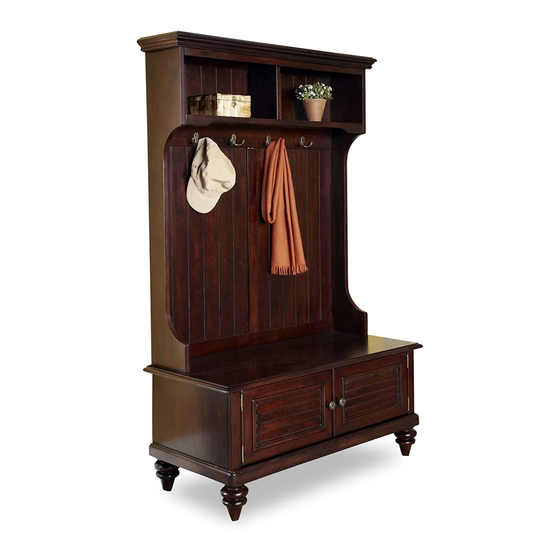

Bermuda Hall Tree
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 pc.
B.
Shelf
1 pc.
G.
Seat
1 pc.
H.
Bottom
1 pc.
I.
Front Rail
1 pc.
J.
Front Rail
1 pc.
K.
Back Rail
2 pcs.
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tools required for assembly :
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
C.
Side Panel
1 pc.
M.
Back Panel
1 pc.
N.
Back Rail
1 pc.
O.
Back Rail
1 pc.
P.
Back Panel
1 pc.
Cam Lock Screw
30 pcs.(+1 extra)
Wood Screw
Wood Screw
for Hinge
for Back Panel
24 pcs. (+1 extra)
8 pcs. (+1 extra)
Phillips screwdriver
D.
E.
Side Panel
Middle Panel
1 pc.
1 pc.
L.
Back Rail
1 pc.
Q.
Back Panel
2 pcs.
Cam Lock
30 pcs.(+1 extra)
Wood Screw
for Hook
8 pcs. (+1 extra)
Tools recommended for assembly :
F.
Leg
4 pcs.
S.
Side Panel
1 pc.
R.
Back Post
1 pc.
U.
Door
1 pc.
Wood Screw
for Side Panel
4 pcs. (+1 extra)
Machine Screw
2 pcs.
T.
Side Panel
1 pc.
V.
Door
1 pc.
Hook
4 pcs.
Pull Handle
2 pcs.
Level
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Homestyles Bermuda Hall Tree 88 5542 49
Summary of Contents for Homestyles Bermuda Hall Tree 88 5542 49
- Page 1 2 pcs. Hex Wrench 2 pcs. 24 pcs. (+1 extra) 8 pcs. (+1 extra) 8 pcs. (+1 extra) 1 pc. Phillips screwdriver Tools required for assembly : Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * After assembly, item must be level to work properly.
- Page 3 Assembly Instructions 3/6 Cam Lock STEP 3 Attach Front Rail (I), Back Rails (K) to Side Panel (C) using Cam Locks and slide Back Panel (M) into place. (see Figure 3) Attach Side Panel (D) to unit using Cam Locks. Figure 3 Cam Lock STEP 4...
- Page 4 Assembly Instructions 4/6 STEP 5 Attach Back Rail (L), (N) to Side panel (T) using Cam Locks and slide Back Panel (P) into place. Slide Back Panels (Q) and Back Post (R) into Back Rail (N). Attach Back Rail (O) to the unit using Cam Lock.
- Page 5 Assembly Instructions 5/6 STEP 8 Place the Top unit onto the Base Unit using Cam Locks. Cam Lock Figure 5 Wood Screw for Back Panel STEP 9 To level the unit, adjust the adjustable levelers on the bottom of unit. (see Figure 6) Insert 24X Wood Screws from the back of the unit and then tighten up all the Wood Screws.
- Page 6 Assembly Instructions 6/6 Hook Wood Screw for Hook Wood Screw for Hinge Figure 7 Figure 9 Figure 8 STEP 6 Attach Hooks to the unit with Wood Screw for Hooks. (see Figure 7) Attach Doors (U) and (V) to the Base unit with Wood Screws for Hinges. (see Figure 8) Attach Pull Handles to Doors (U) and (V) with Machine Screws.
