Homestyles 88 5531 752 Assembly Instructions Manual

Closet wall drawer unit
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

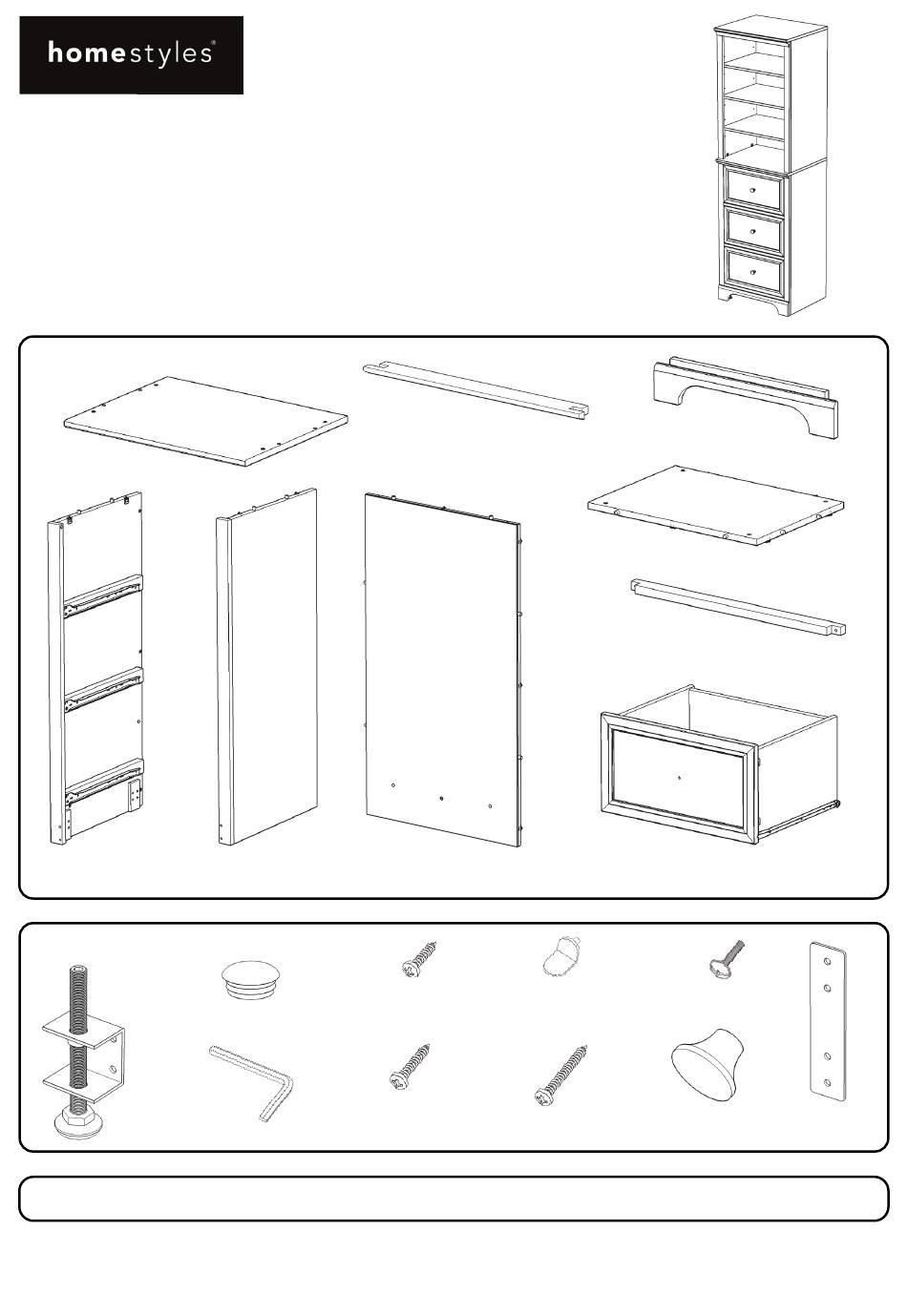

Part List
G.
Top
1 pc.
J.
Side Panel
1 pc.
Hardware List
Plug
4 pcs. (+1 extra)
Leveler
Hex Wrench
4 pcs.
1 pc.
Carton 88 5531 751 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5531 752
Closet Wall Drawer Unit
H.
Front Rail
1 pc.
K.
Side Panel
1 pc.
M3x15
Wood Screw for
Connector
8 pcs. (+1 extra)
M3x19
Wood Screw for
Leveler
16 pcs. (+1 extra)
L.
Back Panel
1 pc.
O.
Drawer
Refer to the last page(s) of these
3 pcs.
Instructions for drawer assembly.
Adjustable Pin
12 pcs. (+1 extra)
M3x25
Wood Screw (long)
10 pcs. (+1 extra)
888-680-7460, 877-831-0319
I.
Plinth
1 pc.
M.
Bottom
1 pc.
N.
Front Rail
2 pc.
M4x15
Machine Screw
3 pcs.
Knob
Connector
3 pcs.
2 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 88 5531 752 and is the answer not in the manual?

Questions and answers

Related Manuals for Homestyles 88 5531 752

Summary of Contents for Homestyles 88 5531 752

  • Page 1 1 pc. 16 pcs. (+1 extra) 2 pcs. Carton 88 5531 751 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 3 Assembly Instructions 3/8 STEP 3 Attach Levelers to bottom of unit with Wood Screws for Levelers. (See Figure 2) Figure 2 Wood Screw for Leveler Leveler Wood Screw (long) STEP 4 Attach Top (G) to unit with Wood Screws (long), then flip the locks.
  • Page 4 Assembly Instructions 4/8 STEP 5 Attach Back Panel (F) and Front Rail (B) to Side Panel (E), then flip the locks. Attach Side Panel (D) to unit, then flip the locks. STEP 6 Attach Top (A) to unit, then flip the locks.
  • Page 5 Assembly Instructions 5/8 STEP 7 Place top unit onto base unit, then flip the locks. Adjustable Pin Plug STEP 8 Place unit at desired location. Note: If assembling multiple Closet Wall Units together, place all units at desired location. Figure 3 Level the unit(s) by adjusting the adjustable levelers on the bottom of unit(s).

  • Page 6: Hardware List

    Assembly Instructions 6/8 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 9 Anchor in wall Wall Screw Pre-drilled hole Bracket Drill a 3/8” hole in wall in-line with at top of unit on wall the pre-drilled hole at top of unit.
  • Page 7 Assembly Instructions 7/8 Wood Screw for Connector Connector Figure 6 STEP 10 Note: If assembling multiple Closet Wall Units together, complete Step 10. Attach the top of units together using Connector and Wood Screw for Connectors into the pre-drilled holes. (See Figure 6) Return to and complete Step 9.

  • Page 8: Part List

    Assembly Instructions 8/8 Drawer (O) STEP 1 Attach O2 to O3 and O4, then flip the locks. (See Figure A) Figure 2 STEP 2 Slide O5 into the grooves in O3 and O4. Be sure to push O5 all the way forward so it meets O2. STEP 4 STEP 3 Attach Knob with...
  • Page 9 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
