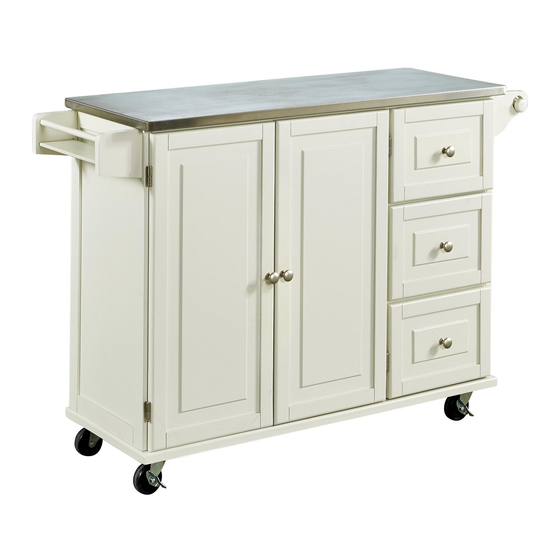

Kitchen cart
Hide thumbs Also See for 4512-95:

Advertisement

Quick Links

IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

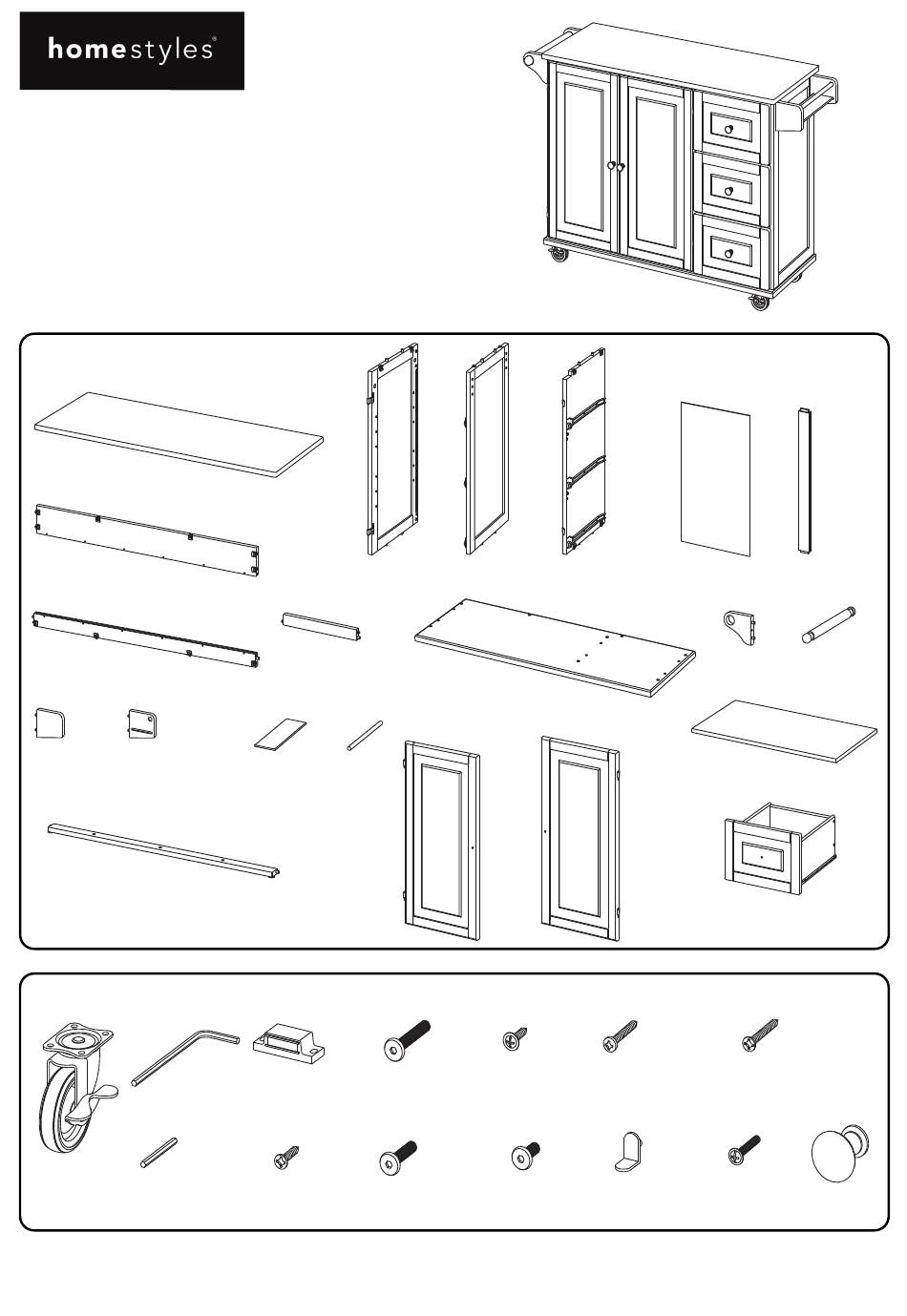

Part List
A.
Top
1 pc.
G.
Back Rail
1 pc.
H.
Back Rail
1 pc.
M.
N.
Rack Side
Rack Side
1 pc.
1 pc.
W.
Front Rail
1 pc.
Hardware List
Hex Wrench
1 pc.
Caster
2 Locking
Small
2 Non-Locking
Hex Wrench
4 pcs.
1 pc.
Tool(s) required for assembly: Phillips screwdriver
home
451 -95
2
Kitchen Cart
B.
Side Panel
1 pc.
I.
Front Rail
2 pcs.
O.
P.
Rack Base
Rack Bar
1 pc.
1 pc.
Q.
Door
1 pc.
M6x38
Magnet
Head Cap Bolt (long)
2 pcs.
4 pcs. (+1 extra)
M3x16
Wood Screw
M6x25
Head Cap Bolt
for Magnet
4 pcs. (+1 extra)
4 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
C.
D.
Side Panel
Middle Panel
1 pc.
1 pc.
J.
Base
1 pc.
R.
Door
1 pc.
M x16
3
M x25
3
Wood Screw (short)
Wood Screw (long)
24 pcs. (+1 extra)
24 pcs. (+1 extra)
M6x12
Head Cap Bolt
for Caster
Adjustable Pin
8 pcs. (+1 extra)
16 pcs. (+1 extra)
888-680-7460
E.
F.
Back Panel
Back Upright
3 pcs.
2 pcs.
K.
L.
Arm
Towel Bar
2 pcs.
1 pc.
S.
Shelf
2 pcs.
T.
Drawer
3 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
M x25
3
Flat Head Screw
3 pcs. (+1 extra)
M4x25
Machine Screw
Knob
5 pcs.
5 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4512-95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Homestyles 4512-95

  • Page 1 451 -95 Kitchen Cart IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
  • Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
  • Page 3 Assembly Instructions 3/7 STEP 4 Attach Back Rail (G) to Side Panel (C), then flip Locks. (See Figures 1 and 2) Attach Back Uprights (F) to unit. Slide Back Panels (E) into position. Attach Back Rail (H) to unit, then flip Lock. Attach Side Panel (B) to unit, then flip Locks.
  • Page 4 Assembly Instructions 4/7 STEP 6 Head Cap Bolt for Caster Non-Locking Caster Attach Casters to unit with Head Cap Bolts Locking Caster for Caster into pre-drilled holes with Locking Casters at front. (See Figure 4) Note: Arrow label indicates front of unit. Arrow label at front Figure 4 Wood Screw for Magnet...
  • Page 5 Assembly Instructions 5/7 STEP 8 Turn unit over to its upright position. Attach Middle Panel (D) to unit, then flip Locks. Attach Front Rails (I), (W) to unit, then flip Locks. Lock Wood Screw (short) STEP 9 Insert Wood Screws (short) into pre-drilled holes in unit, then tighten.
  • Page 6 Assembly Instructions 6/7 Drawer (T) Wood Screw (long) Bottom STEP 10 Attach Drawer Front (T1) and Drawer Back (T2) to Drawer Side (T3) with Wood Screws (long). Attach Drawer Side (T4) to unit with Wood Screws (long). Roller at back Wood Screw (short) STEP 11 Slide Drawer Bottom (T5) into groove.
  • Page 7 Assembly Instructions 7/7 Adjustable Pin STEP 13 Insert Adjustable Pins into side panel and middle panel at desired level. (See Figure ) 6 Place Shelves (S) into position. Attach Doors (Q) and (R) by sliding door hinges into side panel and middle panel hinges.
  • Page 8 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
