88 5531 49
Hall Tree Stand
(Ebony Finish)
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

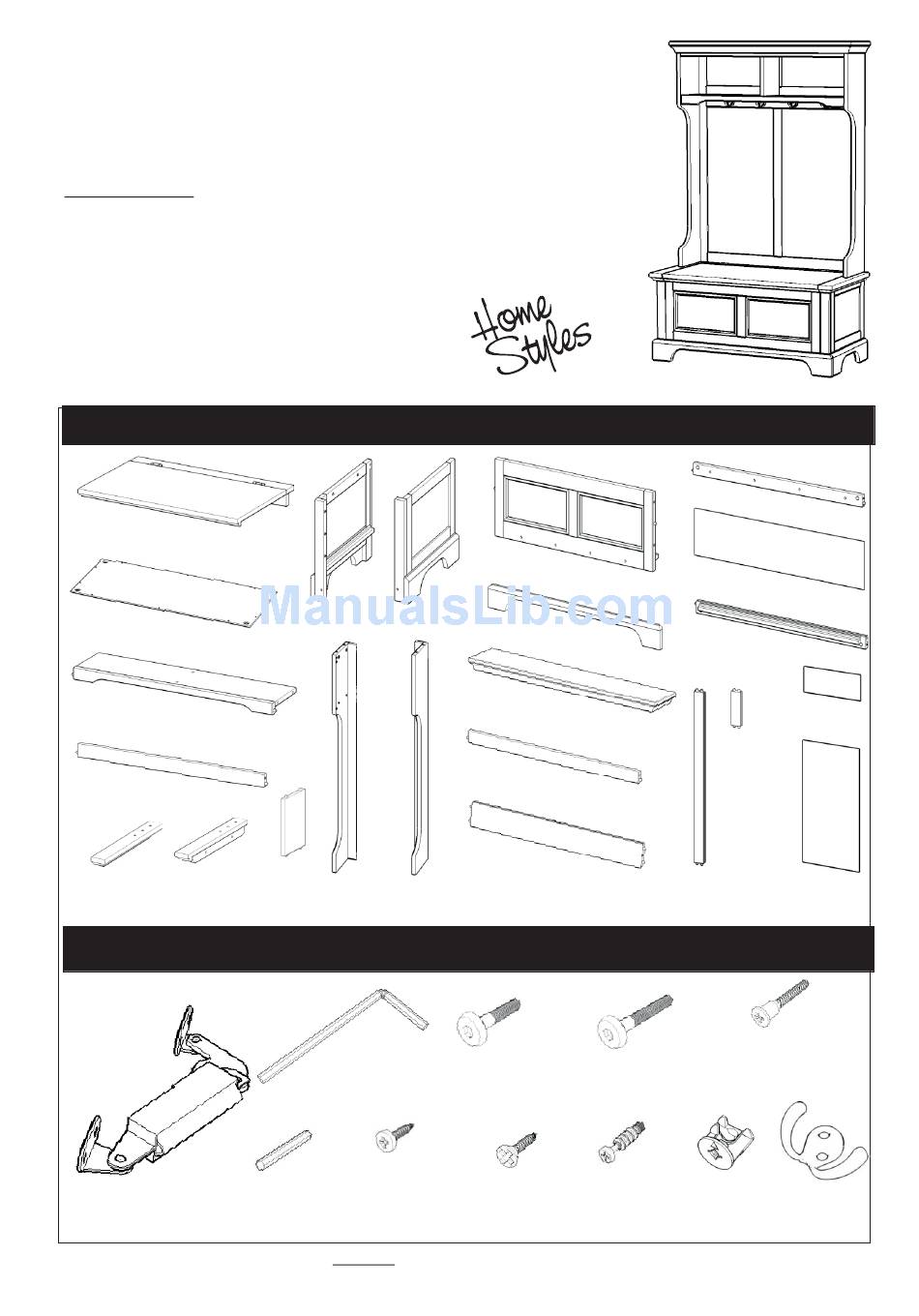

PART LIST
A.
Seat
1 pc.
I.
Base
1 pc.
J.
Shelf
1 pc.
N.
Front Rail
1 pc.
Q.
P.
Arm
Arm
1 pc.
1 pc.
HARDWARE LIST
Spring Support
2 pcs.
Tools Required For Assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
B.
C.
Side Panel
Side Panel
1 pc.
1 pc.
R.
Divider
S.
T.
1 pc.
Side Panel
Side Panel
1 pc.
1 pc.
Hex Wrench
1 pc.
Wood Screw for
Hex Wrench
Spring , Back Panel
1 pc.
and Baes
42 pcs. (+1 extra)
servicedesk@homestyles-furniture.com
D.
Front Panel
1 pc.
E.
Plinth
1 pc.
K.
Top
1 pc.
O.
Back Rail
2 pcs.
U.
Back Rail
1 pc.
Head Cap Bolt
Head Cap Bolt
(Short)
(Long)
6 pcs. (+1 extra)
8 pcs. (+1 extra)
Wood Screw
Cam Lock Screw
24 pcs. (+1 extra)
for Hook
8 pcs. (+1 extra)
F.
Back Rail
1 pc.
G.
Back Panel
1 pc.
H.
Back Rail
1 pc.
M.
Back Panel
L.
2 pcs.
Back Rail
1 pc.
V.
W.
Back Rail
Back Panel
1 pc.
2 pcs.
Wood Screw for
Arm and Side Panel S. , T.
4 pcs. (+1 extra)
Cam Lock
Hook
24 pcs. (+1 extra)
4 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 88 5531 49 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Homestyles 88 5531 49

  • Page 1 88 5531 49 Hall Tree Stand (Ebony Finish) IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this...
  • Page 2 Assembly Instructions 2/6 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in a safe place as you may need to tighten the Head Cap Bolts in the future. Cam Lock Screw STEP 1 Cam Lock Screw Insert Cam Lock Screws into the...
  • Page 3 Assembly Instructions 3/6 STEP 3 Attach Front (D) to Side Panel (B) with Cam Locks and Head Cap Bolt (Short). Attach Back Rail (F) , (H) to Side Panel (B) with Cam Locks. Slide Back Panel (G) to the unit. Cam Lock Cam Lock Head Cap Bolt (Short)
  • Page 4 Assembly Instructions 4/6 STEP 6 Attach Back Rail (U) to Side Panel (S) Cam Lock with Cam Lock. Attach Back Panel (W) , (M) to Side Panel (S) and Back Rail (U). Attach Back Rail (L) to Back Panel (M) and Back Rail (U).
  • Page 5 Assembly Instructions 5/6 STEP 9 Attach Arm (P) , (Q) to the unit with Wood Screw for Arm. Attach Divider (R) and Top (K) to unit with Cam Locks. Head Cap Bolt (Long) P P P Wood Screw for Arm STEP 10 Place the Top unit onto the Base Unit with Head Cap Bolts (Long).
  • Page 6 Assembly Instructions 6/6 Hook Wood Screw for Hook Figure 2 Hook STEP 13 Attach Hooks to the top of the unit with Wood Screws for Hooks. (see Figure 2) Wood Screw for Back Panel STEP 14 Attach Wood Screws for Back Panel to the back of the unit.
