IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
I.
Base
1 pc.
J.
Shelf
1 pc.
N.
Front Rail
1 pc.
P.
Q.
Arm
Arm
1 pc.
1 pc.
Hardware List
Spring Support
Small Hex Wrench
2 pcs.
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5530 49

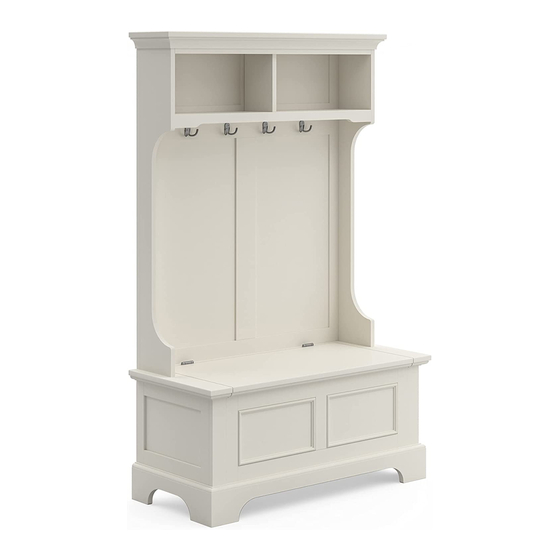

Hall Tree Stand
B.
C.
Side Panel
Side Panel
1 pc.
1 pc.
R.
S.
Divider
Side Panel
1 pc.
1 pc.
M6x25
Hex Wrench
Head Cap Bolt (short)
1 pc.
6 pcs. (+1 extra)
M3x16
Wood Screw
for Spring Support,
Base and Back Panel
34 pcs. (+1 extra)
D.
Front Panel
1 pc.
E.
Plinth
1 pc.
K.
Top
1 pc.
O.
Back Rail
2 pcs.
U.
T.
Back Rail
Side Panel
1 pc.
1 pc.
M6x28
Head Cap Bolt (long)
8 pcs. (+1 extra)
M3x16
M5x32
Wood Screw
Wood Screw
for Hook
For Arm
8 pcs. (+1 extra)
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
X.
Back Panel
1 pc.
L.
Back Rail
1 pc.
V.
Back Rail
1 pc.
Cam Lock Screw
Dowel
24 pcs. (+1 extra)
2 pcs. (+1 extra)
Cam Lock
24 pcs. (+6 extra)
M.
Back Panel
2 pcs.
W.
Back Panel
2 pcs.
Hook
4 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hall Tree Stand 88 5530 49 and is the answer not in the manual?

Questions and answers

Related Manuals for Homestyles Hall Tree Stand 88 5530 49

Summary of Contents for Homestyles Hall Tree Stand 88 5530 49

  • Page 1 24 pcs. (+6 extra) 8 pcs. (+1 extra) 4 pcs. (+1 extra) 2 pcs. 1 pc. 34 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench in a safe place as the bolts may need to be tightened up in the future.
  • Page 3 Assembly Instructions 3/8 Head Cap Bolt (short) STEP 3 Attach Front Panel (D) and Back Panel (X) to Side Panel (B) with Cam Locks and Head Cap Bolt (short). (See Figure 3) Cam Lock Head Cap Bolt (short) STEP 4 Attach Side Panel (C) to unit with Cam Locks and Head Cap Bolt (short).
  • Page 4 Assembly Instructions 4/8 Wood Screw for Spring Support STEP 6 Spring Support Attach Spring Supports to Seat (A) by inserting Wood Screws for Spring Support into pre-drilled holes, then tighten. (See Figure 5) Figure 5 Head Cap Bolt (long) STEP 7 Attach Seat (A) to unit with Head Cap Bolts.
  • Page 5 Assembly Instructions 5/8 STEP 8 Attach Hooks to Back Rail (U) with Wood Screws for Hook. (See Figure 6) Wood Screws for Hook Hook Figure 6 STEP 9 Attach Back Rail (U) to Side Panel (S) with Cam Lock. Slide Back Panels (M) and (W) into position. Cam Lock STEP 10 Attach Back Rails (L) and (V) to unit.
  • Page 6 Assembly Instructions 6/8 STEP 11 Attach Shelf (J) and Front Rail (N) to unit with Cam Locks. Slide Back Panels (M) and (W) into position. Cam Lock Cam Lock STEP 12 Attach Side Panel (T) to unit with Cam Locks. Dowel Wood Screw for Arm Dowel...
  • Page 7 Assembly Instructions 7/8 STEP 14 Cam Lock Attach unit from Step 13 to base unit with Head Cap Bolts (long). Attach Divider (R) to unit. Attach Top (K) to unit with Cam Locks. Head Cap Bolt (long) Wood Screw for Back Panel STEP 15 Level unit by adjusting the adjustable levelers on...

  • Page 8: Hardware List

    Assembly Instructions 8/8 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 16 Anchor in wall Wall Screw Pre-drilled hole Bracket Place unit at desired location. on wall at top of unit 3/8”...
  • Page 9 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
