IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

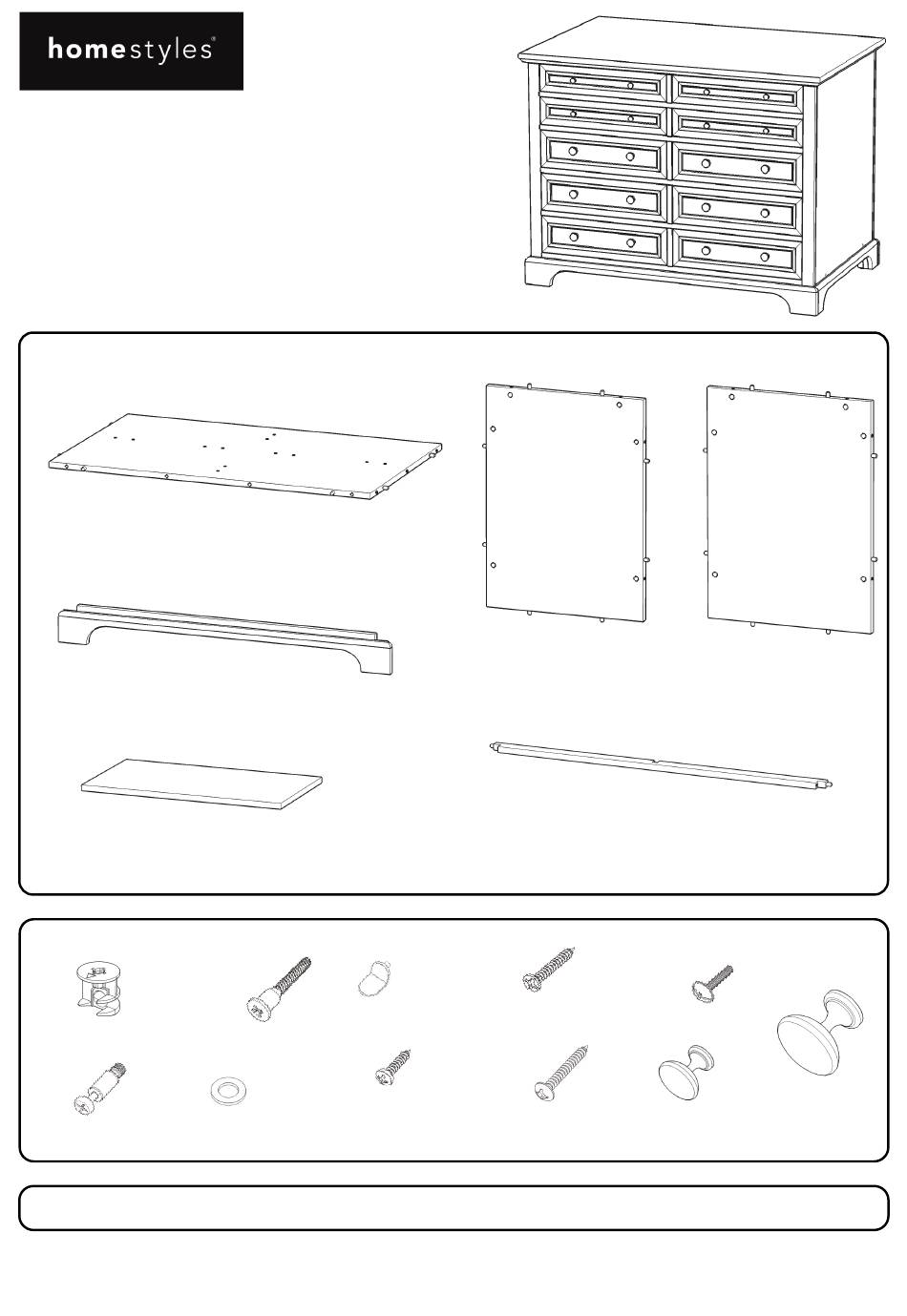

Part List
B.
Bottom
1 pc.
C.
Plinth
2 pcs.
F.
Shelf
6 pcs.
Hardware List
Cam Lock
40 pcs. (+6 extra)
Cam Lock Screw
40 pcs. (+2 extra)
Cartons 88 5530 941, 943 are also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5530 942
Storage Island
M6x35
Adjustable Pin
Bolt
24 pcs. (+1 extra)
6 pcs. (+1 extra)
M3.5x16
Wood Screw (short)
for Drawer Bottom
Flat Washer
60 pcs. (+1 extra)
6 pcs. (+1 extra)
D.
Back Panel
1 pc.
G.
Front Rail
4 pcs.
M3x25
Wood Screw for
Side Panels
4 pcs. (+1 extra)
M3.5x25
Wood Screw (long)
for Drawer Side
80 pcs. (+1 extra)
888-680-7460, 877-831-0319
E.
Back Panel
1 pc.
M4x28
Machine Screw
20 pcs.
Knob (large)
12 pcs.
Knob (small)
8 pcs.
Advertisement
Table of Contents
Related Manuals for Homestyles Naples 5530-940
Summary of Contents for Homestyles Naples 5530-940
- Page 1 60 pcs. (+1 extra) 40 pcs. (+2 extra) 6 pcs. (+1 extra) 8 pcs. 80 pcs. (+1 extra) Cartons 88 5530 941, 943 are also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the screws until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/7 STEP 2 Attach Back Panels (D) and (E) to Middle Panel (J) with Cam Locks. (See Figure 2) Attach Front Rails (G) to unit. Figure 2 Cam Lock Bolt Flat Washer STEP 3 Attach Bottom (B) to unit with Flat Washers and Bolts.
- Page 4 Assembly Instructions 4/7 Cam Lock STEP 4 Attach Plinths (C) to unit with Cam Locks. Attach Leg Support (K) to unit. Wood Screw Cam Lock Wood Screw for Side Panel for Side Panel STEP 5 Attach Side Panels (H) and (I) to unit with Cam Locks and Wood Screws for Side Panel.
- Page 5 Assembly Instructions 5/7 Cam Lock STEP 6 Attach Top (A) to unit with Cam Locks. Level unit by adjusting the adjustable levelers on the bottom of unit. (See Figure 4) Note: Unit must be level to work properly. Figure 4 STEP 7 Insert Adjustable Pins into side panels and middle panel at desired level, then...
- Page 6 Assembly Instructions 6/7 Drawer (L) STEP 1 Attach Drawer Front (L1) and Drawer Back (L2) to Drawer Side (L3) with Wood Screws (long). Attach Drawer Side (L4) to unit with Roller at back Wood Screws (long). STEP 2 Slide Drawer Bottom (L5) into the grooves of Drawer Sides (L3) and (L4) until it meets Drawer Front (L1).
- Page 7 Assembly Instructions 7/7 Drawer (M) STEP 1 Attach Drawer Front (M1) and Drawer Back (M2) to Drawer Side (M3) with Wood Screws (long). Attach Drawer Side (M4) to unit with Wood Screws (long). Roller at back STEP 2 Slide Drawer Bottom (M5) into the grooves of Drawer Sides (M3) and (M4) until it meets Drawer Front (M1).
- Page 8 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
