SOFT TOP ROOF KIT
P/N 2879039
Application
MY 13 Ranger 900 XP
Before you begin, read these instructions twice and check to be sure all parts and tools are accounted for. Please
retain these installation instructions for future reference and parts ordering information.
This Kit Includes:
Qty
Part Description
1....... Roof, Canvas
1....... Metal Header Strip
4....... M8 Nylok Nut
4....... Snap
4....... #6 Machine Screws
4....... #6 Nut
4....... M8 Bolt, Allen Head
1....... Instructions
Tools Required:
Socket
Phillips Screwdriver
Additional Service Kits Available to Order:
Qty
Part Description
1....... KIT-SVC,ROOF,HDWR,BESTOP,TTN
(Includes hardware for header
and snaps for rear of roof)
1....... KIT-SVC,ROOF,HEADER
(Includes front stamped section
of roof and hardware)
IMPORTANT: For your safety, and to ensure a satisfactory installation, perform all installation steps
correctly in the sequence as shown on the attached instructions. Please wear safety glasses while
performing the steps in the following instructions.
INSTALLATION INSTRUCTIONS

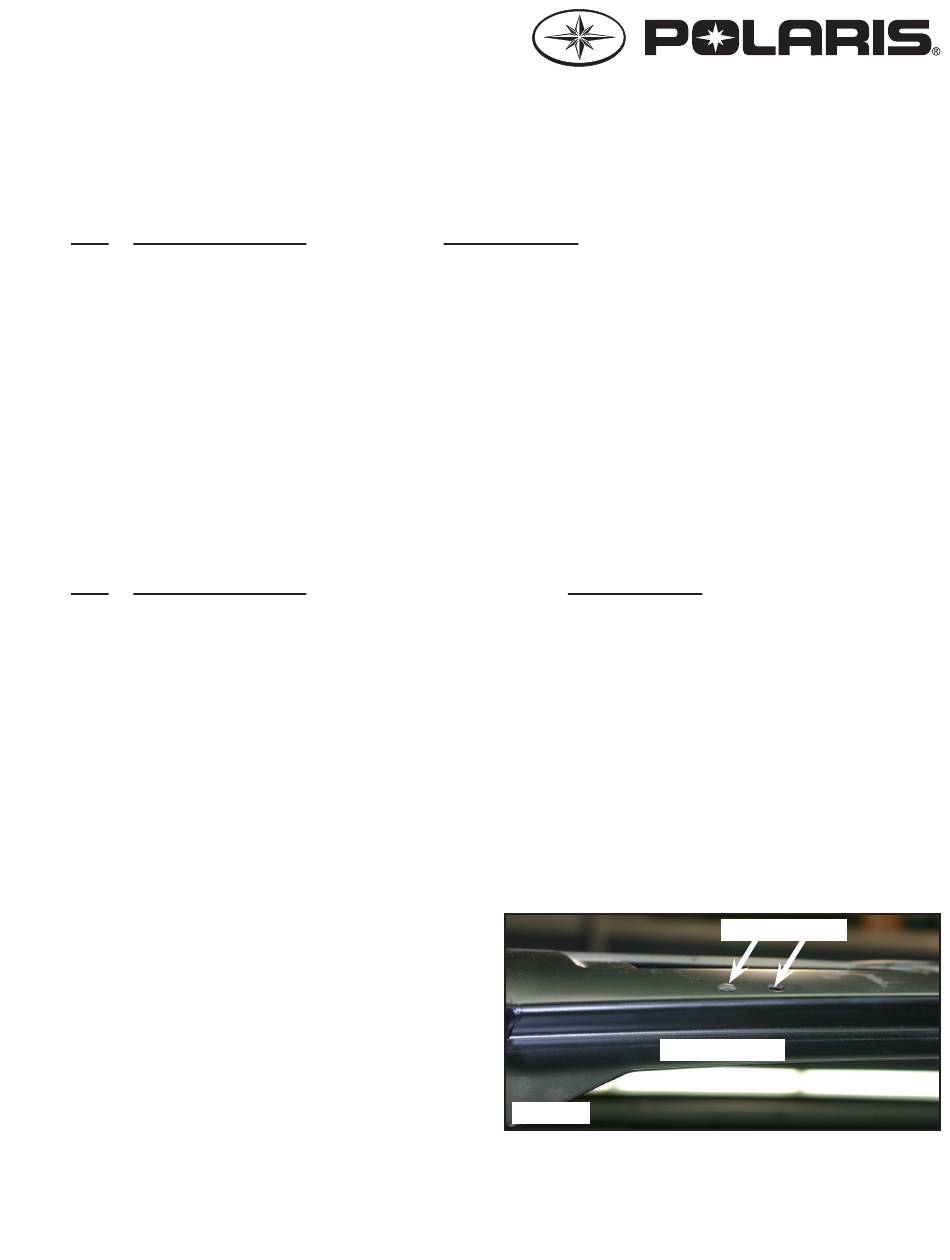

1. Remove four frame plugs from front of vehicle, two
on each side. Figure 1.
Part Number
9924226
Torx Wrenches
-1-
Metric End Wrenches
Part Number
2204809
2204808
Front Frame
Figure 1
Frame Plugs
