Building Instruction 120.830
Running worker with wheelbarrow
7
5
12

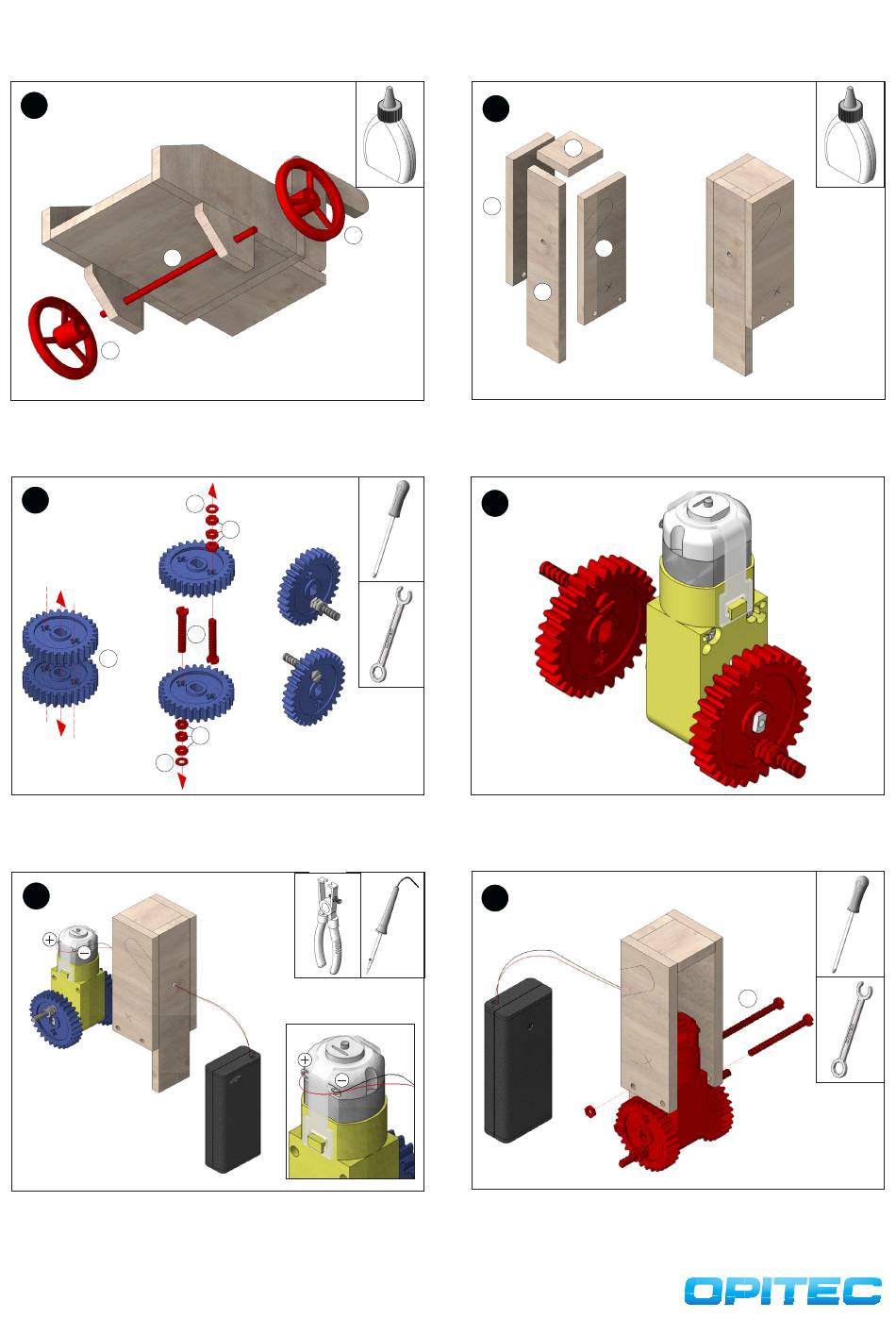

Slide the metal axle (5) through the holes in the axle brackets and
attach a steering wheel (12) from both sides.
9
7
15
Place the gear wheels on top of each other so that the cross openings are
aligned. Then insert a screw (9) as shown. Unscrew 3 nuts each from the
opposite side and attach a washer (15). (important, otherwise the offset is
not 180 °.
11
Lead the cables of the battery holder (5) from the front through the
hole in the body. As can be seen in detail, solder on the motor connec-
tions.
3
12
15
13
9
13
Detail
8
1k
1h
1h
1g
Glue together the wooden parts (1g, 1h, 1k) to the body of the worker
as shown above.
Note: The holes in the side panels must be exactly aligned
(Insert screws).
10
Then attach the gears to the axles of the gearbox as shown above.
Note: Screws must be offset by 180 °!
12
Then fix the thread in the body as shown with the two screws (8) and
two nuts (13).
8
