Building Instruction 120.830
Running worker with wheelbarrow
1

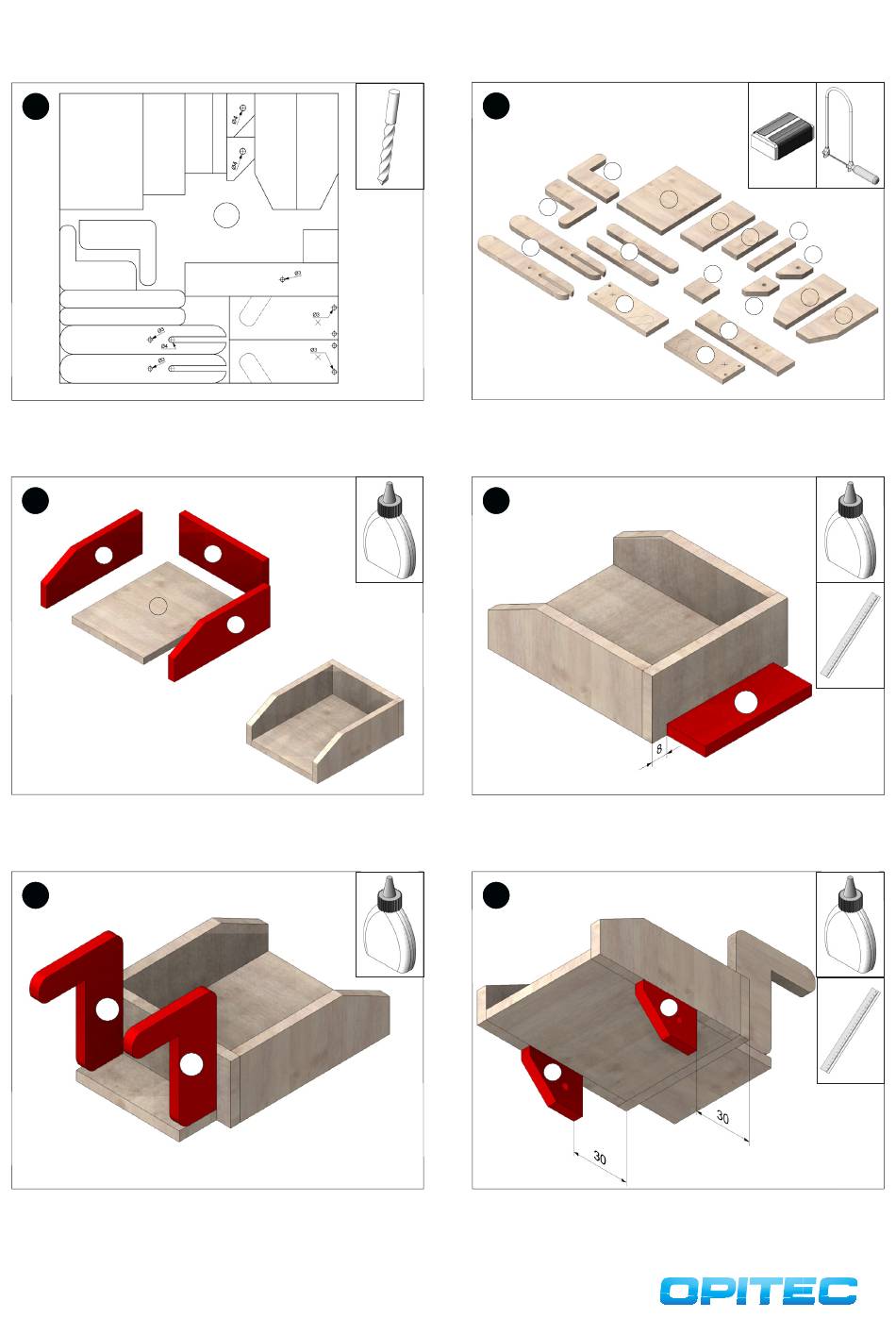

Transfer the template (page 5) to the base plate (1). Drill all holes (ø3,
ø4mm).
3
1b
1a
Glue together the upper part of the wheelbarrow from the individual
parts (1a, 1b, 1c) as shown.
5
1f
Apply the handles of the wheelbarrow (1f).
2
1
1c
1b
1f
2
ø2
ø3
1f
1i
Saw off all parts and clean with sandpaper.
4
From the side edge, measure 8mm on both sides as shown and glue
the wooden strip (1d) as shown. Let the glue dry well.
6
1e
Glue the axle rods (1e) according to dimensions as shown. Let the glue
dry well.
Note: For alignment, the axle can be inserted through the holes.
1f
1a
1c
1d
1j
1k
1h
1e
1g
1h
1d
1e
1l
1e
1b
1b
