Section 5: Electrical Connections

PWRcell Inverter Wiring Compartment

B
A PWRcell DC Disconnects
B REbus Bi-directional DC Terminals
C
Internet Connection
D
DC Main Fuses
E Current Transformers (CTs) Accessory Ports
F Automatic Transfer Switches (ATS) Accessory Port M Grounding Bar
G REbus Beacon Port
Installation Manual for Generac PWRCell Inverter
A
D
C

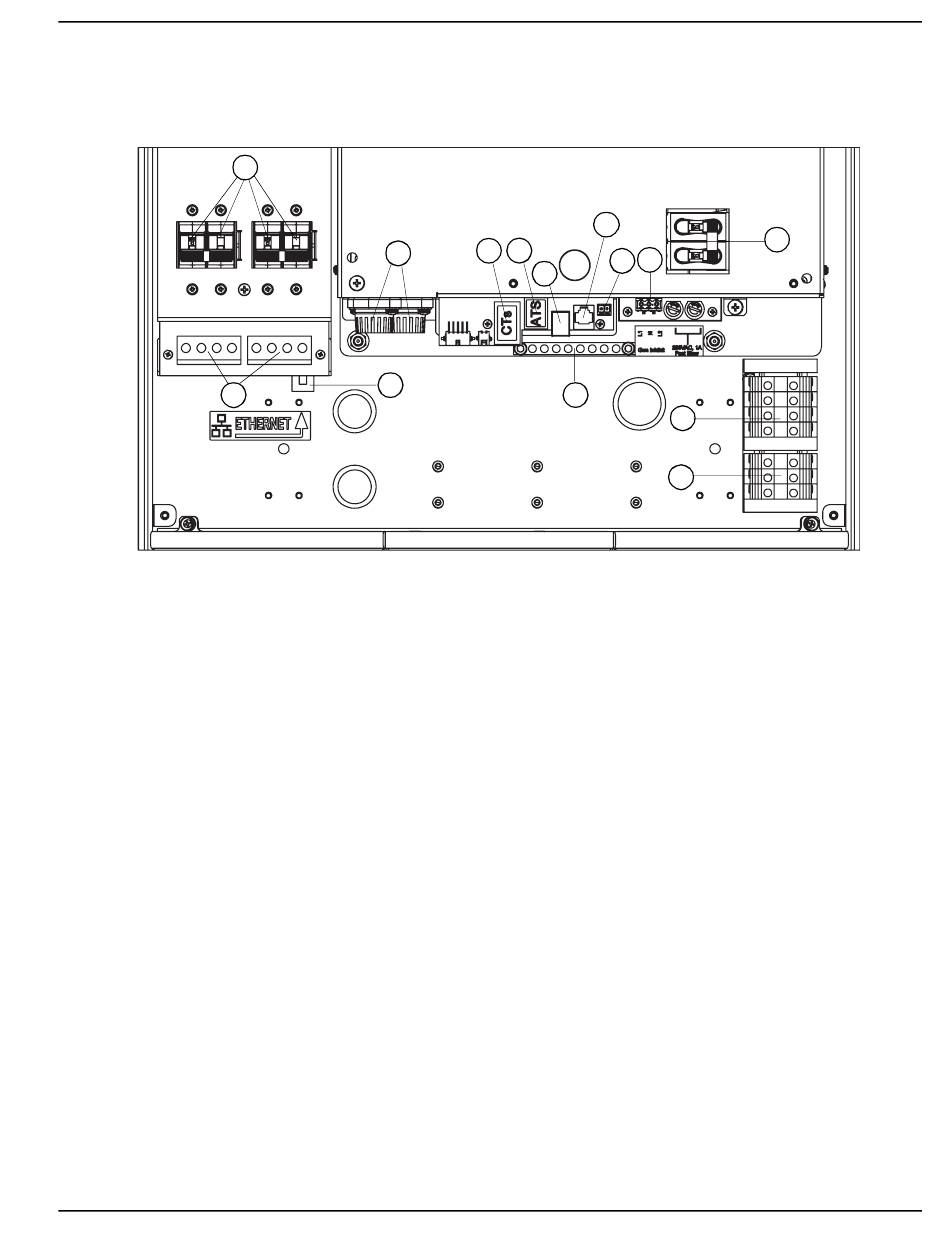

Figure 5-1. PWRcell Inverter Wiring Compartment
H
E F
N
I
G
M
H Authorized Generac Personnel Only
I STOP Terminals
J
Protected Loads Disconnect
K
AC Grid Connection Terminals
L Protected Loads Terminals
N RGM PWR Gen Inhibit
Electrical Connections
J
K
L
011235
