StartUSB for AVR
VCC
R1
10K
J3 J1
LD2
R41
4K7

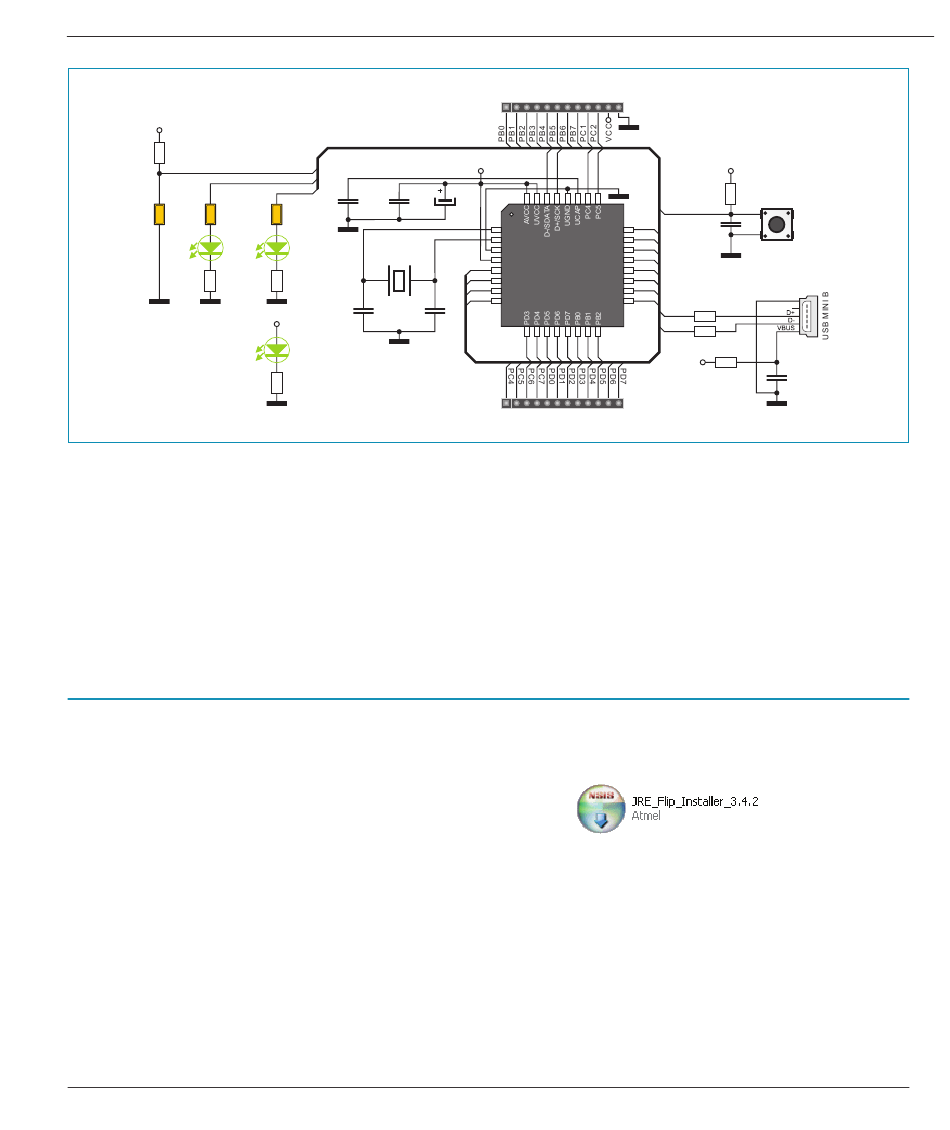

Figure 2: The StartUSB for AVR development system connection schematic
How to program the microcontroller?
A .hex code is loaded into the microcontroller via the bootloader program stored in the microcontroller memory. The
Atmel FLIP application is used to transfer the .hex code from the PC to the microcontroller.
Follow the steps below in order to program the microcontroller properly:
STEP 1: Install Atmel FLIP
Download the Atmel FLIP program from Atmel's website at:
http://www.atmel.com/dyn/products/tools_card.asp?tool_id=3886 (FLIP 3.4.2 for Windows (Java Runtime Environment
included))
After download is completed double click on the FLIP installation icon
Follow on-screen instructions and install the program on your PC.
PD7
PD5
PD6
C13 C24
2.2uF 100nF
J2
LD3
X1
8MHz
R15
2K2
C10 C 1 1
VCC
22pF 22pF
LD1
POWER
R3
4K7
CN3
VCC
E5
10uF
XTAL1
RESET/PC1
PC0(XTAL2)
PC6
GND PC7
VCC PB7
AT90USB162
PC2 PB6
PD0
PB5
PD1
PB4
PD2 PB3
CN4
VCC
R17
RESET
10K
RESET
C 14
100nF
T1
CN2
R26 27
D-
USBDP
USBDN
D+
R27 27
VCC
C15
FB1
FERRITE
100nF
MikroElektronika
