5) DMX CONTROLLED:

The projector can be controlled by any standard DMX-controller in different DMX-modes.
To do this, you need to set the desired start address and dmx mode for each unit
• Press the [MENU] button until the display shows [dMH]
• Press the [ENTER] button
• Use the [UP] or [DOWN] buttons to select the DMX mode you want to use. [03Ch], [05Ch] or [LC02]
(check the DMX charts below for more information about these DMX modes)
• Press the [ENTER] button
• Use the [UP] or [DOWN] buttons to select the desired DMX address
Some more information on DMX512:

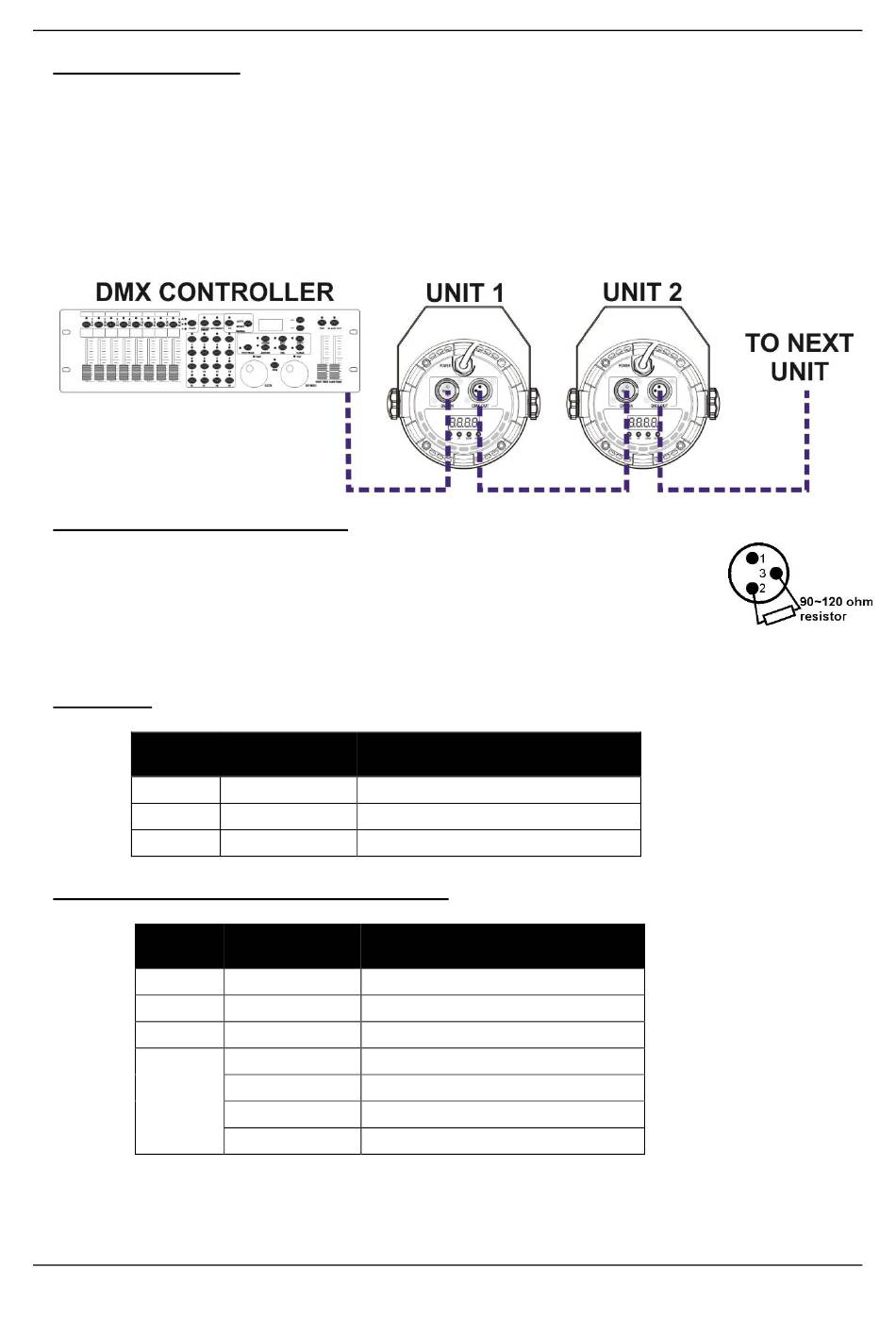

The DMX-protocol is a widely used high speed signal to control intelligent light
equipment. You need to "daisy chain" your DMX controller and all the connected light
effects with a good quality XLR M/F balanced cable. To prevent strange behavior of
the light effects, due to interferences, you must use a 90Ω to 120Ω terminator at the
end of the chain. Never use Y-splitter cables, this simply won't work!
Each effect in the chain needs to have its proper starting address so it knows which commands from the
controller it has to decode.
03CH Mode:
DMX
Channel
1
2
3
LC-02 Mode: To be used with the Ledcon-02 Mk2
DMX
Channel
1
2
3
4
JB SYSTEMS®
DMX-value
000-255
000-255
000-255
DMX-value
000-255
000-255
000-255
000-190
191-200
201-247
248-255 Master Dimmer 100% (full on)
5/6
function
Red color dimmer
Green color dimmer
Blue color dimmer
function
Red color dimmer
Green color dimmer
Blue color dimmer
Master Dimmer
Sound
Strobe Slow to fast
