IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
D.
Back Panel
1 pc.
G.
Shelf
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05149 0001

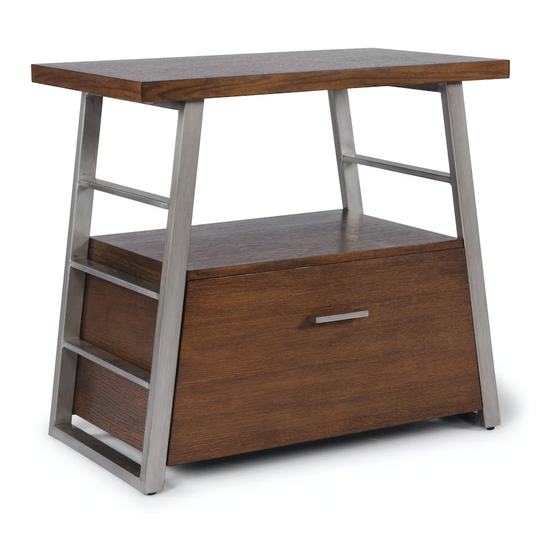

File Cabinet
E.
Side Frame
1 pc.
M6x16
Head Cap Bolt
Spring Washer
4 pcs. (+1 extra)
4 pcs. (+1 extra)
M6x28
M3x25
Tapered Bolt
Flat Head Screw
8 pcs. (+1 extra)
28 pcs. (+1 extra)
B.
Side Box
1 pc.
H.
Drawer
1 pc.
Refer to later page(s) of these
instructions for rawer assembly.
F.
Side Frame
1 pc.
Flat Washer
4 pcs. (+1 extra)
Dowel
6 pcs. (+1 extra)
888-680-7460, 877-831-0319
C.
Side Box
1 pc.
d
I.
Metal Strip
2 pcs.
M4x32
Machine Screw
2 pcs.
Handle
1 pc.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 05149 0001
Summary of Contents for Homestyles 20 05149 0001
- Page 1 Small Hex Wrench Tapered Bolt Flat Head Screw Dowel Handle 1 pc. 8 pcs. (+1 extra) 28 pcs. (+1 extra) 6 pcs. (+1 extra) 1 pc. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ The unit must be level to work properly. Use the included adjustable levelers to level. Ÿ...
- Page 3 Assembly Instructions 3/5 Flat Washer Spring Washer Head Cap Bolt Tapered Bolt STEP 2 Attach Side Frames (E) and (F) to unit with Tapered Bolts, tightening bolts only halfway. Attach Top (A) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway.
- Page 4 Assembly Instructions 4/5 Drawer (H) Flat Head Screw Arrow label to front STEP 3 Attach Drawer Sides (H4) and (H5) to Drawer Back (H3) with Flat Head Screws. Slide Drawer Bottom (H6) into groove. Attach Drawer Front (H2) to unit with Flat Head Screws.
- Page 5 Assembly Instructions 5/5 STEP 6 Turn unit from Step 2 to its’ upright position. Slide Drawer (H) into position. Note: To remove Drawer (H) in future, push plastic lever on left side up, push plastic lever on right side down and pull open. (See Figures 2 and 3) Place Metal Strips (I) into position.
- Page 6 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
