Hytronik HIR23/D2 Installation And Instruction Manual

Installation and Instruction Manual

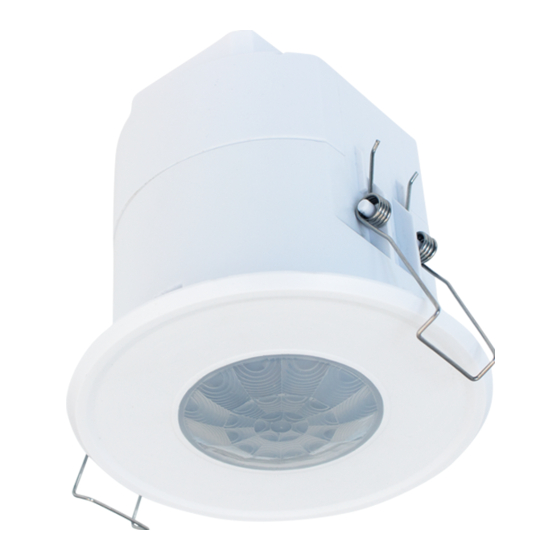

PIR Motion Sensor
D A L I
1. Technical Specifications
Sensor Model
HIR23/D2
HIR23/D2/R
HIR23/D2/W
HIR23/D2/H
HIR23/D2/RH
Lux reading range
Detection angle
Operating voltage
Consumption DALI
BUS current
Identify device
Warming-up
EMC standard (EMC)
DALI
RED
Certification
Operation temperature
IP rating
PIR detection
Installation Height : 6m
Detection Range(Ø) :9m
Installation Height : 6m
Detection Range(Ø) :10m
Installation Height : 6m
Detection Range(Ø) :18m
Installation height：15m (forklift)
12m (person)
Detection range (Ø)：24m
Installation height：20m (forklift)
12m (person)
Detection range (Ø)：40m
< 1000 lux
360º
9.5~22.5VDC
Max. 10 mA(no LED)
Max. 12 mA(with LED)
Red LED flashes 15S
5s
EN55015, EN61000, EN61547
IEC60386-101, 103, 303, 304
EN300328, EN301489-1/-17
CE , REACH, UKCA, RCM, ROHS
compliance
Ta: -20ºC ~ +50ºC
IP20
HIR23/D2 HIR23/D2/R
HIR23/D2/W HIR23/D2/H HIR23/D2/RH

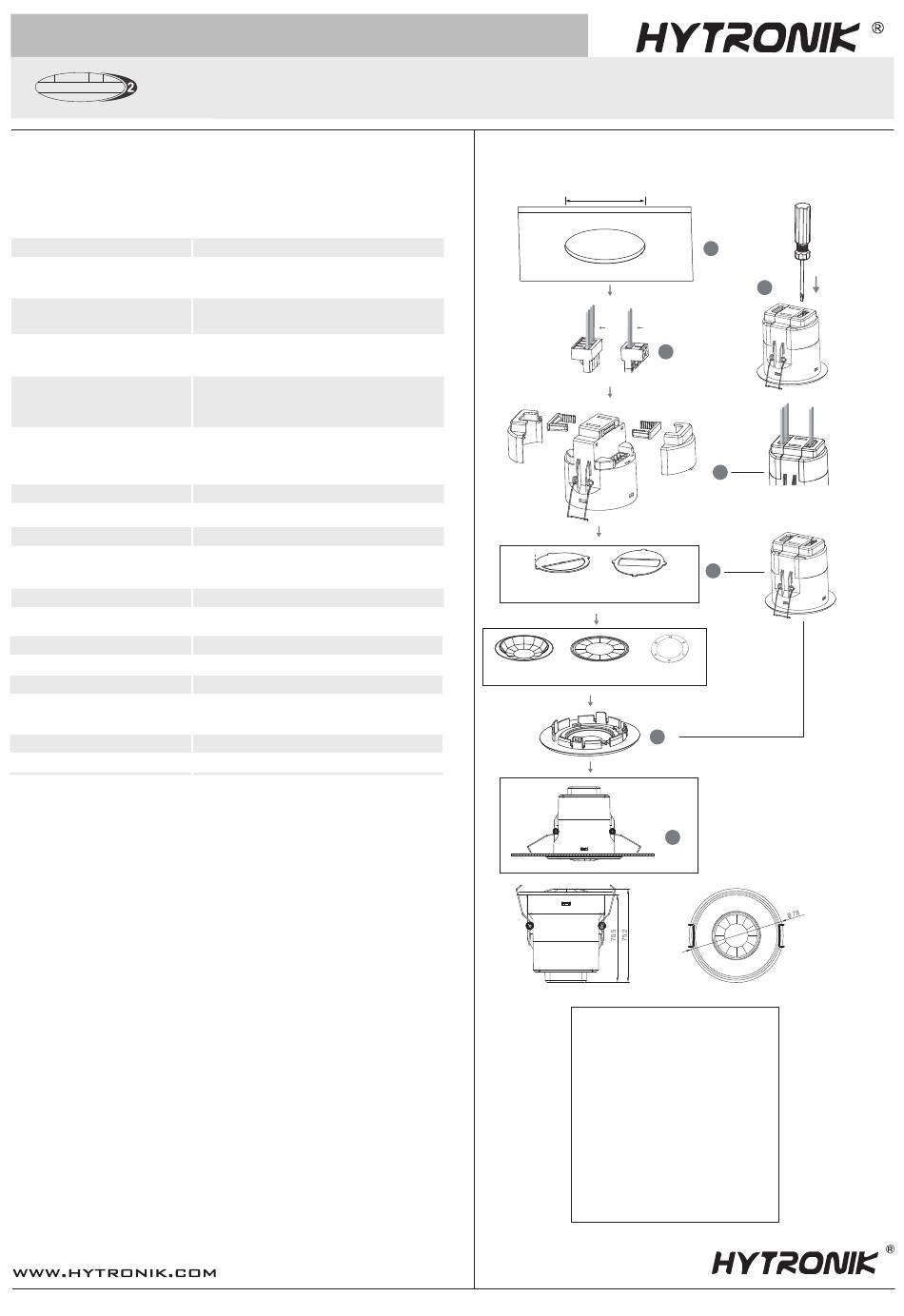

2. Installation
Mechanical Structure & Dimensions
Ø 66~68mm
A B
* Install blind as required
1 2
* Install lens as required
62.2
1. Ceiling (drill hole φ66~68mm)
2. Carefully prise off the cable clamps.
3. Make connections to the pluggable
terminal blocks.
4. Insert plug connectors and secure using
the provided cable clamps, then clip
terminal covers to the base.
5. Fit detection blind (if required) and
desired lens.
6. Clip fascia to body.
7. Bend back springs and insert into ceiling.
1
2
3
4
5
3
6
7
