Installation and Instruction Manual
FLUSH MOUNT PIR MOTION SENSOR
Two DALI Channels Output
1. Technical Specifications
Mains voltage
Stand-by power
DALI Channel 1
DALI Channel 2
Warming-up
Sensor principle
Detection range (Max.)*
HIR32
Detection range (Max.)*
HIR32/R
Detection range (Max.)*
HIR32/H
Detection range (Max.)*
HIR32/RH
Detection angle
Operation temperature
IP rating
EMC standard (EMC)
Safety standard (LVD)
Certification

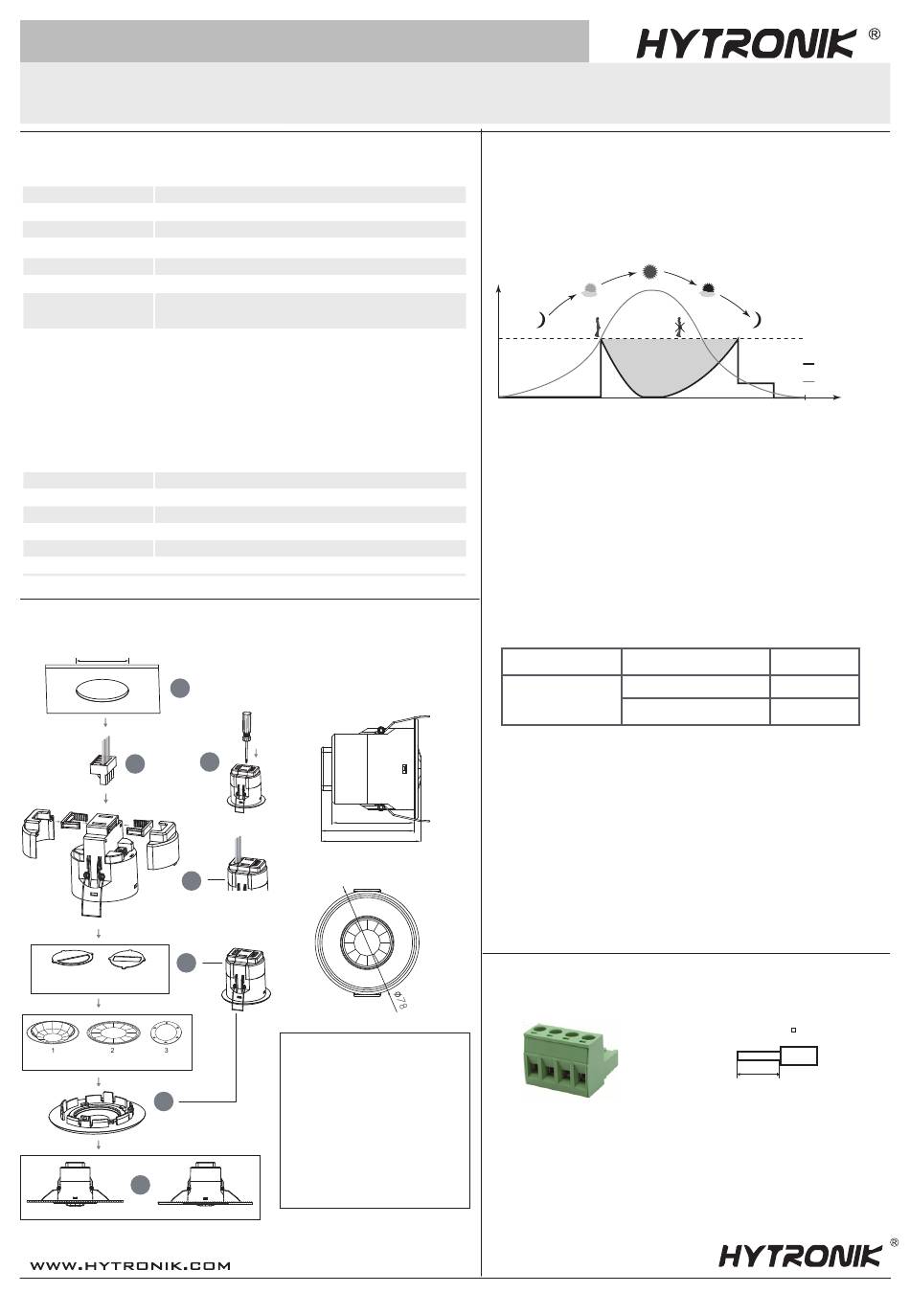

2. Installation

65mm
1
3
4
5
A B
* Install blind as required
* Install lens as required
6
7
1
220~240VAC 50/60Hz
<0.5W
Max. 25pcs devices, 50mA
Max. 15pcs devices, 30mA
Appr. 20s
PIR detection
Installation Height : 6m
Detection Range (Ø) :9m
Installation Height : 6m
Detection Range(Ø): 10m
Installation height： 15m (forklift)
12m (person)
Detection range (Ø): 24m
Installation height： 15m (forklift)
12m (person)
Detection range (Ø)：40m
360°
Ta: -20°C ~ +50°C
IP20
EN55015, EN61000
EN60669, AS/NES60669
CB, CE , EMC, RCM
2
62
70.5
75.2
1. Ceiling (drill hole 65mm)
2. Carefully prise off the cable clamps.
3. Make connections to the pluggable
terminal blocks.
4. Insert plug connectors and secure using
the provided cable clamps, then clip
terminal covers to the base.
5. Fit detection blind (if required) and
desired lens.
6. Clip fascia to body.
7. Bend back springs and insert into ceiling.
2

3. Functions

3.1 Daylight Harvest (Daylight Regulating)
Daylight sensor measures the available surrounding natural light, calculates how much electrical light is
needed to reach the total lux expected. The demand is given to the LED driver by DALI signal, so as to
deliver the needed amount of electric light.
Light level
Energy Saving Zone
0
3.2 Lux Off Function
The built-in daylight sensor can measure ambient natural light and switch off the fixture
automatically whenever artificial light is not required (natural light lux level exceeds daylight
threshold).
3.3 Dual DALI Output Control
Two channels of self-powered DALI output are available on HIR32 for connection of two groups of
LED drivers. Please note that both channels share the same control settings sent from the occupancy
sensor and photocell.
System Capacity
DALI PSU Channel 1 (max 50mA)
HIR32 includes 2 channels
total 80mA max. DALI PSU
DALI PSU Channel 2 (max 30mA)
3.4 Manual Override (Push Function)
Three push terminals (P1, P2, P3) are available on the HIR32 for end-users to switch on/off, change the
light brightness, colour temperature of the two DALI channels temporarily. The settings will revert to
daylight harvest mode after sensor time-out.
* Long push on P1: adjust the hold-time light brightness of DALI channel 1;
Short push (<1s) on P1: on/off function
* Long push on P2: adjust the hold-time light brightness of DALI channel 2;
Short push (<1s) on P2: on/off function
* Long push on P3: cycles through colour tuning on both channels. (work with DT8 LED driver only)
Short push (<1s) on P3: resume automatic daylight harvest mode .
Wire Preparation
Pluggable screw terminal. It is recommended to make
connections to the terminal before fitting to the sensor.
HIR32 HIR32/R
HIR32/H HIR32/RH
Hold time
Normal Electric Light
Daylight controlled light
Stand-by time
Natural light
24
Time (hrs)
DALI channel DALI Driver < 2mA
25 pcs
15 pcs
0.75 - 2.5mm
8mm
(min 6mm, max 11mm)
HIR32-20210813-A0
