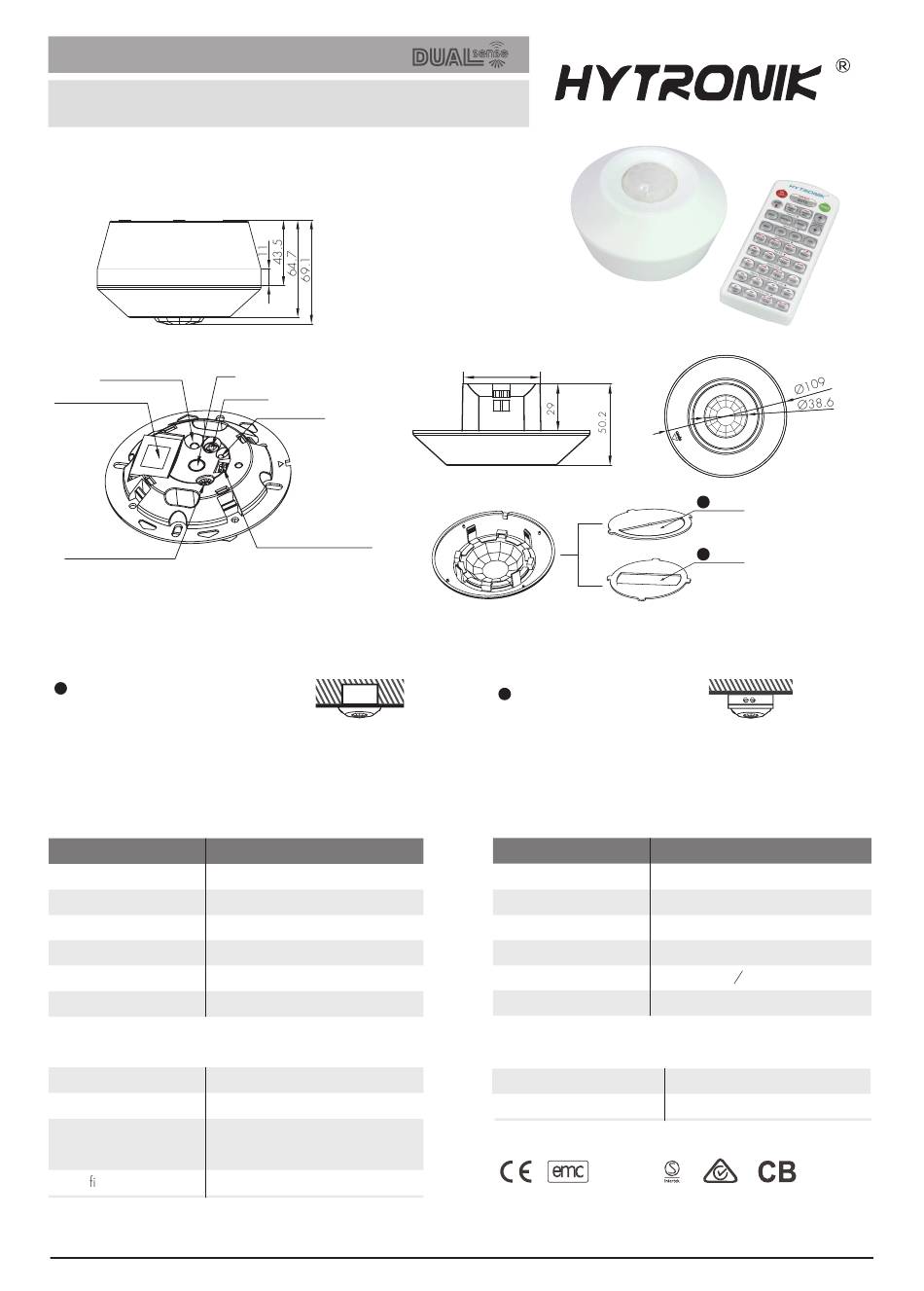

Stand-alone Dual Sense Motion Sensor
HIM12
HF and PIR, daylight harvest with Remote Control
Mechanical Structure
C - Surface box
B - Facia Cover
PIR
Infrared receiver
Photocell
HF Sensor module
A - Control Board
Installation:
For more details, please refer to user manual.
Direct junction "J" box mounting
1
Note:We recommend the mounting distance between sensor to sensor should be more than 2m to prevent sensors
from false-triggering.
Technical Data
Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
Capacitive
400VA@120V; 800VA@220 -277V
Resistive
700W@120V; 1600W@220 -277V
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
Semko, CB, CE , EMC, RED, RCM
Subject to change without notice.
LED indicator
Sensor mode selection
HIM12
120~277VAC 50/60Hz
<1W
30s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489-1,
EN62479
TM
56
Note: the blinds are optional, they may be inserted
behind the lens for focussing the detection range.
Surface mount assembly
2
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Sensor mode
Detection angle
Environment
Operation temperature
IP rating
RED
Edition: 26 Feb. 2020
A
Blind
B
Blind
HIM12
High Frequency (microwave), PIR
5.8GHz +/- 75MHz (HF)
<0.2mW (HF)
4 modes: PIR, HF, PIR+HF, PIR/HF
Max. ( O x H) 12m x 6m
360
O
Ta: -20
O
C ~ +55
O
C
IP20
IP20
Ver. A0
Page 1/6
