TM

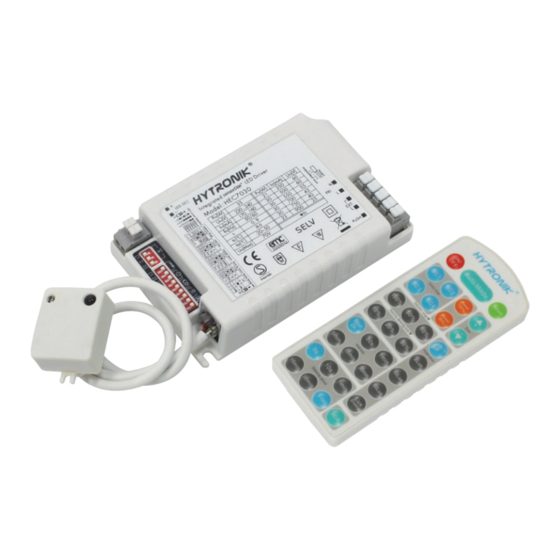

SensorDIM
- Integrated HF Sensor and LED Driver
HEC7030
Detached Version with Daylight Mornitoring and Photocell Advance
Applications
Occupancy sensor and constant current LED driver, 2-in-1.
Suitable for building into the xture for:
Of ce / Commercial Lighting
Classroom
Meeting Room
Use for retro t and new luminaire designs/installations
Features
24 hour daylight monitoring dawn/dusk sensor
Daylight
Monitoring
Special photocell to measure and differentiate natural light from LED light from behind the xture cover
Photocell Advance
One-touch daylight learning via remote control
Ambient daylight
threshold
Tri-level dimming control based upon occupancy (also known as corridor function)
TM
Easy-on-the-eye operation which makes the light turning on/off less uncomfortable
DIP switch offers multiple current selections for different luminaire requirements
5-Year Warranty
Technical Data
Input Characteristics
Model No.
Mains voltage
Input current
Input power
Warming-up
Driver Data
Off load voltage
Power factor
Ef ciency
Output current
350/500/550/700/750/900mA
Safety and EMC
EMC standard (EMC)
EN55015, EN61547, EN6100-2/3
Safety standard (LVD)
Dielectric strength
Input
Abnormal protection
Certi cation
Subject to change without notice.
HEC7030
220~240VAC 50/60Hz
0.17 - 0.16A
35W
20s
70V
>0.9
85% (Max.)
EN61347-1, EN61347-2-13
output: 3750VAC / 5mA /1min
→
Output short-circuit protection
Semko, CB, CE , EMC, RED, RCM
TM
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Detection range
Detection angle
Setting adjustments:
Sensitivity
Hold time
Daylight threshold
Stand-by period
Stand-by dimming level
Environment
Operation temperature
Case temperature (Max.)
IP rating
RED
Edition: 26 Feb. 2020
HEC7030
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
Max. ( O x H) 8m x 5m
30
O
~ 150
O
Sensor OFF / 50% / 75% / 100%
5s ~ 10min (selectable)
5 ~ 50 lux, disabled
0s / 10s / 30min / +∞
10% / 30%
Ta: -20
O
C ~ +50
O
C
O
Tc: +75
C
IP20
IP20
Ver. A0
Page 1/8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hytronik SensorDIM HEC7030
Summary of Contents for Hytronik SensorDIM HEC7030
- Page 1 SensorDIM - Integrated HF Sensor and LED Driver HEC7030 Detached Version with Daylight Mornitoring and Photocell Advance Applications Occupancy sensor and constant current LED driver, 2-in-1. Suitable for building into the xture for: Of ce / Commercial Lighting Classroom Meeting Room Use for retro t and new luminaire designs/installations Features 24 hour daylight monitoring dawn/dusk sensor...
- Page 2 Number of Drivers Based upon 16A Circuit Breaker Loading and In-rush Current Model HEC7030 HEC7030 Cct Breaker Type Type B In-rush Current (Imax.) Pulse Time Conversion table for max. quantities of drivers on other types of Miniature Circuit Breaker MCB Type Rating Relative number of drivers MCB Type...
- Page 3 Function It’s well known that LED lights have a totally different spectrum to natural light. Hytronik uses this principle and comes up with special photocell and sophisticated software algorithm to measure and differentiate natural light from LED light from behind the xture cover, so that this photocell can ignore internal LED light and only respond to the natural light outside.
- Page 4 Master/Slave Group Control By connecting the “EXT” terminals in parallel (maximum 10pcs, see wiring diagram), no matter which sensor detects motion, all HEC7030 in the group will turn on the lights when surrounding natural light is below daylight threshold. The detection area is greatly enlarged in this way.
- Page 5 Dim +/ Long press “Dim +” or “Dim ” to adjust the light brightness during hold-time. “ + ” means dimming up, “ ” means dimming down. Auto Mode Reset Power Test mode 100% Scene mode This button is for testing purpose only. The sensor goes to test mode (hold-time is 2s) Power after commissoning, meanwhile the stand-by period and daylight sensor are disabled.
-
Page 6: Detection Pattern
Stand-by period (corridor function) Press the buttons of “stand-by period” to set stand-by period at 0s / 10s / 1min / 10min / 30min / +∞. * “0s” means on/off control; “+∞” means bi-level dimming control, light never switches off when daylight sensor is disabled. Stand-by dimming level Press the buttons of “stand-by dimming level”... - Page 7 Stand-by period (corridor function) This is the time period you would like to keep at the low light output level before it is completely switched off in the long absence of people. I – 0s II – 10s Note: “0s” means on/off control; III –...
- Page 8 Additional Information / Documents 1. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 2. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy Subject to change without notice.
