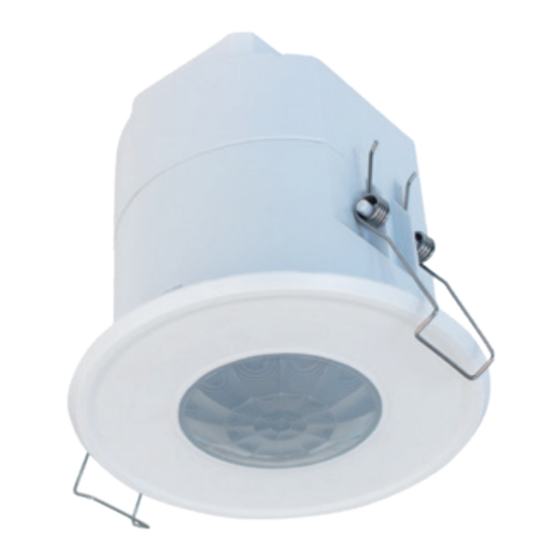

Hytronik HIR27 Quick Start Manual

Flush mount pir motion sensor
Hide thumbs Also See for HIR27:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

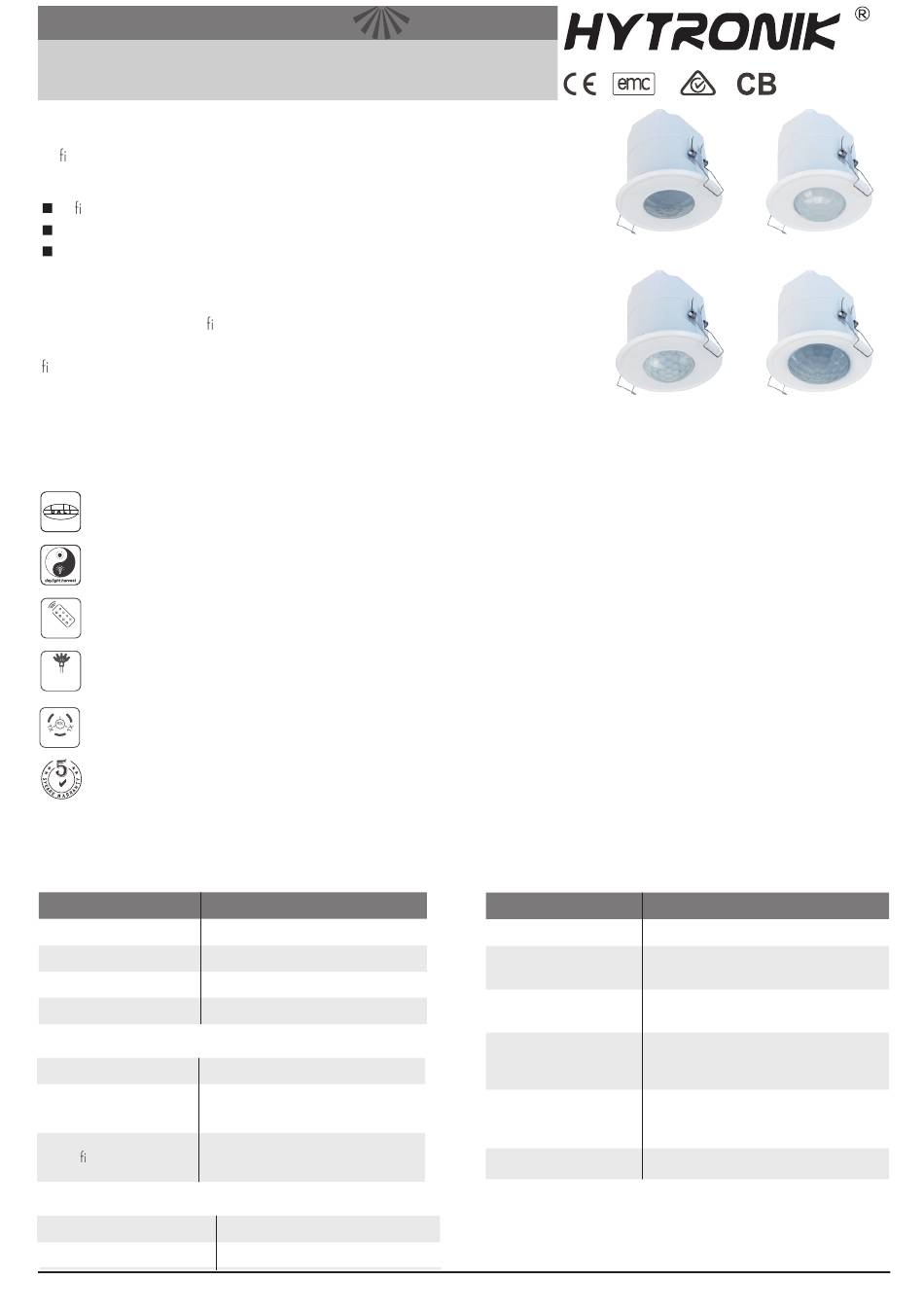

Flush Mount PIR Motion Sensor
HIR27
HIR27/R
Low-bay
Reinforced Low-bay
Applications
Of ce, classroom and commercial interior spaces where DALI control is required in
small groups.
Of ce / Commercial Lighting
Classrooms
Stairwells / Corridors
HIR27 with DALI Broadcast Output
Designed with a low pro le for aesthetically demanding architectural projects whilst
retaining the functionality expected of the latest lighting controls. Control to the light
xtures is provided via self-powered DALI communication (up to 40 drivers).
Set-up of the sensor is carried out using a remote control handset with program memory
allowing one-key commissioning where common settings are used for multiple devices.
Features
DALI dimming control based upon occupancy (also known as corridor function).
Daylight harvest function to regulate light output for maintaining required lux level.
Store settings in the remote for easy commissioning when programming multiple sensors.
One-Key
Commissioning
Intelligent photocell - lights and sensors only operate when needed, natural light has proirity.
Intelligent
Photocell
TX
Synchronisation terminal for grouping of sensors.
synchronization
control
5-year warranty
Technical Data
Input Characteristics
Model No.
Operating voltage
Stand-by power
Switched power
Max. 40pcs devices, 80mA
Warming-up
Safety and EMC
EMC standard (EMC)
EN55015, EN61000, EN61547
Safety standard (LVD)
Certi cation
Environment
Operation temperature
IP rating
Subject to change without notice.
PIR
HIR27/H
High-bay
HIR27
220~240VAC 50/60Hz
<0.5W
Appr. 20s
EN60669-1, EN60669-2-1,
AS/NES60669-1/-2-1
CB, CE , EMC, LVD, RCM
ROHS compliance
Ta: -20
O
C ~ +50
O
C
IP20
HIR27/RH
Reinforced High-bay
Sensor Data
Model No.
Sensor principle
Detection range (Max.)*
HIR27
Detection range (Max.)*
HIR27/R
Detection range (Max.)*
HIR27/H
Detection range (Max.)*
HIR27/RH
Detection angle
* For more details of detection range, please refer to "detection pattern" section.
Edition: 30 Jun. 2021
IP20
HIR27
HIR27/R
HIR27/H
HIR27/RH
(3-pyro)
HIR27
PIR detection
Installation Height : 6m
Detection Range( Ø ) :9m
Installation Height : 6m
Detection Range( Ø ) :10m
Installation height：15m (forklift)
12m (person)
Detection range (Ø)：24m
Installation height：15m (forklift)
12m (person)
Detection range (Ø)：40m
360
O
Ver. A0
Page 1/9

Advertisement

loading
Need help?

Need help?

Do you have a question about the HIR27 and is the answer not in the manual?

Questions and answers

Related Manuals for Hytronik HIR27

Summary of Contents for Hytronik HIR27

  • Page 1 Stairwells / Corridors HIR27 HIR27/R HIR27 with DALI Broadcast Output Designed with a low pro le for aesthetically demanding architectural projects whilst retaining the functionality expected of the latest lighting controls. Control to the light xtures is provided via self-powered DALI communication (up to 40 drivers).

  • Page 2: Mechanical Structure

    Mechanical Structure 65mm 70.5 75.2 1. Ceiling (drill hole 65mm) 2. Carefully prise off the cable clamps. 3. Make connections to the pluggable * Install blind as required terminal blocks. 4. Insert plug connectors and secure using the provided cable clamps, then clip terminal covers to the base.

  • Page 3: Wiring Diagram

    LED Driver LED Driver LED Driver Detection Pattern & Optional Accessories 1. HIR27 (Low-bay) HIR27: Low-bay at lens detection pattern for single person @ Ta = 20 (Recommended ceiling mount installation height 2.5m-6m) A: Tangential movement B: Radial movement Tangential (A)
  • Page 4 2. HIR27/R (Reinforced Low-bay) HIR27/R: Low-bay convex lens detection pattern for single person @ Ta = 20 (Recommended ceiling mount installation height 2.5m-6m) A: Tangential movement B: Radial movement Tangential (A) Radial (B) Mount height max 79m (Ø = 10m) max 20m (Ø...
  • Page 5 113m (Ø = 12m) insensitive sensitive insensitive sensitive HIR27/H: High-bay lens detection pattern for single person @ Ta = 20 (Recommended ceiling mount installation height 2.5m-12m ) Tangential (A) B: Radial movement Radial (B) A: Tangential movement Mount height max 50m (Ø...
  • Page 6 113m (Ø = 12m) insensitive sensitive insensitive sensitive HIR27/RH: Reinforced high-bay lens detection pattern for single person @ Ta = 20 (Recommended ceiling mount installation height 2.5m-12m) Tangential (A) B: Radial movement Radial (B) A: Tangential movement Mount height max 38m (Ø...
  • Page 7 Synchronisation Function By connecting the “SYNC” terminals in parallel (see wiring diagram), no matter which sensor detects motion, all HIR27 in the group will turn on the lights when surrounding natural light is below the daylight threshold. The detection area could be widely enlarged in this way.
  • Page 8 Settings (Remote Control HRC-11) Permanent ON/OFF function Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”, “RESET” to quit this mode. Reset Settings Press button “RESET”, all settings go back to default: Hold-time 5min, Daylight sensor 100Lux, Stand-by time: 10min, Stand-by dimming level: 20% Shift Button Press button “Shift”, the LED on the top left corner is on to indicate mode selection.
  • Page 9 Additional Information / Documents 1. Regarding precautions for PIR sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation 2. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy Subject to change without notice.
