Installation and Instruction Manual

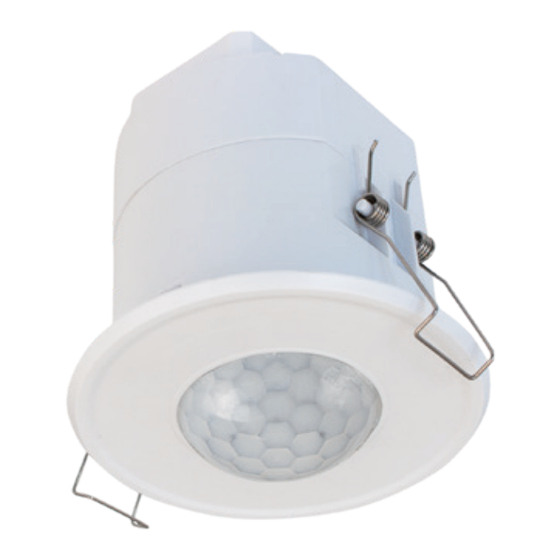

PIR Standalone Motion Sensor with
One DALI Channel Output
1. Technical Specifications
Operation frequency
Transmission power
Range (Typical indoor)
Protocol
Operating voltage
Stand-by power
Warming-up
Sensor principle
Detection range (Max.)*
HBIR30/CA
Detection range (Max.)*
HBIR30/CA/R
Detection range (Max.)*
HBIR30/CA/H
Detection range (Max.)*
HBIR30/CA/RH
Detection angle
Operation temperature
IP rating
EMC standard (EMC)
Safety standard (LVD)
Certification
RED
2. Download the App
Free smartphone App for set-up and commissioning
Subject to change without notice.
2.4 GHz - 2.483 GHz
Max 4 dBm
10~30m
4.0
220~240VAC 50/60Hz
<0.2W
20s
PIR detection
Installation Height : 6m
Detection Range (Ø) :9m
Installation Height : 6m
Detection Range(Ø) :10m
Installation height：15m (forklift)
12m (person)
Detection range (Ø)：24m
Installation height：15m (forklift)
12m (person)
Detection range (Ø)：40m
360
O
Ta:-20 O C~+50 O C
IP20
EN55015, EN61000, EN61547
EN60669-1, EN60669-2-1
CB, CE , EMC, LVD, RCM
EN300328, EN301489-1,
EN301489-17
Download on the
App Store
HBIR30/CA HBIR30/CA/R
Mesh
HBIR30/CA/H HBIR30/CA/RH
3. Installation
Mechanical Structure & Dimensions
Ø 66~68mm
A
* Install blind as required
1 2
* Install lens as required
1
1. Ceiling (drill hole φ66~68mm)
2. Carefully prise off the cable clamps.
3. Make connections to the pluggable
terminal blocks.
4. Insert plug connectors and secure using
the provided cable clamps, then clip
terminal covers to the base.
5. Fit detection blind (if required) and
desired lens.
6. Clip fascia to body.
7. Bend back springs and insert into ceiling.
1 2
3
4
5
B
3
6
7
2
