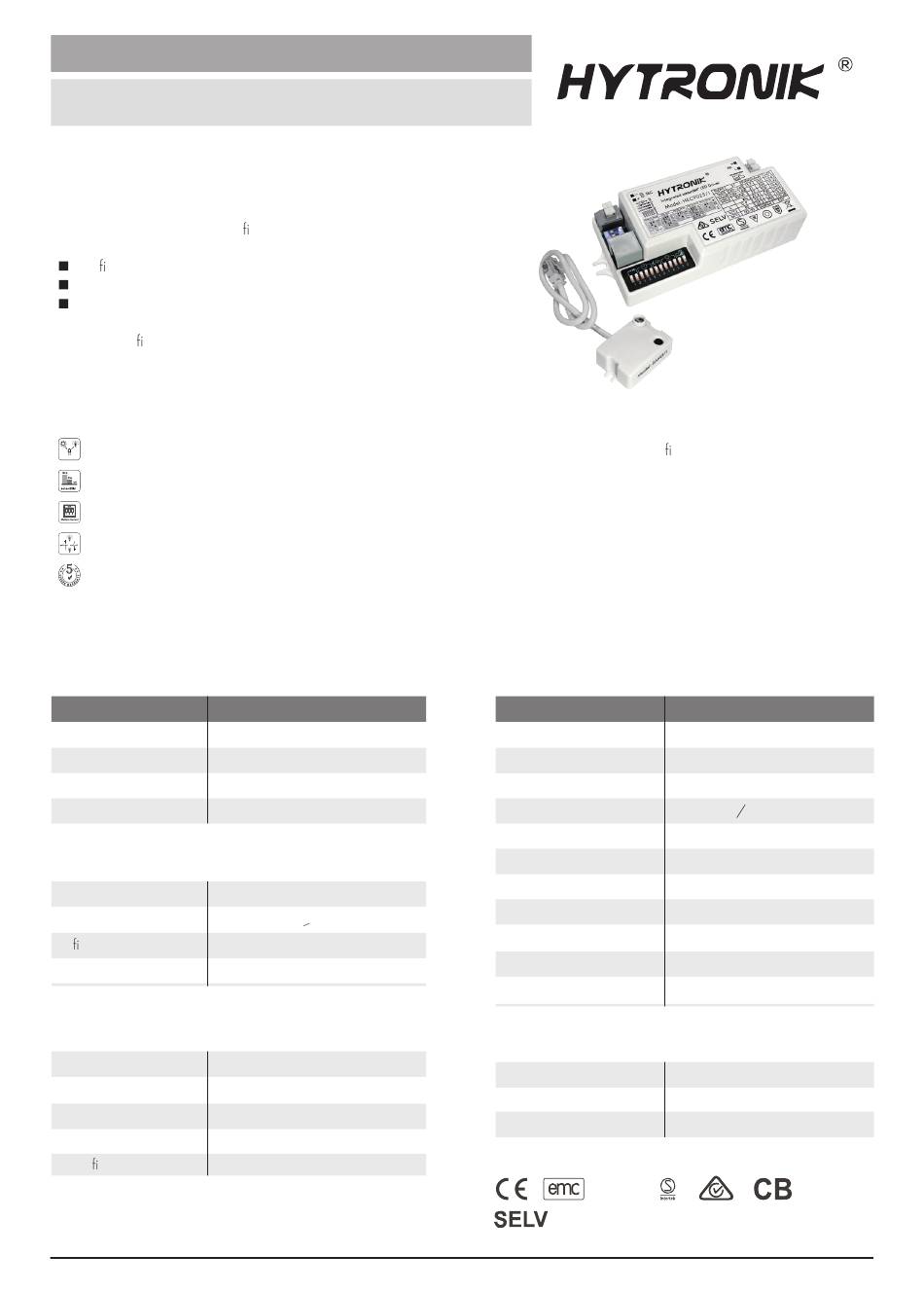

TM
SensorDIM
- Integrated HF Sensor and LED Driver
HEC9025 HEC9025/I
Detached Version with Tri-level Control / Photocell Advance
Applications
Occupancy sensor and constant current LED driver, 2-in-1.
Suitable for building into the xture for:
Of ce / Commercial Lighting
Classroom
Meeting Room
Use for retro t and new luminaire designs/installations
Features
Special photocell to measure and differentiate natural light from LED light from behind the xture cover (HEC9025/I)
Photocell Advance
Tri-level dimming control based upon occupancy (also known as corridor function)
TM
DIP switch offers multiple current selections for different luminaire requirements
Easy-on-the-eye operation which makes the light turning on/off less uncomfortable
5-Year Warranty
Technical Data
Input Characteristics
Model No.
Mains voltage
Input current
Input power
Warming-up
Driver Data
Off load voltage
Power factor
Ef ciency
Output current
350/500/550/700/750/900mA
Safety and EMC
EMC standard (EMC)
EN55015, EN61547, EN6100-2/3
Safety standard (LVD)
Dielectric strength
Input
Abnormal protection
Certi cation
Semko, CB, CE , EMC, RED, RCM
Subject to change without notice.
HEC9025 HEC9025/I
220~240VAC 50/60Hz
0.15
31W (Max.)
20s
55V
>0.9
85% (Max.)
EN61347-1, EN61347-2-13
output: 3750VAC / 5mA /1min
→
Output short-circuit protection
, SELV
TM
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Detection angle
Setting adjustments:
Sensitivity
Stand-by period
Environment
Operation temperature
Case temperature (Max.)
IP rating
Edition: 26 Feb. 2020
HEC9025 HEC9025/I
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
Max. ( O x H) 12m x 6m
30
O
~ 150
Sensor OFF / 50% / 75% / 100%
5s ~ 30min (selectable)
2 ~ 50 lux, disabled
0s ~ 1h, +∞ (selectable)
10% / 20% / 30% / 50%
Ta: -20
O
C ~ +50
O
Tc: +80
C
IP20
RED
Ver. A0
O
O
C
IP20
Page 1/7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hytronik SensorDIM HEC9025
Summary of Contents for Hytronik SensorDIM HEC9025
- Page 1 SensorDIM - Integrated HF Sensor and LED Driver HEC9025 HEC9025/I Detached Version with Tri-level Control / Photocell Advance Applications Occupancy sensor and constant current LED driver, 2-in-1. Suitable for building into the xture for: Of ce / Commercial Lighting Classroom Meeting Room Use for retro t and new luminaire designs/installations Features...
- Page 2 Number of Drivers Based upon 16A Circuit Breaker Loading and In-rush Current Model HEC9025 HEC9025/I HEC9025 HEC9025/I Cct Breaker Type Type B In-rush Current (Imax.) Pulse Time Conversion table for max. quantities of drivers on other types of Miniature Circuit Breaker MCB Type Rating Relative number of drivers...
- Page 3 Function (for HEC9025/I) It’s well known that LED lights have a totally different spectrum to natural light. Hytronik uses this principle and comes up with special photocell and sophisticated software algorithm to measure and differentiate natural light from LED light from behind the xture cover, so that this photocell can ignore internal LED light and only respond to the natural light outside.
- Page 4 Detection Pattern Ceiling mounted detection pattern (m) Wall mounted detection pattern (m) Settings (Remote Control HRC-11, for HEC9025/I) Permanent ON/OFF function Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”, “RESET” or “Ambient” to quit this mode. The mode will change to AUTO Mode after power failure.
- Page 5 Scene program - 1-key commissioning 1. Press button “Start” to program. 2. Select the buttons in “Detection range”, “Daylight threshold”, “Hold-time”, “Stand-by time”, “Stand-by dimming level” to set all parameters. 3. Press button “Memory” to save all the settings programmed in the remote control. 4.
- Page 6 I – 5s II – 30s Hold Time III – 1min 1min Select the DIP switch con guration for the light on-time after presence detection. IV – 5min 5min This function is disabled when natural light is suf cient. V – 10min 10min 20min VI –...
- Page 7 ->knowledge ->Introduction of Photocell Advance 2. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 3. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy Subject to change without notice.
