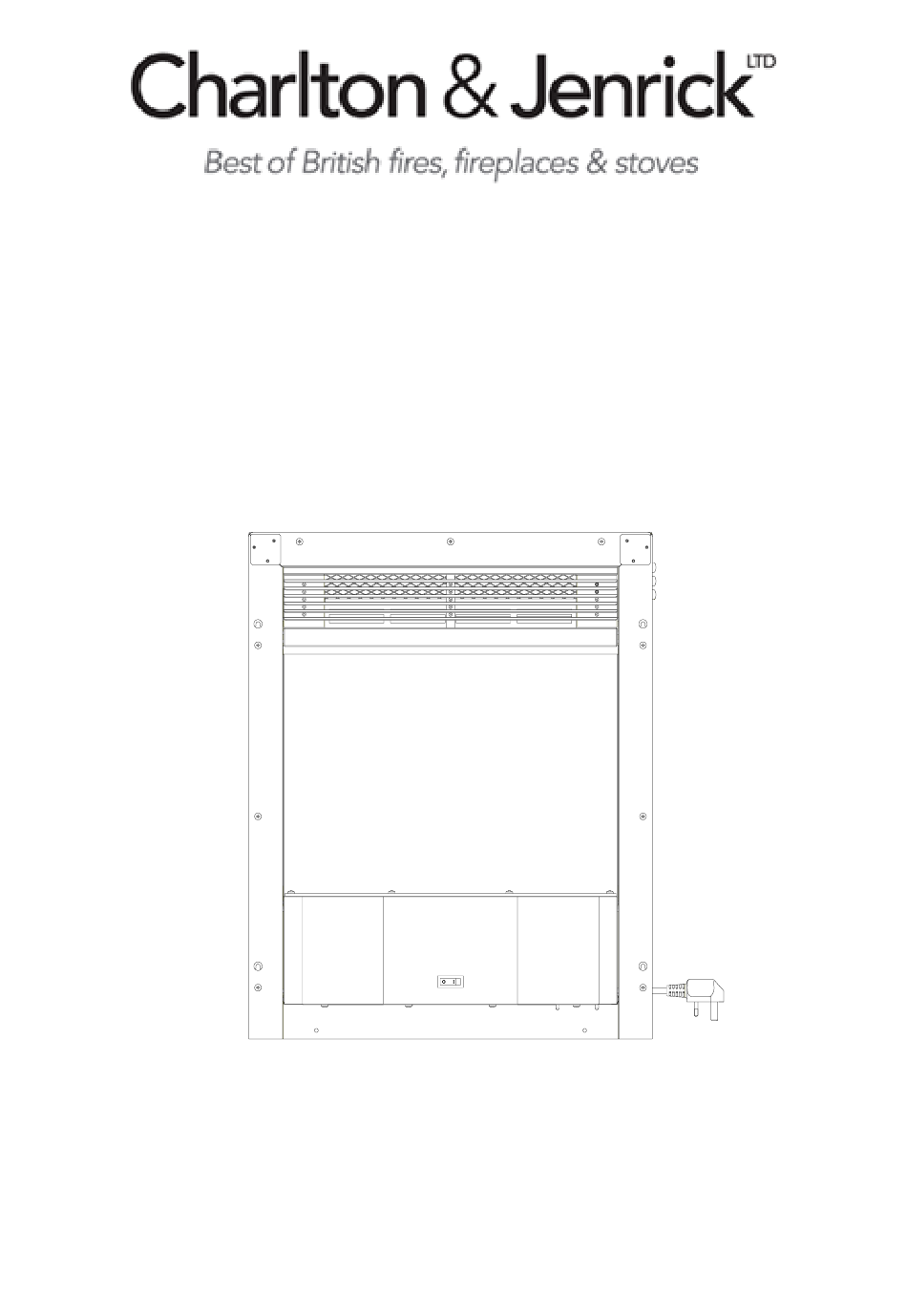

- Page 1 Inset LED Electric Fire Model No. EF16NC/2 INSTALLATION AND OPERATION INSTRUCTIONS Please read the instructions carefully before installation or use of this electric fire and retain for future reference.
-
Page 2: Table Of Contents
CONTENTS 1. Important Safety Information ………………….…………………………………………………………………. 1 2. Technical Specifications ……………...………………………………….……………………………………………. ………….………………………………………………………………………………………. 3. Parts and Hardware ……………...………………………………….……………………………………………. 4 4. Appliance Dimensions ……………...………………………………….…………………………………………. 4 5. Installation Instructions ……………...………………………………….…………………………………………. 6. Fuel Bed Arrangement ……………...………………………………….…………………………………………… 9 7. Operating Instructions ……………...………………………………….……………………………………… 8. Manual Control Panel ……………...………………………………….…………………………….………………. -
Page 3: Important Safety Information
1. IMPORTANT SAFETY INFORMATION 1.1 Read all of the instructions carefully before using the appliance. 1.2 For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. 1.3 Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. -
Page 4: Technical Specifications
2. TECHNICAL SPECIFICATIONS Model No.: EF16NC/2 Supply Voltage: AC 220-240V 50Hz Maximum power consumption: 1500W Power for flame effect: 9.5W (LED 5.5W + Motor for flame 4W) Power for mood light effect: 5.5W (Maximum length: 2 Meters) Heat Output: Nominal heat output (Pnom): 1.5KW Minimum heat output(indicative) (Pmin): 0.75KW... -
Page 5: Parts And Hardware
3. PARTS AND HARDWARE 3.1 Unpack the fire carefully, make sure that the appliance is intact with no signs of damage caused by transport and no part has been exposed to water. If in doubt, do not use the appliance and contact an authorised service centre. 3.2 Keep plastic wrapping away from children. -
Page 6: Appliance Dimensions
4. APPLIANCE DIMENSIONS Unit: mm NOTE: A spacer frames for flat wall fixing can be purchased from your supplier. 5. INSTALLATION INSTRUCTIONS Tools Required A screw driver, power drill, suitable drill bits, safety gloves and goggles Locating the Appliance Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. - Page 7 Installation Installation into a fireplace opening Unit: mm Opening Size For Insert Positions for Fixing Screw ≥80 Installation of appliance: Keyhole Keyhole slots slots Step1: Carefully mark out the 4 fixing screw positions as Step3: Fit 4 screws ST5×25 leaving approximately 2mm above (positions for fixing screw: to dimensions Wo, Ho, projection between the panel and the underside of the and Lo).
- Page 8 Magnets Magnets 12.5 Step 5: Tighten the 4 screws to lock the appliance into Step 6: Put 4pcs magnets (with the size of 18×18×12.5) position. onto the frame. For the Trim TR1622-11C & fret: Step 7.1: Put the trim and fret onto front of the appliance. Then arrange the fuel bed to your own choice using the fuel bed items provided on the plastic shelf.
-
Page 9: Fuel Bed Arrangement
6. FUEL BED ARRANGMENT For an attractive fuel bed arrangement its recommended that you put a layer of the small clear Faux Crystals on the fuel bed before laying the outer items of choice Typical Fuel Bed :- Coal and Small clear Faux crystals Typical Fuel Bed :- Logs and Small clear Faux crystals Typical Fuel Bed :- Large clear Faux and Small clear Faux crystals Typical Fuel Bed :- Medium clear Faux crystals and Small clear Faux crystals... - Page 10 Mood Light Strip Connection (Note; Mood lights are an optional extra) Remove the two ST4×10 screws and the metal plate on Pull out the cable inside and thread it through the hole of the right lower side. the metal plate. Fix the metal plate with two ST4×10 screws.
-
Page 11: Operating Instructions
7. OPERATING INSTRUCTIONS WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse. -
Page 12: Remote Controls
6a.3 Press “MOOD LIGHT” button to cycle through the 13 colours of fuel bed or a colour-cycle mode and Off setting. 6a.4 Press “LIGHTS ON/OFF” to turn on or turn off the flame, fuel bed and mood light. Note: The controls on appliance will lose the memory for all function settings when the switch is set to the Off Position. When the remote runs out of power or when you change the batteries, only the flame function will lose memory and will not affect the timer settings, however, the clock may need adjusting. - Page 13 Fuel Bed Colour 6b.7 Press to enter the fuel bed light adjustment screen. 6b.8 Press the ‘←’ and ‘→’ button to cycle through the 13 colours of fuel bed or a colour-cycle mode. 6b.9 Press the ‘+’ and ‘-’ button to to select the 5 brightness of fuel bed and OFF settings. Mood light 6b.10 Press to enter the mood light adjustment screen.
- Page 14 Daily Timer Heating 6b.20 It has following preset heating periods, which can be altered if desired 06:00 until 8:30 17:00 until 22:00 6b.21 Press until shows at the upper right corner of the screen, then enter the daily timer heating mode. 6b.
-
Page 15: Maintenance
Advance Mode 6b.30 Under the daily and week timer mode, Press 6b.31 To turn the heater off when the heater is on during a preset heating period. 6b.32 To turn the heater on when the heater is off in between preset heating periods. Adaptive Start Control 6b.33 According to room temperature and set temperature, the heater will automatically come on in time to heat the room to the set temperature at the set time. -
Page 16: Servicing
7.2 When the batteries are half full, the battery symbol will show 7.3 When the batteries are out of power and need replacing immediately, the battery symbol will show 7.4 Battery replacement is recommended after 1 year. The batteries are 1.5V alkaline AAA, batteries. 7.5 Dispose of old batteries at an appropriate recycling facility.
