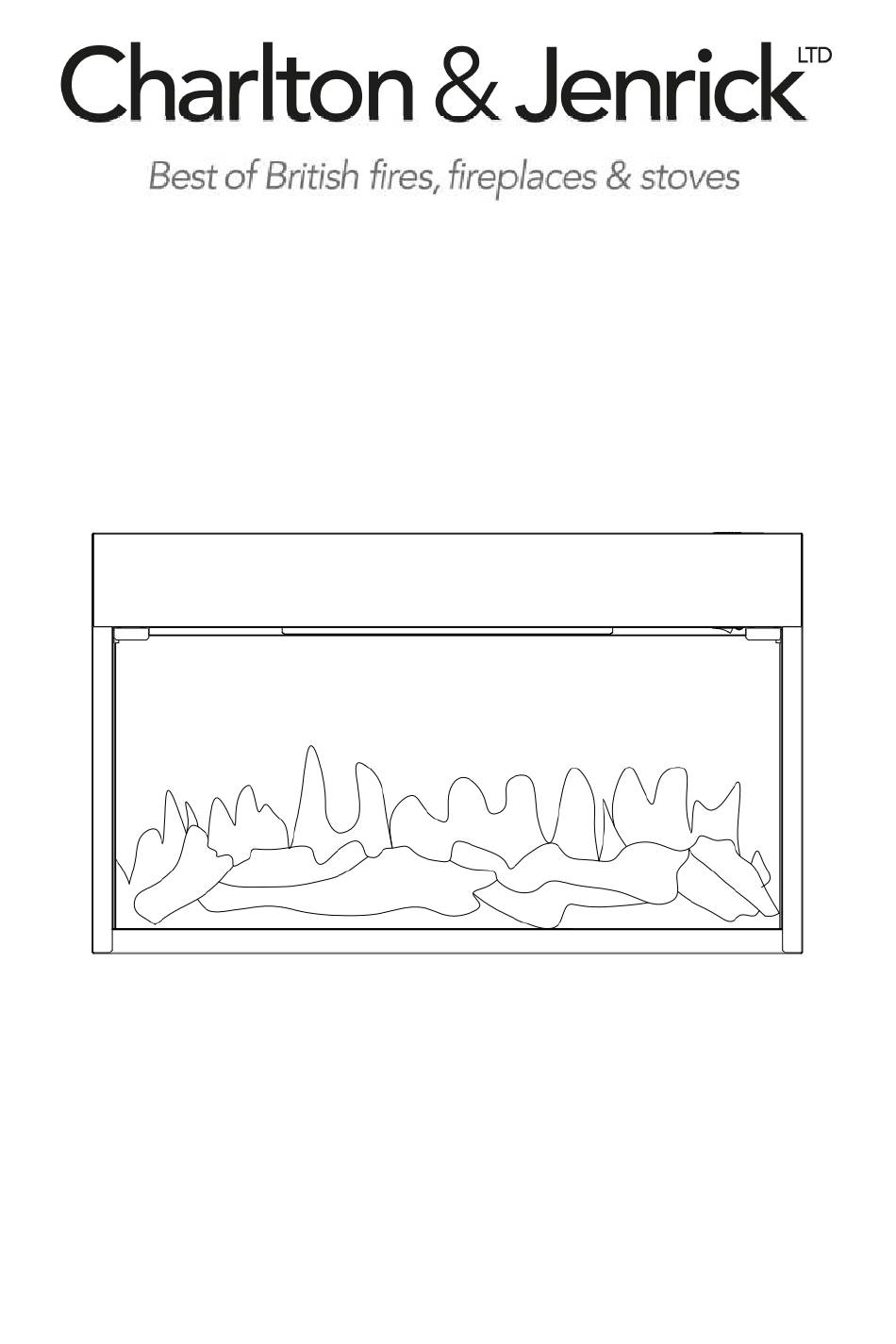

- Page 1 LED Electric Fire Model: EE860 INSTALLATION AND OPERATION INSTRUCTIONS Please read the instructions carefully before installation or use and keep for future reference...
-
Page 2: Table Of Contents
CONTENTS 1. Important Safety Information ·········································································1 2. Technical Specifications ··················································································3 3. Parts and Hardware ························································································4 4. Appliance Dimensions ·····················································································5 5. Installation Instructions ··················································································6 6. Operating Instructions ····················································································8 6a. Manual Control Panel ···············································································9 6b. Remote Controls ···················································································· 11 7. Maintenance ································································································ 16 8. -
Page 3: Important Safety Information
1. IMPORTANT SAFETY INFORMATION 1.1 Read all of the instructions carefully before using the appliance. 1.2 For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. 1.3 Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. - Page 4 1.11 To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter from the air outlet. 1.12 Keep the power cord away from hot surfaces and hot conditions. Do not route the power lead in front of the appliance.
-
Page 5: Technical Specifications
13A fuse or plug being 13A BS1363A approved. 2. TECHNICAL SPECIFICATIONS Model No.: EE860 Supply Voltage: AC 230-240V 50Hz Maximum power consumption: 2KW Power for flame effect: 6.88W (LED 2.88W + Motor for flame 4W) Power for mood light : DC12V, Max 8W, 0.67A... -
Page 6: Parts And Hardware
Type of heat output / room temperature control Single stage heat output and no room temperature control Two or more manual stages, no room temperature control With mechanic thermostat room temperature control With electronic room temperature control Electronic room temperature control plus day timer Electronic room temperature control plus week timer Other Control Options Room temperature control, with presence detection... -
Page 7: Appliance Dimensions
Fixing brackets ST 4*10 Screws M5*10 Screws (4 pcs) (8 pcs) (4 pcs) (D-G) Not applicable to already fitted purchases Washer Simplified Instruction (4 pcs) (1 pc) 4. APPLIANCE DIMENSIONS Unit: mm... -
Page 8: Installation Instructions
5. INSTALLATION INSTRUCTIONS Tools Required A screw driver will be needed. Locating the Appliance Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensures that the general instructions are followed. 5.1 For best results, install out of direct sunlight. 5.2 The appliance should be connected to an earthed electrical outlet and it must be easily accessible to allow disconnection. - Page 9 5.4b Connect the mood light. Note: Compatible mood lights are available from Charlton & Jenrick Ltd., and other makes may not be suitable and will void warranty.
-
Page 10: Operating Instructions
6. OPERATING INSTRUCTIONS WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse. -
Page 11: 6A. Manual Control Panel
6a. MANUAL CONTROL PANEL NOTE: The manual button controls basic functions, not a full range of controls. Use the remote hand set to carry out all functions. 6a.1 The manual buttons are located at the upper right of the appliance. 6a.2 Press “LIGHTS ON/OFF”... -
Page 12: 6B. Remote Controls
6b. REMOTE CONTROLS NOTE: This is a thermostatic remote control. The remote should be in the same room as the fireplace and placed on a flat surface. It must be placed away from the fire so the hot air will not blow on it and affect the thermostatic reading. The communication frequency between the fire and remote has already been set up. - Page 13 Flame Effect 6b.3 Press to enter the flame effect adjustment screen. 6b.4 Press the ‘←’ and ‘→’ button to select the 3 Kinds of flame effect. 6b.5 Press the ‘+’ and ‘-’ button to select the 5 brightness of flame effect and OFF settings. Mood Light 6b.6 Press to enter the mood light adjustment...
- Page 14 Count Down Timer NOTE: This setting is for normal mode only. It allows the appliance to go into standby after a set period of time. 6b.12 Press to cycle through the settings from Off and 0.5 hours to 9 hours. The timer logo and time will show on the screen.
- Page 15 3 timed Heating periods for a day. Press ‘←’ or ‘→’ to choose hour or minute,press ‘+’ or ‘-’ to set the number. Minute will increase/decrease by 15 minutes per press. Hold for 3 seconds or wait for 10 seconds to save and exit the heating time period setting.
- Page 16 week timer setting. Press ‘←’ or ‘→’ to move the cursor (a flashing underline), press the button in the corresponding week position to select (the character is highlighted) or cancel (the character is displayed normally) the current setting. Several days can be selected together. ...
- Page 17 your timer is set to start at 18:00 and temperature is set to 23°C, the fire will come on at 17:30 to ensure the room is 23°C at 18:00. Window Open Detection 6b.31 When the remote control detects a rapid drop in room temperature, it will be identified as a window open, the warning icon will be displayed and the heating will be...
-
Page 18: Maintenance
overheats, e.g. when covered. If the heater stops operating while the flame effect continues working normally, this indicates that the E.S. Control is in operation. The E.S. Control can only be re-set after the appliance has cooled down, and the appliance has been reset. Re-setting of the E.S. -
Page 19: Others
8. Others Environment Meaning of crossed –out wheeled dustbin: Electrical appliances should not be disposed as unsorted municipal waste. Separate collection facilities should be used in the disposal of electrical appliances. To have this appliance processed at the end of its useful life please contact WEEECare Plc on 0844 8002004. - Page 20 Charlton & Jenrick Ltd Unit D, Stafford Park 2, Telford, Shropshire, TF3 3AR Tel: (0845) 5195 991 Fax: (0845) 5195 992 www.charltonandjenrick.co.uk...
