Lithium-Ion Phosphate Battery
Force-L2 Product Manual
Information Version: 2.2
Pylon Technologies Co., Ltd.
No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park
Pudong, Shanghai 201203, China Zip Code: 201203
Tel: 021-51317699
Fax: 021-51317698
Email:
service@pylontech.com.cn
Website:
http://www.pylontech.com.cn
19PIFP0301
Advertisement
Table of Contents
Related Manuals for Pylontech Force-L2
Summary of Contents for Pylontech Force-L2
- Page 1 Lithium-Ion Phosphate Battery Force-L2 Product Manual Information Version: 2.2 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China Zip Code: 201203 Tel: 021-51317699 Fax: 021-51317698 Email: service@pylontech.com.cn Website: http://www.pylontech.com.cn 19PIFP0301...
-
Page 2: Table Of Contents
This manual introduces Force-L2 from Pylontech. Force-L2 is a 48Vdc Lithium-Ion Phosphate Battery storage system. Please read this manual before you install the battery and follow the instruction carefully during the installation process. Any confusion, please contact Pylontech immediately for advice and clarification. -
Page 3: Safety Precautions
1. Safety Precautions Reminding 1) It is very important and necessary to read the user manual carefully (in the accessories) before installing or using battery. Failure to do so or to follow any of the instructions or warnings in this document can result in electrical shock, serious injury, or death, or can damage battery, potentially rendering it inoperable. -
Page 4: In Using
5) In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are prohibited; Please do not open, repair or disassemble the battery except staffs from Pylontech or authorized by Pylontech. We do not undertake any consequences or related responsibility which because of violation of safety operation or violating of design, production and equipment safety standards. -
Page 5: Introduction

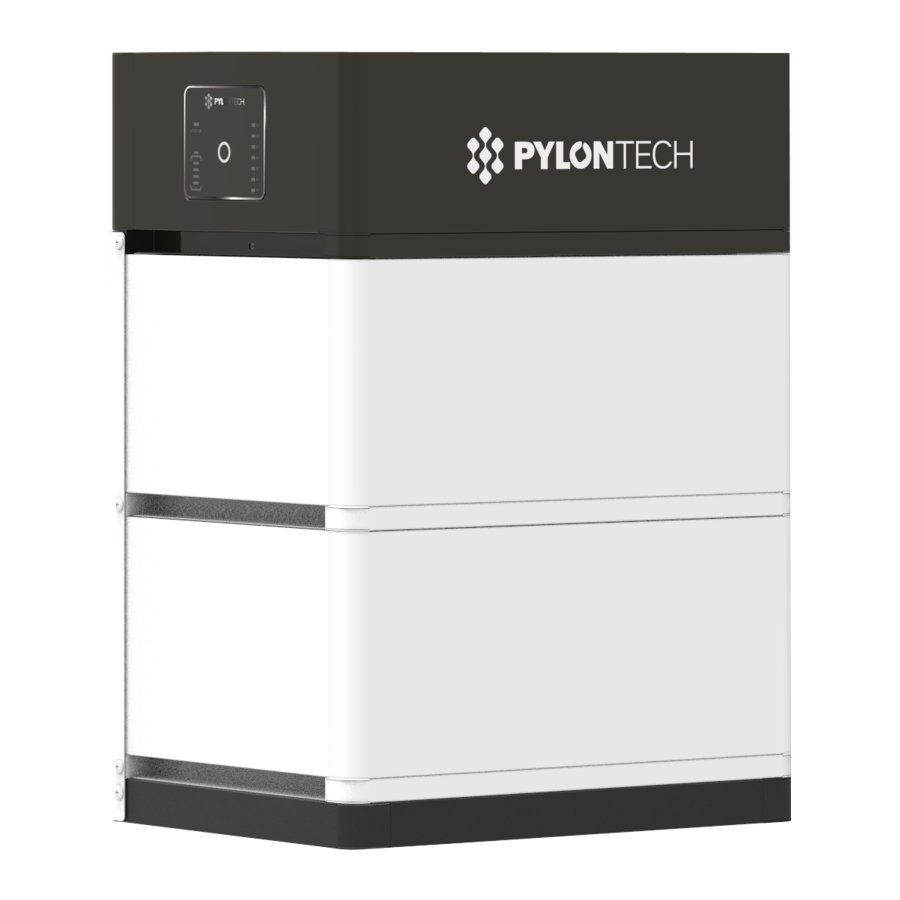

Force-L2 lithium iron phosphate battery is one of new energy storage products developed and produced by Pylontech, it can be used to support reliable power for various types of equipment and systems. Force-L2 is especially suitable for application scene of high power, limited installation space, restricted load-bearing and long cycle life. -
Page 6: Specifications
2.2 Specifications 2.2.1 The parameter of system 4 / 13 19PIFP0301... - Page 7 FORCE-L2 FORCE-L2 FORCE-L2 Product Type (48V148AH) (48V222AH) (48V296AH) Cell Technology Li-ion (LFP) Battery System Capacity(kWh) 7.10 10.65 14.20 Battery System Voltage (Vdc) Battery System Capacity (Ah) Battery Controller Name FC0048M-100 Battery Module Name FL4874M Battery Module Quantity(pcs) Battery Module Capacity(kWh) 3.552...
-
Page 8: Battery Module (Fl4874M)
2.2.2 Battery Module (FL4874M) Product Type FL4874M Cell Technology Li-ion (LFP) Battery Module Capacity (kWh) 3.552 Battery Module Voltage (Vdc) Battery Module Capacity (Ah) Battery Module Serial Cell Quantity (pcs) Battery Cell Voltage (Vdc) Battery Cell Capacity (AH) Dimension (W*D*H, mm) 450*296*296 Weight (kg) Operation Life... -
Page 9: Control Module Fc0048M-100 (Internal Power Supply)
2.2.3 Control Module FC0048M-100 (internal power supply) Control Module (FC0048M-100) Display Panel LED Button Short Press Display the LED panel for 20sec. Long Press When all LED flash blue ●, loss the button, then it is chosen (more than 115200 baud rate of RS485. 5sec) When all LED flash orange ●, loss the button, then it is chosen 9600 baud rate of RS485. - Page 10 Status System Status: blue means working normally; Orange means protection or failure. Blue, slow flashing. Power Relay CLOSE. Alarm exist but can work continue. Blue, lighting. Power Relay CLOSE. Normal. Power Relay OPEN. Normal protection, can recover on Orange, slow flashing. its own (Over Voltage, Under Voltage, etc.).
- Page 11 Control Module (FC0048M-100) Cable Panel Power Switch Switch A (1P). ON: the battery system’s controller able to turn on. OFF: whole system turns OFF. Switch B (2P). Main breaker. Caution: When the breaker is tripped off because of over current or short circuit, must wait more than 30min then can turn on it again, otherwise may cause the breaker damage.
- Page 12 Connect power cables of battery system with Inverter. Communication Terminal (RS485 / CAN / RS232 / Link Port 0 / Link Port 1) RS485 Communication Terminal: (RJ45 port) follow RS485 protocol, for communication between battery system and inverter. CAN Communication Terminal: (RJ45 port) follow CAN protocol, for communication between battery system and inverter.
-
Page 13: Definition Of Rj45 Port Pin
RS232 Communication Terminal: (RJ45 port) follow RS232 protocol, for manufacturer or professional engineer to debug or service. Definition of RJ45 Port Pin RS485 RS232 CANH CANL RS485A RS485B Note: Other Pin must be NULL, if not may influence the communication of system. 11 / 13 19PIFP0301... -
Page 14: Emergency Situations
Damaged batteries are dangerous and must be handled with the utmost care. They are not fit for use and may pose a danger to people or property. If the battery pack seems to be damaged, pack it in its original container, and then return it to Pylontech or an authorized dealer. - Page 15 Pylon Technologies Co., Ltd. No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park Pudong, Shanghai 201203, China +86-21-51317699 | +86-21-51317698 service@pylontech.com.cn www.pylontech.com.cn 13 / 13 19PIFP0301...
