RT12100B-G31
Rechargeable Lithium-ion Battery
Rated Voltage:
Rated Capacity:
Rated Energy:
Recommended Charging Voltage:
Recommended Charging / Discharging Current:
Maximum Charge Current:
Maximum Discharge Current:
Operating Ambient Temperature:
Short-circuit Current / Duration Time:
FCC ID：2AYEF-RT12100B
Smart Lithium Iron Battery
RT12100B-G31
User Manual
12.8Vdc
100Ah
1280Wh
14V~14.4V
50A/50A
100A
100A
-40°C~60°C
<1KA/100μs
214-
230162
Information Version: 1.0
Advertisement
Table of Contents
Related Manuals for Pylontech RT12100B-G31
Summary of Contents for Pylontech RT12100B-G31
- Page 1 RT12100B-G31 Rechargeable Lithium-ion Battery 12.8Vdc Rated Voltage: 100Ah Rated Capacity: 1280Wh Rated Energy: 14V~14.4V Recommended Charging Voltage: 50A/50A Recommended Charging / Discharging Current: 100A Maximum Charge Current: 100A Maximum Discharge Current: Operating Ambient Temperature: -40°C~60°C Short-circuit Current / Duration Time: <1KA/100μs...
-
Page 3: Legal Information
Pylontech shall not be liable for any damages resulting from the use of this product not in accordance with this manual. In the event of any conflicts between... -
Page 4: Safety Instructions
General • For safety purposes, please use only the accessory (cable, charger, and etc) supplied or recommended by Pylontech. Pylontech shall not be liable for damage caused by third-party devices. • Before first use, please check if the device is in good condition. If the device is deformed or has an odor, do not use the device and return it to the distributor. - Page 5 • If the device does not work properly, please contact your distributor or the nearest service center within 24 hours. DO NOT disassemble the battery for repair or mainte- nance by yourself. Pylontech shall not assume any responsibility for problems caused by unauthorized repair or maintenance.
-
Page 6: Electrical Specification
Specifications Electrical Specification Nominal Voltage 12.8 VDC Nominal Capacity 100 Ah ＜10 mΩ Resistance ≤3% per month Self Discharge Maximum Modules in Parallel or Series 4S4P ＞4500 (80% DOD, 0.5 C, 25 °C) Cycle Life (25°C) Design Life ≥ 10 years Short Circuit Current Duration <1 kA/100 us Discharge Specification... - Page 7 Communication Max. Altitude 4000 m Support *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors. Dimension RT12100B-G31 Rechargeable Lithium-ion Battery 12.8Vdc Rated Voltage: 100Ah Rated Capacity: 1280Wh Rated Energy: 14V~14.4V...

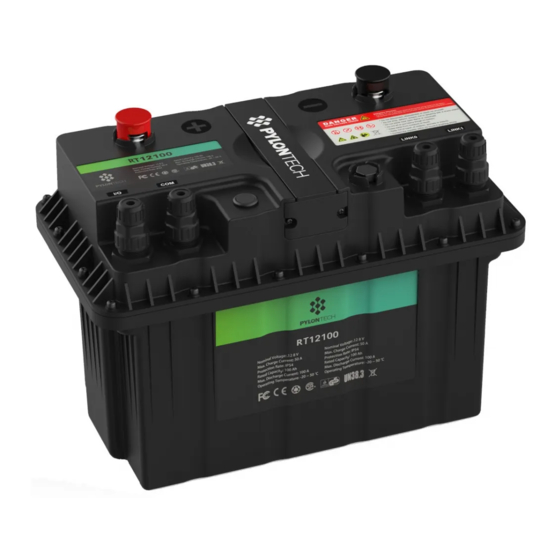

- Page 8 Introduction RT12100B-G31 is a lithium iron phosphate battery module. With a standard BCI group size, it is designed to replace deep-cycle lead-acid batteries. The battery is perfect for recreational vehicles (RV), marine (boats), trucks, cabins, and other off-grid deep- cycle applications.
-
Page 9: Packing List
Pylontech Auto APP PylontechAuto App APP Quick Guide Packing List RT12100B-G31 Rechargeable Lithium-ion Battery Rated Voltage: 12.8Vdc Rated Capacity: 100Ah 1280Wh Rated Energy: 14V~14.4V Recommended Charging Voltage: Recommended Charging / Discharging Current: 50A/50A Maximum Charge Current: 100A 100A Maximum Discharge Current: -40°C~60°C... - Page 10 Tools Screwdriver Voltmeter Wire Cutter Safety Goggles Insulating Gloves Indicator Meaning Status Light up for 0.5 s every other 1.5 s Working Mode Light up for 1 s every other 1 s Networking Mode Sleep/Power Off/System Error Light Off Activation Before first use, press the on/off button to activate the device.
-
Page 11: Installation
Installation Pre-installation check. • Cut off the power before wiring, installing or removing the battery. • To prevent electric shock, please remove watches, bracelets, rings and other conductive items (if any) and wear insulated gloves and protective goggles before installation. Place the battery in the designated area. -
Page 12: Multiple Batteries
Installation Multiple Batteries Note • Before use, check if the voltage difference between the batteries is less than 0.1 VDC before using them in series connection, or 0.5 VDC in parallel connection. If not, connect the batteries in parallel, and float charge them for 24 hours after a full charge. Otherwise, over-current protection may be triggered due to the large voltage difference.
