Wiring The Drive - Danfoss VLT 5000 Series Installation Startup Check List

This next section covers the wiring of the drive. The first area to be covered is general
wiring practices. The other sections cover power or line wiring from the drive to incoming
power, brake wiring. The motor wiring covers the connections between the drive and the
motor. Control wiring for Digital Inputs/Outputs and Analog Input/Outputs are also covered.
The last section covers the wiring for serial communications.

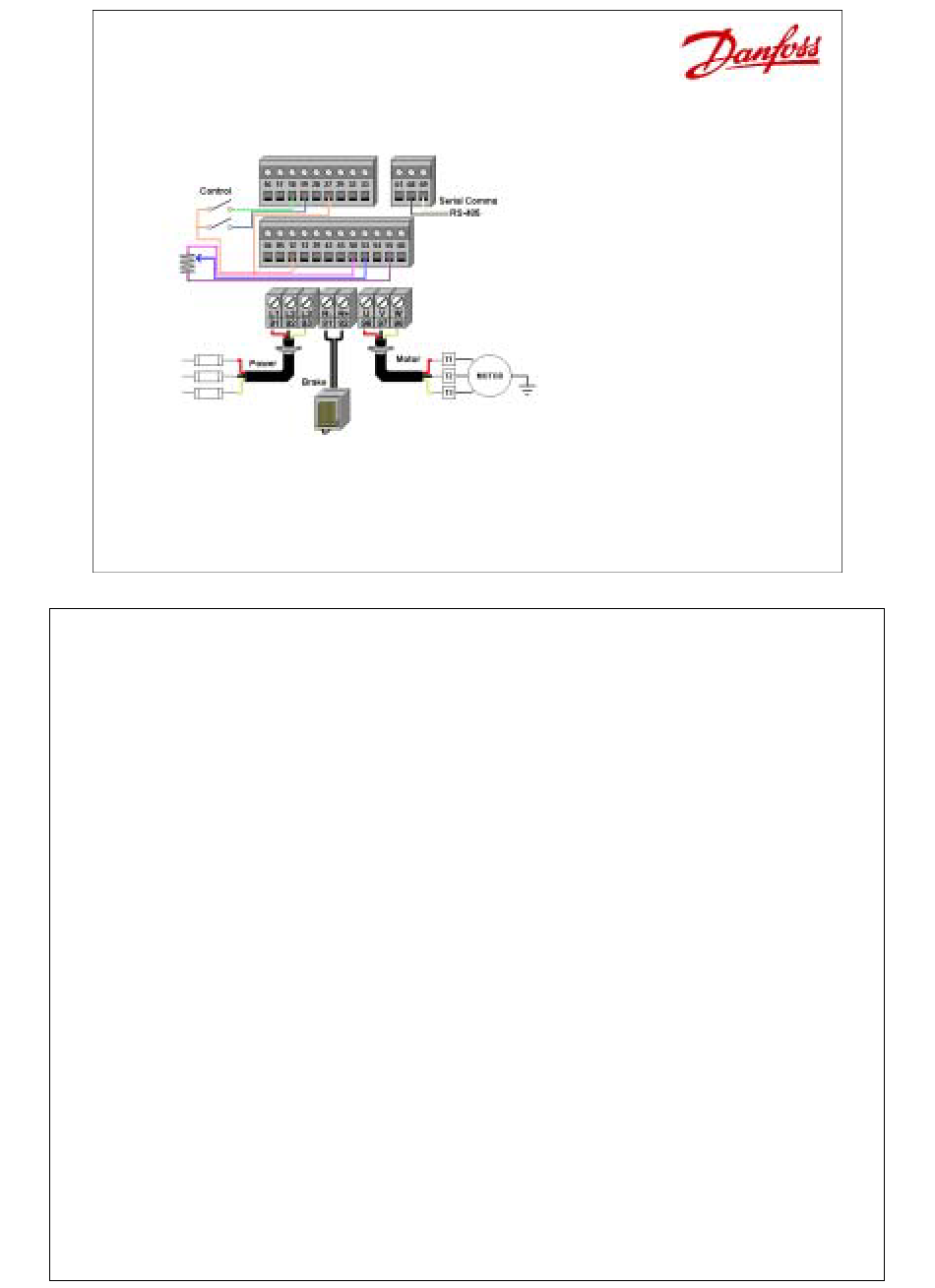

Wiring the Drive

• General Wiring
• Power Input
• Brake
• Motor Output
• Control
• Serial Comms
