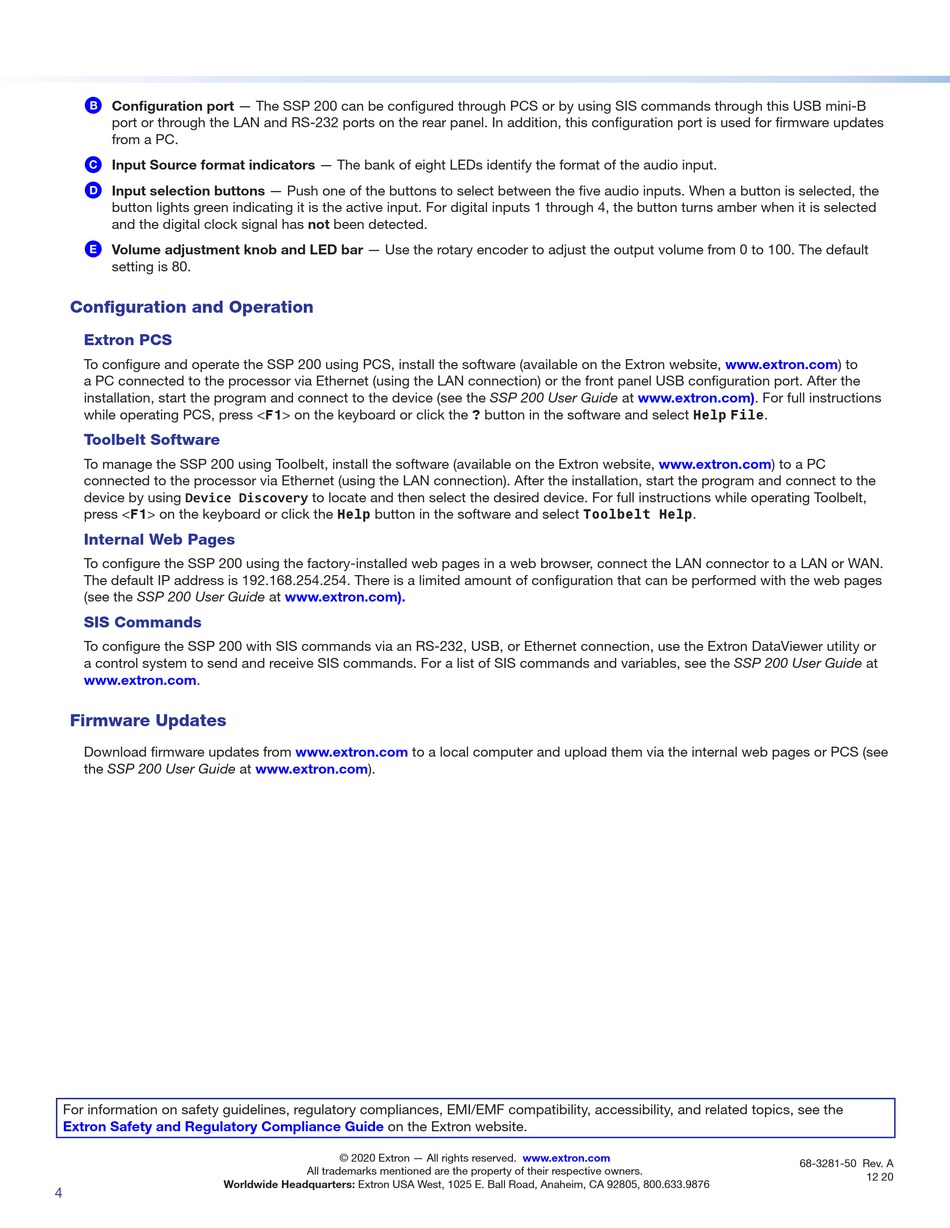

Extron electronics SSP 200 Setup Manual page 4

B Configuration port — The SSP 200 can be configured through PCS or by using SIS commands through this USB mini-B
port or through the LAN and RS-232 ports on the rear panel. In addition, this configuration port is used for firmware updates
from a PC.
C Input Source format indicators — The bank of eight LEDs identify the format of the audio input.
D
Input selection buttons — Push one of the buttons to select between the five audio inputs. When a button is selected, the
button lights green indicating it is the active input. For digital inputs 1 through 4, the button turns amber when it is selected
and the digital clock signal has not been detected.
E Volume adjustment knob and LED bar — Use the rotary encoder to adjust the output volume from 0 to 100. The default
setting is 80.
Configuration and Operation
Extron PCS
To configure and operate the SSP 200 using PCS, install the software (available on the Extron website, www.extron.com) to
a PC connected to the processor via Ethernet (using the LAN connection) or the front panel USB configuration port. After the
installation, start the program and connect to the device (see the SSP 200 User Guide at www.extron.com). For full instructions
while operating PCS, press <F1> on the keyboard or click the ? button in the software and select Help File.
Toolbelt Software
To manage the SSP 200 using Toolbelt, install the software (available on the Extron website, www.extron.com) to a PC
connected to the processor via Ethernet (using the LAN connection). After the installation, start the program and connect to the
device by using Device Discovery to locate and then select the desired device. For full instructions while operating Toolbelt,
press <F1> on the keyboard or click the Help button in the software and select Toolbelt Help.
Internal Web Pages
To configure the SSP 200 using the factory-installed web pages in a web browser, connect the LAN connector to a LAN or WAN.
The default IP address is 192.168.254.254. There is a limited amount of configuration that can be performed with the web pages
(see the SSP 200 User Guide at
SIS Commands
To configure the SSP 200 with SIS commands via an RS-232, USB, or Ethernet connection, use the Extron DataViewer utility or
a control system to send and receive SIS commands. For a list of SIS commands and variables, see the SSP 200 User Guide at
www.extron.com.
Firmware Updates
Download firmware updates from
the SSP 200 User Guide at www.extron.com).
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
4
www.extron.com).
www.extron.com to a local computer and upload them via the internal web pages or PCS (see
on the Extron website.
