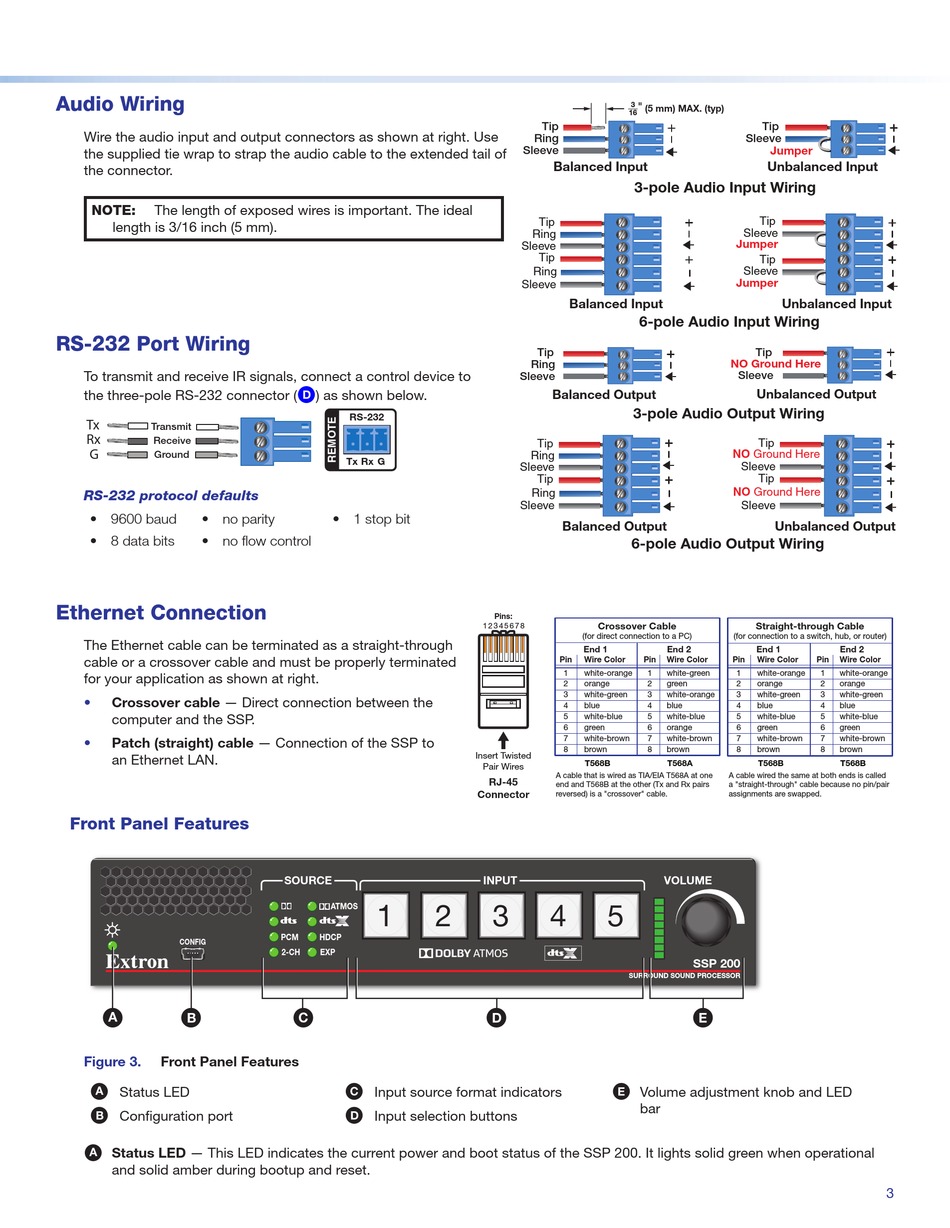

Extron electronics SSP 200 Setup Manual page 3

Audio Wiring
Wire the audio input and output connectors as shown at right. Use
the supplied tie wrap to strap the audio cable to the extended tail of
the connector.
NOTE: The length of exposed wires is important. The ideal
length is 3/16 inch (5 mm).
RS-232 Port Wiring
To transmit and receive IR signals, connect a control device to
the three-pole RS-232 connector (
Tx
Transmit
Rx
Receive
G
Ground
RS-232 protocol defaults
• 9600 baud • no parity
• 8 data bits • no flow control
Ethernet Connection
The Ethernet cable can be terminated as a straight-through
cable or a crossover cable and must be properly terminated
for your application as shown at right.
• Crossover cable — Direct connection between the
computer and the SSP.
• Patch (straight) cable — Connection of the SSP to
an Ethernet LAN.
Front Panel Features
CONFIG
e
A A A B B B
Figure 3. Front Panel Features
A Status LED
B
Configuration port
INPUTS
A Status LED — This LED indicates the current power and boot status of the SSP 200. It lights solid green when operational
and solid amber during bootup and reset.
1
D ) as shown below.
RS-232
Tx Rx G
• 1 stop bit
SOURCE
1 2
ATMOS
PCM HDCP
2-CH EXP
C C C
C Input source format indicators
D
Input selection buttons
L R 1(LF) 2(RF) 3(C)
5
THRU 2 3 4
3 " (5 mm) MAX. (typ)
16
Tip
Ring
Sleeve
Balanced Input
3-pole Audio Input Wiring
Tip
Ring
Sleeve
Tip
Ring
Sleeve
Balanced Input
6-pole Audio Input Wiring
Tip
Ring
Sleeve
Balanced Output
3-pole Audio Output Wiring
Tip
Ring
Sleeve
Tip
Ring
Sleeve
Balanced Output
6-pole Audio Output Wiring
Pins:
Crossover Cable
1 2 3 4 5 6 7 8
(for direct connection to a PC)
End 1
Pin Wire Color Pin
1 white-orange 1
2 orange 2
3 white-green 3
4 blue 4
5 white-blue 5
6 green 6
7 white-brown 7
8 brown 8
Insert Twisted
T568B
Pair Wires
A cable that is wired as TIA/EIA T568A at one
RJ-45
end and T568B at the other (Tx and Rx pairs
Connector
reversed) is a "crossover" cable.
INPUT
3 4 5
SURROUND SOUND PROCESSOR
D D D
H H H
E Volume adjustment knob and LED
bar
4(SUB) 5(LS) 6(RS) 7 8
RS-232
Tx Rx G
Tip
Sleeve
Jumper
Unbalanced Input
Tip
Sleeve
Jumper
Tip
Sleeve
Jumper
Unbalanced Input
Tip
NO Ground Here
Sleeve
Unbalanced Output
Tip
NO Ground Here
Sleeve
Tip
NO Ground Here
Sleeve
Unbalanced Output
Straight-through Cable
(for connection to a switch, hub, or router)
End 2 End 1 End 2
Wire Color Pin Wire Color Pin Wire Color
white-green 1 white-orange 1 white-orange
green 2 orange 2 orange
white-orange 3 white-green 3 white-green
blue 4 blue 4 blue
white-blue 5 white-blue 5 white-blue
orange 6 green 6 green
white-brown 7 white-brown 7 white-brown
brown 8 brown 8 brown
T568A T568B T568B
A cable wired the same at both ends is called
a "straight-through" cable because no pin/pair
assignments are swapped.
VOLUME
SSP 200
E E E
9 (MIX) 10
RESET
3
