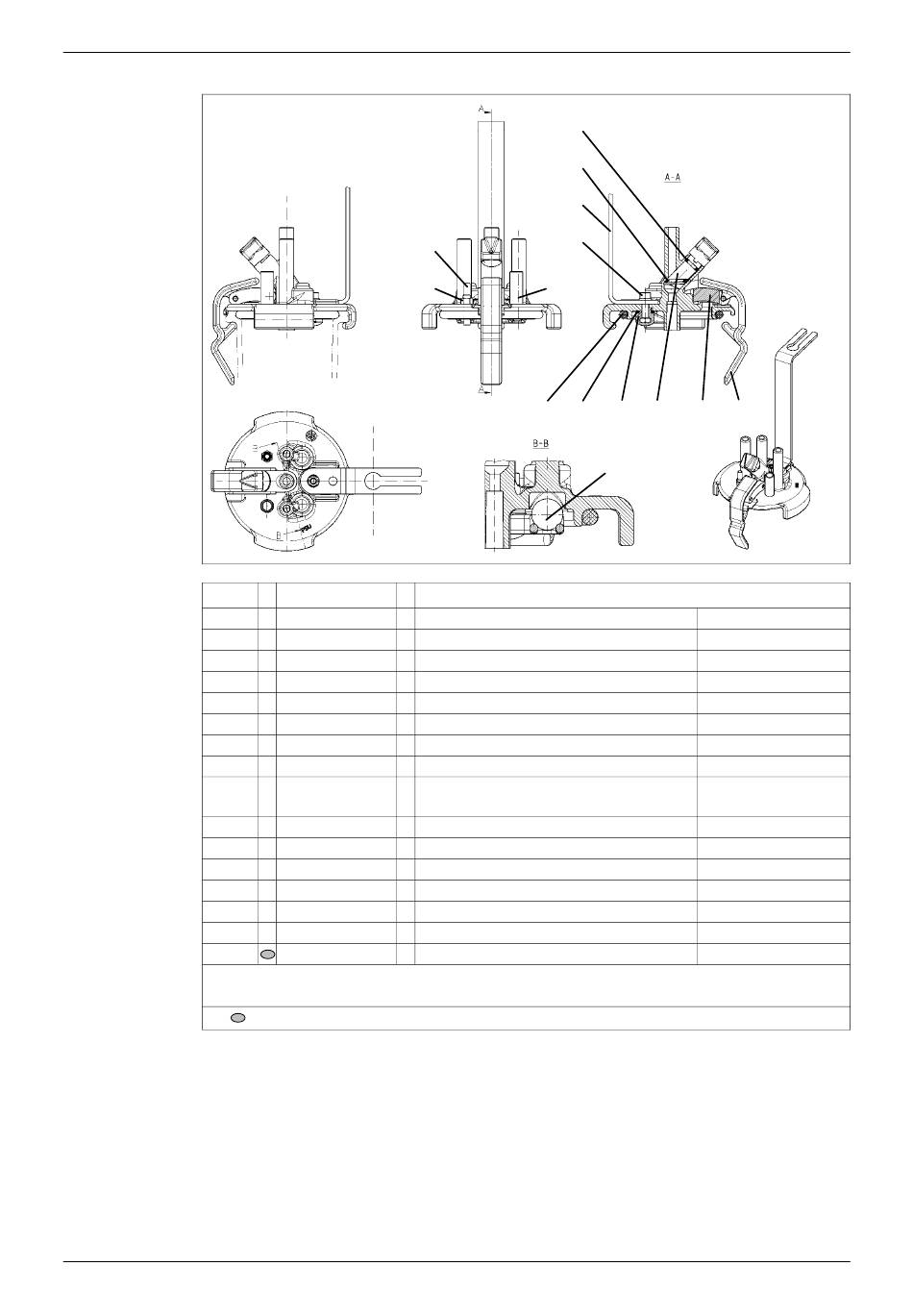

Cover for sampler complete
Item
0020
0030
0040
0050
0060
0070
0090
0100
0110
0120
0130
0150
0160
0170
-
x - Wear part, see section on "Maintenance" for maintenance interval
7821-9001-005
01. October 2019
160
150
Part no.
7821-2758-000
Cover for sampler complete
7161-2298-010
Guide piece
7161-5566-000
Lever
7161-1467-000
x Sealing panel
0007-2060-700
x Sealing ring
0007-1818-700
x Sealing ring
0013-0311-300
Hexagon Head Nut
7821-2084-230
Bracket
7161-6708-000
Plug complete
0007-2509-700
x Sealing ring
0026-1508-890
Ball
0007-1974-700
x Sealing ring
0013-0276-300
Hexagon Head Nut
7801-4807-000
connector
7051-2045-000
hose connector
7821-9905-030
Set of spare parts
Included in set of spare parts (7821-9905-030).
See corresponding parts list/drawing for further breakdown of components.
110
130
90
70
170
50 60 20 100
40 30
120
Description
36x20xø4
66x6
9x2
M5
93,1x114,3x20 T3
ø12 Metatron
(with 110, 130)
8x2
12mm
10x2
M6
RMS
Spare Parts
Milk sampling device
83 / 100
