Description
Design of the equipment
Chain link nozzle
The chain link nozzle closes the
chain and fills the sample bottles.
Chain motor
Brings the nozzle contained in
the chain to the correct
position.
Sampling device electronics
The whole sampling process is
controlled by its own CPU.
14 / 100

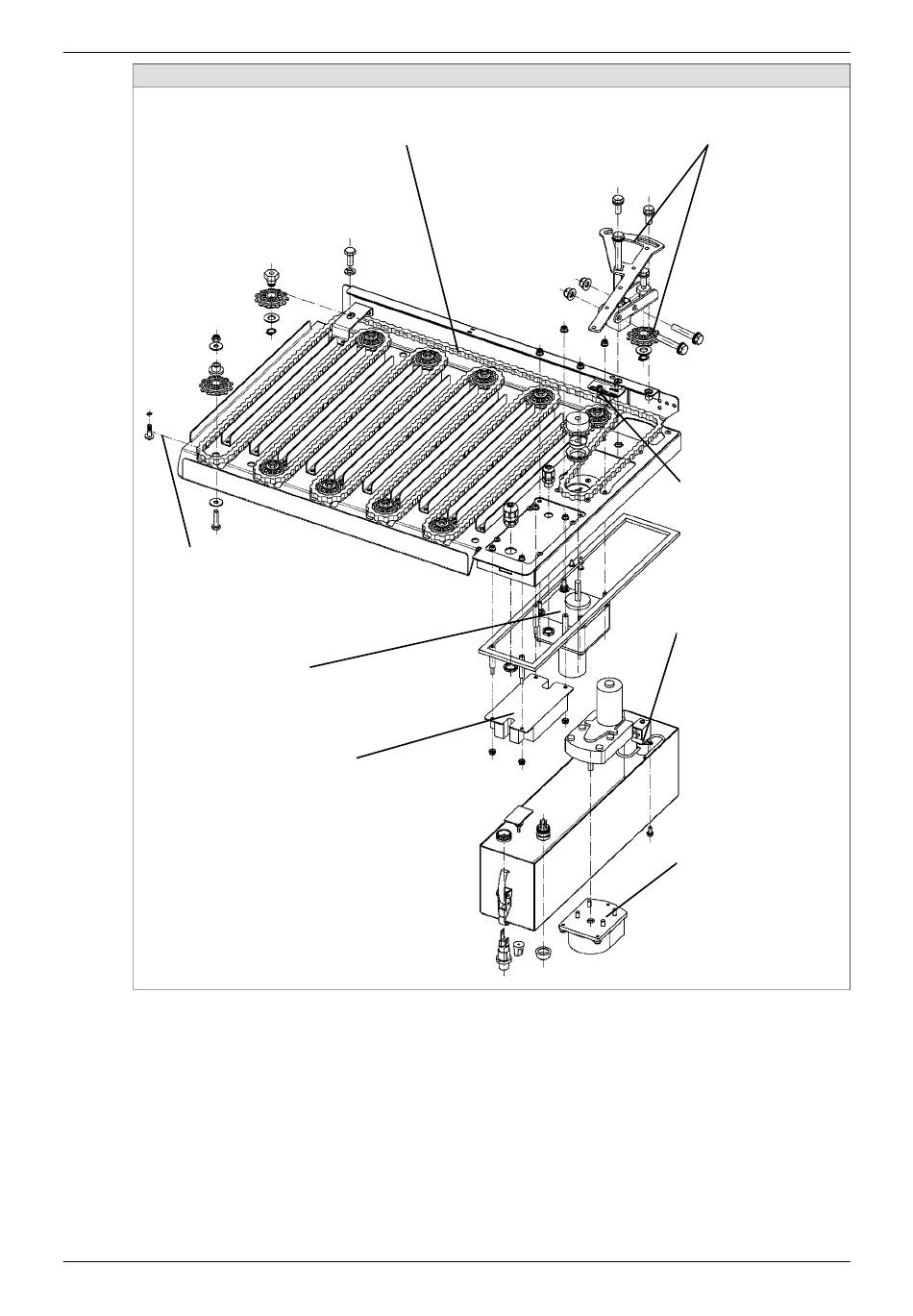

Sampling equipment in the lid
Chain with nozzle
The nozzle is positioned over the
sample bottle with the chain.
Chain tensioners
Used to maintain the correct chain
tension.
Limit switch
The limit switch stops the
chain motor when the filling
nozzle reaches the start
position.
Electromagnetic
crimp valve (mixing
valve)
When this valve is actuated,
the sample in the sample tank
is mixed by atmospheric air.
Hose pump
The pump pumps a small
amount of milk into the drain
channel to rinse the hose
before the sample is placed in
the sample bottle.
