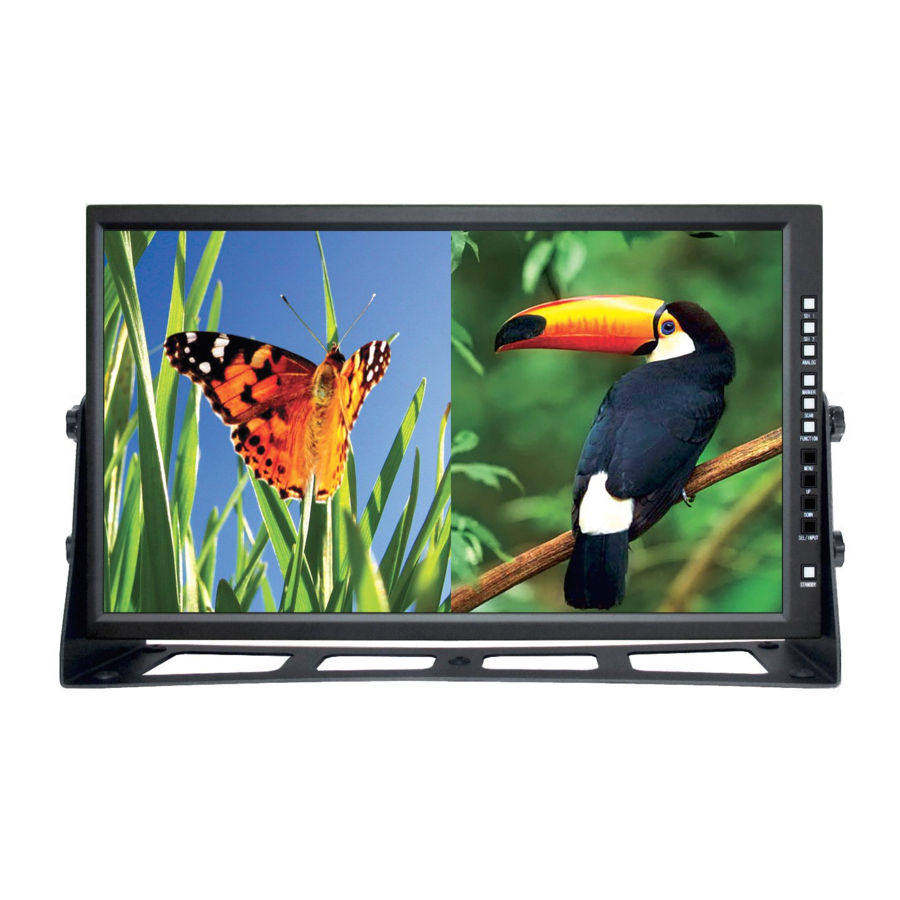

- Page 1 Operating Instructions LCM-223-3G LCM-223-3G LCM-3G "AFFORDABLE PREVIEW BROADCAST" 3G Series LCM-307-3G LCM-209-3G LCM-119-3G LCM-123-3G LCM-132-3G LCM-147-3G Re-imagine Beyond Technology sales@plurainc.com...
-
Page 2: Table Of Contents
Operating Instructions LCM-3G SERIES Table of Contents PRECAUTION ------------------------------------------------------------------------------------------------------------------------------------------------------ 4 OVERVIEW -------------------------------------------------------------------------------------------------------------------------------------------------- 7 GENERAL FEATURES -------------------------------------------------------------------------------------------------------------------------------------- 7 FUNCTIONAL EXPLANATION OF EACH PART ------------------------------------------------------------------------------------------------------- 8 --------------------------------------------------------------------------------------------------------------------------------------------- 8 RONT ANEL LCM-119-3G------------------------------------------------------------------------------------------------------------------------------------------------- 8 LCM-123-3G------------------------------------------------------------------------------------------------------------------------------------------------- 9 Front Keys Arrangements-------------------------------------------------------------------------------------------------------------------------------- 9 Front Keys Operations ------------------------------------------------------------------------------------------------------------------------------------ 9... - Page 3 Operating Instructions LCM-3G SERIES ----------------------------------------------------------------------------------------------------------------------------------------- 20 AFETY ARKER ------------------------------------------------------------------------------------------------------------------------------------------ 20 ENTER AKER ----------------------------------------------------------------------------------------------------------------------------------------- 21 ARKER IDTH ------------------------------------------------------------------------------------------------------------------------------------------ 21 ARKER OLOR --------------------------------------------------------------------------------------------------------------------------------- 21 AFETY ARKER OLOR SYSTEM MENU---------------------------------------------------------------------------------------------------------------------------------------- 22 & S ----------------------------------------------------------------------------------------------------------------------------- 22 ETUP ETUP ------------------------------------------------------------------------------------------------------------------------------------------- 22 UNCTION ------------------------------------------------------------------------------------------------------------------------------------- 23 CREEN...
-
Page 4: Precaution
Operating Instructions LCM-3G SERIES • PRECAUTION Before operating this unit, please read this manual carefully. WARNING: To reduce the risk of any electric shock, please do not remove the back cover. No user serviceable parts inside. Refer any service matters to qualified service personnel. - Page 5 This product should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product damages. Accessories Do not use accessories not recommended by PLURA Inc. as they may cause hazards. Ventilation Do not block any of the ventilation openings.
- Page 6 Operating Instructions LCM-3G SERIES If the product exhibits a distinct change in performance. 17. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition and the warranty seal is provided 18.
-
Page 7: Overview
Operating Instructions LCM-3G SERIES 1. OVERVIEW LCM Series consists of high quality HD LCD monitors, specifically designed for use in Broadcast environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards. It supports up to 3Gbps-1080-60P along with all other Digital & Analog inputs &... -
Page 8: Functional Explanation Of Each Part
Operating Instructions LCM-3G SERIES 3. Functional explanation of each part 1) Front Panel LCM-119-3G Center Maker Marker Front Key Re-imagine Beyond Technology sales@plurainc.com... -
Page 9: Lcm-123-3G
Operating Instructions LCM-3G SERIES LCM-123-3G Center Maker Marker Front Key Front Keys Arrangements Front Keys Operations Key Name Operation ► Power ON/OFF Button. This button is operated after being pressed about 3 seconds. STANDBY ► Activates OSD menu of selected input source. -
Page 10: Front Panel Led Operations
Operating Instructions LCM-3G SERIES ► Executes function (by OSD help commands) in main OSD menu. ► Increases values of user menu in main OSD menu. ► Executes function (by OSD help commands) in main OSD menu. ► Activates main OSD menu. -
Page 11: Rear Panel
Operating Instructions LCM-3G SERIES 2) Rear Panel LCM-119-3G LCM-123 Connection Details Re-imagine Beyond Technology sales@plurainc.com... -
Page 12: Interface Description
Operating Instructions LCM-3G SERIES Interface description Interface Description SDI 1 IN SDI Input SDI 2 IN SDI 1 OUT SDI 1 Loop Through Output. SDI 2 OUT SDI 2 Loop Through Output. RS-232 IN Update/Multi Control/Auto color calibration HDMI High Definition Multimedia Input... -
Page 13: To Show And Remove The Menu
Operating Instructions LCM-3G SERIES To show and remove the Menu Press the MENU button to display the menu. A second press of the MENU button will take you back to monitor viewing. To go to the next level Press button. -
Page 14: Basic Operation
Operating Instructions LCM-3G SERIES 5. BASIC OPERATION 1) Turning On the Monitor 1. First, connect power cord correctly. At this moment, the monitor switches to standby or power on mode. In standby mode, in order to turn monitor on, press the ST-BY button. -
Page 15: Select Video Input
Operating Instructions LCM-3G SERIES • Your monitor's OSD (On Screen Display) may differ slightly from what is shown in this manual 7. SELECT VIDEO INPUT How to Select Video Source by OSD 1. Press the SET/INPUT button and then UP/DOWN button to select the desired video source. -
Page 16: Color Menu
Operating Instructions LCM-3G SERIES 8. Color MENU 1) Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness directly from -50 to 50 Contrast, Brightness, Sharpness, Color (All Sources), Tint (except PC, Component), Phase (Component). Re-imagine Beyond Technology... -
Page 17: Color Select
Operating Instructions LCM-3G SERIES 2) Color Select - For Setting the Color temperature or adjusting RGB gain value directly - User (User setting RGB gain value), VAR(3200K ~ 11000K), Often used value(11000K, 9300K, 6500K, 5400K,3200K) 3) Backlight Adjust -Inverter dimming Level select (0~100) 4) Gamma select - Gamma Level Select (0.8 ~ 3.0) -
Page 18: Image Menu
Operating Instructions LCM-3G SERIES 9. Image MENU 1) Aspect Ratio - For setting the aspect ratio. - Full Screen: The images are displayed with a panel size. - Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1: The images are displayed with each aspect ratio. -
Page 19: Nr (Noise Reduction)
Operating Instructions LCM-3G SERIES Zoom X position: Coordinate of vid ide e o image’s column position. Zoom Y position: Coordinate of vid ide e o image’s row position. 4) NR (Noise Reduction) Noise Reduction on/off (NR is for r Video signal SD-SDI, Composite, S-Video, Y/Pb b /Pr, DTV timing) -
Page 20: Safety Marker
Operating Instructions LCM-3G SERIES 1. Marker : 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, User1, User2, User3 fitted panel size marker on screen. 2. User Marker: The user Marker size. (Below panel size) Example (1440x900 panel) 16:9 (16:9 Marker) 16:9 (4:3 Marker) -
Page 21: Marker Width
Operating Instructions LCM-3G SERIES 4) Marker Width -Marker line thickness setting. (0~10) 5) Marker Color - Marker Line Color: Select Marker line color (White, Yellow, Blue, RED, Black) 6) Safety Marker Color - Safety Line Color: Select Safety line color (White, Yellow, Blue, RED,... -
Page 22: System Menu
Operating Instructions LCM-3G SERIES System MENU 1) Setup Load & Setup Save - Setup Load: Load user saved values or default value - Setup Save: Save user setting values at user 1, 2, 3. 2) Function Key - Function Key: Select the function to be allocated to the FUNCTION buttons... -
Page 23: On Screen Display
Operating Instructions LCM-3G SERIES Often used value(11000K, 9300K, 6500K, 5400K,3200K) Gamma Select Select Gamma curve PIP on/off PIP Source PIP input Source can operate with different signal and type. PIP size Choose PIP size of Small/POP1/POP2 PIP Position Choose the pip position on the each corner of the pane... -
Page 24: Id Style
Operating Instructions LCM-3G SERIES UMD: UMD display on/off UMD Character: UMD Character Select UMD Position: UMD display position select (L-T, C-T, R-T, L-B, C-B, R-B) UMD FG Color: UMD Character color Select (RGB_255_192_128_Transparent) UMD BG Color: UMD BG color Select (RGB_255_192_128_Transparent) -
Page 25: Advanced Menu
Operating Instructions LCM-3G SERIES - Set Active SET ID number is the max number of monitors’ controlled remotely via Ethernet or RS-232 - If your monitor control network consists of 15 monitors, then Active SET ID must set to 15. -
Page 26: Screen Control
- Internal Pattern: 100% Color Bars, 75% Color Bars, Luma, RGB, White, Black, RED, Blue, Green 5) Network Config -Plura System Controller (PSC-400) Network setting. Load Network Settings: ETHERNET configuration Press “Enter”. (ID/IP Address/Gateway/Subnet Load) DHCP: DHCP on/off (Manual IP settings – DHCP on) * “Apply”... -
Page 27: Pip Menu (Picture In Picture)
Operating Instructions LCM-3G SERIES PIP MENU (Picture IN Picture) - Watch two programs or sources at the same time. And set up PIP size and position. 1) PIP ON/OFF - Control PIP function On/Off. 2) Input Source - PIP input Source can operate with different signal and type. -
Page 28: Aspect Ratio
Operating Instructions LCM-3G SERIES 3) Aspect Ratio - Choose PIP size of Small/POP1/POP2 PIP Small POP2 PIP1 4) Position - Choose the pip position on the each corner of the panel Re-imagine Beyond Technology sales@plurainc.com... -
Page 29: Pip Blend
Operating Instructions LCM-3G SERIES 5) PIP Blend -Blend to PIP size of Small 6) IP Swap - Using Swap option, you can excha a n n ge two programs or source at the same time. . Re-imagine Beyond Technology sales@plurainc.com... -
Page 30: Osd Tree
Operating Instructions LCM-3G SERIES OSD TREE Re-imagine Beyond Technology sales@plurainc.com... -
Page 31: Color
Operating Instructions LCM-3G SERIES 1) Color 2) Image Re-imagine Beyond Technology sales@plurainc.com... -
Page 32: Marker
Operating Instructions LCM-3G SERIES 3) Marker Re-imagine Beyond Technology sales@plurainc.com... -
Page 33: System
Operating Instructions LCM-3G SERIES 4) System Re-imagine Beyond Technology sales@plurainc.com... -
Page 34: Advanced
Operating Instructions LCM-3G SERIES 5) Advanced Re-imagine Beyond Technology sales@plurainc.com... -
Page 35: Pip
Operating Instructions LCM-3G SERIES 6) PIP Re-imagine Beyond Technology sales@plurainc.com... - Page 36 Operating Instructions LCM-3G SERIES Contact Us U.S.A. Corporate Offices: Plura Broadcast, Inc. Ph: +1-602-944-1044 Sales@plurainc.com GERMANY Plura Europe GmbH Ph: +49-6725-918006-70 Sales@plurainc.com U.A.E. Plura MEA Ph: +971-50-715-9625 Sales@plurainc.com S. KOREA Plura Asia Ph: +82-10-6688-8826 Sales@plurainc.com Re-imagine Beyond Technology sales@plurainc.com...
