- Page 1 Operating Instructions LCM-3G Series LCM-207-3G LCM-3G Series LCM-307-3G LCM-209-3G LCM-119-3G LCM-123-3G LCM-132-3G LCM-147-3G...
-
Page 2: Table Of Contents
User’s Manual: LCM-3G Series PRECAUTION -------------------------------------------------------------------------------------------------------------------------------------------------------- 4 OVERVIEW ---------------------------------------------------------------------------------------------------------------------------------------------------- 7 GENERAL FEATURES ---------------------------------------------------------------------------------------------------------------------------------------- 7 FUNCTIONAL EXPLANATION OF EACH PART -------------------------------------------------------------------------------------------------------- 8 ----------------------------------------------------------------------------------------------------------------------------------------------- 8 RONT ANEL LCM-119-3G--------------------------------------------------------------------------------------------------------------------------------------------------- 8 LCM-123-3G--------------------------------------------------------------------------------------------------------------------------------------------------- 9 Front Keys Arrangements---------------------------------------------------------------------------------------------------------------------------------- 9 Front Keys Operations -------------------------------------------------------------------------------------------------------------------------------------- 9 Front panel LED Operations----------------------------------------------------------------------------------------------------------------------------- 10... - Page 3 User’s Manual: LCM-3G Series ------------------------------------------------------------------------------------------------------------------------------------------- 20 AFETY ARKER -------------------------------------------------------------------------------------------------------------------------------------------- 20 ENTER AKER ------------------------------------------------------------------------------------------------------------------------------------------- 21 ARKER IDTH -------------------------------------------------------------------------------------------------------------------------------------------- 21 ARKER OLOR ----------------------------------------------------------------------------------------------------------------------------------- 21 AFETY ARKER OLOR SYSTEM MENU------------------------------------------------------------------------------------------------------------------------------------------ 22 & S ------------------------------------------------------------------------------------------------------------------------------- 22 ETUP ETUP --------------------------------------------------------------------------------------------------------------------------------------------- 22 UNCTION --------------------------------------------------------------------------------------------------------------------------------------- 23 CREEN...
-
Page 4: Precaution
To reduce the risk of any electric shock, do not remove back cover as there are no user serviceable parts inside. Please refer to Plura or a qualified service personnel/agent. To prevent fire or shock hazard, do not expose the rear side of the unit to rain or moisture. - Page 5 A product should be transported with care. Excessive force and uneven surfaces may cause the damage to product. 8. Attachments Do not use attachments not recommended by Plura as they may cause hazards. 9. Ventilation Do not block any of the ventilation openings.
- Page 6 User’s Manual: LCM-3G Series 15. Earthling the product This product must be earthed properly to comply with the safety regulations in the country of use. If you are unsure of these regulations, please consult a qualified electrician. 16. Servicing Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages or other hazards.
-
Page 7: Overview

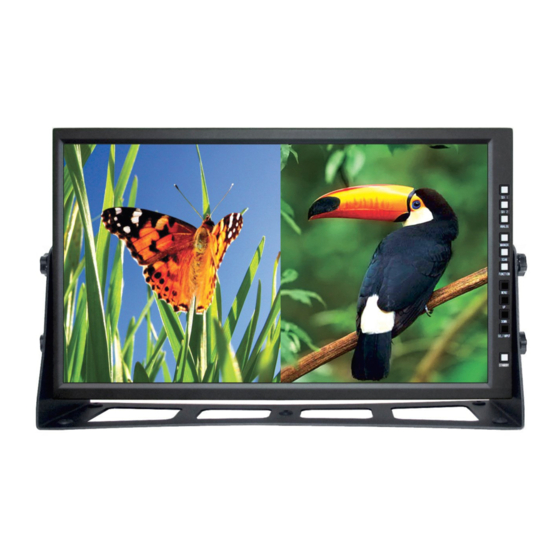

User’s Manual: LCM-3G Series 1. OVERVIEW LCM Series consists of high quality HD LCD monitors, specifically designed for use in Broadcast environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards. It supports up to 3Gbps-1080-60P along with all other Digital & Analog inputs &... -
Page 8: Functional Explanation Of Each Part
User’s Manual: LCM-3G Series 3. Functional explanation of each part 1) Front Panel LCM-119-3G Center Maker Marker Front Key Page 8 of 45... -
Page 9: Lcm-123-3G
User’s Manual: LCM-3G Series LCM-123-3G Center Maker Marker Front Key Front Keys Arrangements Front Keys Operations Key Name Operation ► Power ON/OFF Button. This button is operated after being pressed about 3 seconds. STANDBY ► Activates OSD menu of selected input source. -
Page 10: Front Panel Led Operations
User’s Manual: LCM-3G Series ► Executes function (by OSD help commands) in main OSD menu. ► Increases values of user menu in main OSD menu. ► Executes function (by OSD help commands) in main OSD menu. ► Activates main OSD menu. -
Page 11: Rear Panel
User’s Manual: LCM-3G Series 2) Rear Panel LCM-119-3G LCM-123 Connection Details Page 11 of 45... -
Page 12: Interface Description
User’s Manual: LCM-3G Series Interface description Interface Description SDI 1 IN SDI Input SDI 2 IN SDI 1 OUT SDI 1 Loop Through Output. SDI 2 OUT SDI 2 Loop Through Output. RS-232 IN Update/Multi Control/Auto color calibration HDMI High Definition Multimedia Input... -
Page 13: To Show And Remove The Menu
User’s Manual: LCM-3G Series To show and remove the Menu Press the MENU button to display the menu. A second press of the MENU button will take you back to monitor viewing. To go to the next level Press button. -
Page 14: Basic Operation
User’s Manual: LCM-3G Series 5. BASIC OPERATION 1) Turning On the Monitor 1. First, connect power cord correctly. At this moment, the monitor switches to standby or power on mode. In standby mode, in order to turn monitor on, press the ST-BY button. -
Page 15: Select Video Input
User’s Manual: LCM-3G Series • Your monitor's OSD (On Screen Display) may differ slightly from what is shown in this manual 7. SELECT VIDEO INPUT How to Select Video Source by OSD 1. Press the SET/INPUT button and then UP/DOWN button to select the desired video source. -
Page 16: Color Menu
User’s Manual: LCM-3G Series 8. Color MENU 1) Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness directly from -50 to 50 Contrast, Brightness, Sharpness, Color (All Sources), Tint (except PC, Component), Phase (Component). Page 16 of 45... -
Page 17: Color Select
User’s Manual: LCM-3G Series 2) Color Select - For Setting the Color temperature or adjusting RGB gain value directly - User (User setting RGB gain value), VAR(3200K ~ 11000K), Often used value(11000K, 9300K, 6500K, 5400K,3200K) 3) Backlight Adjust -Inverter dimming Level select (0~100) 4) Gamma select - Gamma Level Select (0.8 ~ 3.0) -
Page 18: Image Menu
User’s Manual: LCM-3G Series 9. Image MENU 1) Aspect Ratio - For setting the aspect ratio. - Full Screen: The images are displayed with a panel size. - Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1: The images are displayed with each aspect ratio. -
Page 19: Nr (Noise Reduction)
User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series Zoom X position: Coordinate of video image’s column position. Zoom X position: Coordinate of video image’s column position. Zoom X position: Coordinate of video image’s column position. Zoom Y position: Coordinate of video image’s row position. -
Page 20: Safety Marker
User’s Manual: LCM-3G Series 1. Marker : 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, User1, User2, User3 fitted panel size marker on screen. 2. User Marker: The user Marker size. (Below panel size) Example (1440x900 panel) 16:9 (16:9 Marker) 16:9 (4:3 Marker) -
Page 21: Marker Width
User’s Manual: LCM-3G Series 4) Marker Width -Marker line thickness setting. (0~10) 5) Marker Color - Marker Line Color: Select Marker line color (White, Yellow, Blue, RED, Black) 6) Safety Marker Color - Safety Line Color: Select Safety line color (White, Yellow, Blue, RED,... -
Page 22: System Menu
User’s Manual: LCM-3G Series System MENU 1) Setup Load & Setup Save - Setup Load: Load user saved values or default value - Setup Save: Save user setting values at user 1, 2, 3. 2) Function Key - Function Key: Select the function to be allocated to the FUNCTION buttons... -
Page 23: On Screen Display
User’s Manual: LCM-3G Series Often used value(11000K, 9300K, 6500K, 5400K,3200K) Gamma Select Select Gamma curve PIP on/off PIP Source PIP input Source can operate with different signal and type. PIP size Choose PIP size of Small/POP1/POP2 PIP Position Choose the pip position on the each corner of the pane... -
Page 24: Id Style
User’s Manual: LCM-3G Series UMD: UMD display on/off UMD Character: UMD Character Select UMD Position: UMD display position select (L-T, C-T, R-T, L-B, C-B, R-B) UMD FG Color: UMD Character color Select (RGB_255_192_128_Transparent) UMD BG Color: UMD BG color Select (RGB_255_192_128_Transparent) -
Page 25: Advanced Menu
User’s Manual: LCM-3G Series - Set Active SET ID number is the max number of monitors’ controlled remotely via Ethernet or RS-232 - If your monitor control network consists of 15 monitors, then Active SET ID must set to 15. -
Page 26: Screen Control
- Internal Pattern: 100% Color Bars, 75% Color Bars, Luma, RGB, White, Black, RED, Blue, Green 5) Network Config -Plura System Controller (PSC-400) Network setting. Load Network Settings: ETHERNET configuration Press “Enter”. (ID/IP Address/Gateway/Subnet Load) DHCP: DHCP on/off (Manual IP settings – DHCP on) * “Apply”... -
Page 27: Pip Menu (Picture In Picture)
User’s Manual: LCM-3G Series PIP MENU (Picture IN Picture) - Watch two programs or sources at the same time. And set up PIP size and position. 1) PIP ON/OFF - Control PIP function On/Off. 2) Input Source - PIP input Source can operate with different signal and type. -
Page 28: Aspect Ratio
User’s Manual: LCM-3G Series 3) Aspect Ratio - Choose PIP size of Small/POP1/POP2 PIP Small POP2 PIP1 4) Position - Choose the pip position on the each corner of the panel Page 28 of 45... -
Page 29: Pip Blend
User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series 5) PIP Blend 5) PIP Blend 5) PIP Blend -Blend to PIP size of Small -Blend to PIP size of Small -Blend to PIP size of Small 6) IP Swap... -
Page 30: Osd Tree
User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series OSD TREE OSD TREE OSD TREE Page 30 of 45 Page 30 of 45 Page 30 of 45... -
Page 31: Color
User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series 1) Color 1) Color 1) Color 2) Image 2) Image 2) Image Page 31 of 45 Page 31 of 45 Page 31 of 45... -
Page 32: Marker
User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series 3) Marker 3) Marker 3) Marker Page 32 of 45 Page 32 of 45 Page 32 of 45... -
Page 33: System
User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series 4) System 4) System 4) System Page 33 of 45 Page 33 of 45 Page 33 of 45... -
Page 34: Advanced
User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series 5) Advanced 5) Advanced 5) Advanced Page 34 of 45 Page 34 of 45 Page 34 of 45... -
Page 35: Pip
User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series User’s Manual: LCM-3G Series 6) PIP 6) PIP 6) PIP Page 35 of 45 Page 35 of 45 Page 35 of 45... -
Page 36: Specifications
User’s Manual: LCM-3G Series SPECIFICATIONS 1) Panel Specifications Model Specifications Panel TFT LCD Panel 2 x 7 inch Resolution 1024(H) × 600(V) (Contrast 700:1) LCM-307-3G Brightness 350 cd/m2 Viewing Angle R/L: 140 (Typ), U/D 140 (Typ) Panel TFT LCD Panel 2 x 9 inch Resolution 800(H) ×... -
Page 37: Supported Signals
User’s Manual: LCM-3G Series Resolution 1920(H) X 1080(V) (Contrast 1000:1) Brightness 300 cd/m2 Viewing Angle R/L: 178 (Typ), U/D 178 (Typ) Panel TFT LCD Panel 47 inch Resolution 1920(H) X 1080(V) (Contrast 4000:1) LCM-147-3G Brightness 450 cd/m2 Viewing Angle R/L: 178 (Typ), U/D 178 (Typ) -
Page 38: Supported Timings
User’s Manual: LCM-3G Series V Frequency Range : 55 ~ 90 Hz Maximum resolution : 1920x1080 60Hz Maximum pixel rate : 162 MHz DTV mode support: 720P/1080i/1080p SOG sync support 1080p 1080i ANALOG Component 720P (DTV/DVD) 480i / 576i CVBS... - Page 39 User’s Manual: LCM-3G Series 640x480 34.940 69.884 28.513 640x480 37.861 72.809 29.765 640x480 37.500 75.0 31.5 640x480 43.269 85.008 36.0 640x480 45.540 90.0 37.889 720x400 31.469 70.087 28.322 720x400 37.927 85.039 35.5 800x600 35.156 56.25 36.0 800x600 37.879 60.317 40.0 800x600 43.764...
- Page 40 User’s Manual: LCM-3G Series 1024x768 72.810 90.0 100.187 1152x864 53.700 60.0 81.624 1152x864 62.932 69.924 96.663 1152x864 67.500 75.0 104.993 1152x870 68.681 75.062 100.0 1152x900 61.846 66.0 94.787 1152x900 72.713 76.047 105.561 1280x720 47.760 60.0 74.481 1280x720 52.500 70.0 89.040 1280x720 54.072...
- Page 41 User’s Manual: LCM-3G Series 720x480 31.469 59.94 25.175 720x576 31.250 50.0 26.566 1280x720 44.964 59.94 74.176 1280x720 37.500 50.0 60.466 1920x1080 33.750 60.0 74.25 Interlaced 1920x1080 28.125 50.0 70.723 Interlaced 1920x1080 31.250 50.0 72.000 Interlaced 1920x1080 67.5 148.5 Progressive Page 41 of 45...
-
Page 42: Mechanical Dimensions
User’s Manual: LCM-3G Series MECHANICAL DIMENSIONS LCM-207-3G & LCM-307-3G *AutoCad.dwg available upon request 3 RU LCM-209-3G *AutoCad.dwg available upon request 4 RU Page 42 of 45... - Page 43 User’s Manual: LCM-3G Series LCM-119-3G *AutoCad.dwg available upon request LCM-123-3G *AutoCad.dwg available upon request Page 43 of 45...
- Page 44 User’s Manual: LCM-3G Series LCM-132-3G *AutoCad.dwg available upon request LCM-147-3G *AutoCad.dwg available upon request Page 44 of 45...
- Page 45 www.plurainc.com U.S.A. Germany U.A.E. S.Korea Page 45 of 45...
