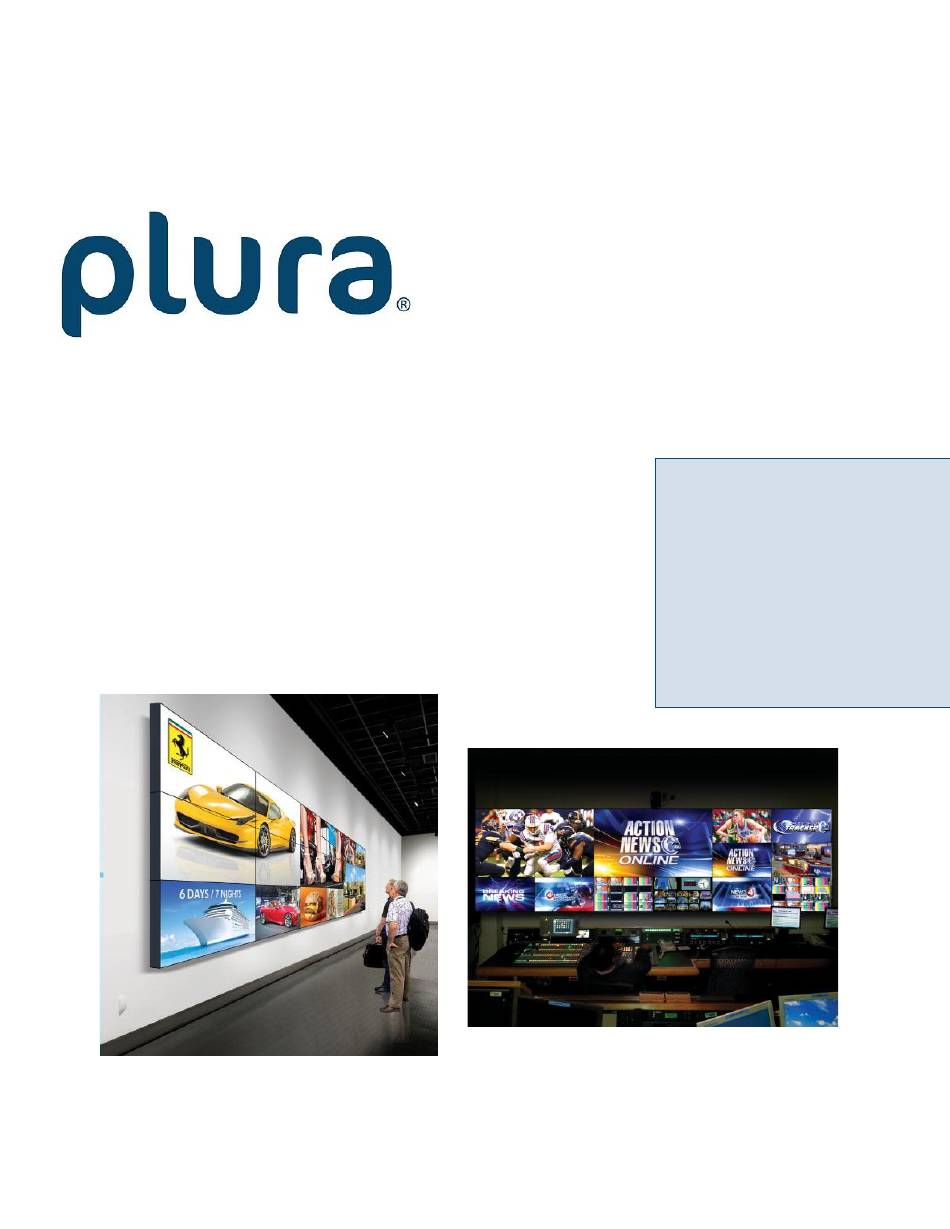

Operating
Instructions
UNB-4K Series
UNB-249-4K
UNB-255-4K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNB-4K Series and is the answer not in the manual?

Questions and answers

Related Manuals for Plura UNB-4K Series

Summary of Contents for Plura UNB-4K Series

  • Page 1 Operating UNB-4K Series Instructions UNB-249-4K UNB-255-4K...

  • Page 2: Table Of Contents

     PREACUTION..................................5  OVERVIEW ..................................7  A D VANCED FEATURES..............................7  PLURA S3 PLEDGE ................................8  SPECIFICATIONS................................9  REMOTE CONTROL KEY RRNGEMENTS.......................... 10 Front panel LED Operations ........................... 10 7 Key Descriptions ............................10 IR-Remote controller Descriptions ......................... 11 ...
  • Page 3 UNB-4K Series USER MANUAL Heat Control Settings............................25 Fan Control ..............................25 Heat Control ..............................26 Network ................................26 Network................................27 Load Network Setting............................. 27 DHCP................................28 Network Information ............................. 28 Save Current Setting ............................29 Timer Settings ..............................30 Current Time ..............................
  • Page 4 UNB-4K Series USER MANUAL Set Input Source to RGB Input........................43 Read Power State ............................43  MECHANICAL DRAWINGS.............................. 44 UNB-249-4K ..............................44 UNB-255-4K ..............................45...

  • Page 5: Preacution

    UNB-4K Series USER MANUAL  PREACUTION Before operating this unit, please read this manual carefully. WARNING: To reduce the risk of any electric shock, please do not remove the back cover. No user serviceable parts inside. Refer any service matters to qualified service personnel.
  • Page 6 This product should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product damages. Accessories Do not use accessories not recommended by PLURA Inc. as they may cause hazards. Ventilation Do not block any of the ventilation openings.

  • Page 7: Overview

    Commercial, digital signage and A/V video wall applications. The Plura UNB series can be control up to 100 monitors via LAN IP network and/or RS232 daisy chains using exclusive Plura Wall express software. The UNB series supports SDI, HDMI & Display Port inputs capability, up to UHD (3840 x 2160) resolution through the HDMI daisy chain capability to show one image across the entire video wall.

  • Page 8: Plura S3 Pledge

    Plura takes its reputation very seriously when designing, manufacturing and delivering all our products. We strive to build the best solutions with the flexibility and reliability required for 24/7 operation capability. Our new UNB-4K series allow you to display, monitor and control your digital and other media sources immediately and in real time. UNB-4K solution offers color accuracy and reliable display solution to your management, engineering &...

  • Page 9: Specifications

    UNB-4K Series USER MANUAL  SPECIFICATIONS...

  • Page 10: Remote Control Key Rrngements

    UNB-4K Series USER MANUAL  REMOTE CONTROL KEY RRNGEMENTS 1. Front panel LED Operations Status Color Operatio Power Off Normal Green Green Blink DPMS Blink signal Download Green Fast Blink 2. 7 Key Descriptions Button Name Operation ► Power On/Off.

  • Page 11: Ir-Remote Controller Descriptions

    UNB-4K Series USER MANUAL ► Increases program number & tune channel. ► Navigates input source. ► Executes function (by OSD help commands) in main OSD menu. ► Navigates previous menu in main OSD menu. ► Decreases program number & tune channel.

  • Page 12: I/O Rear Panel

    UNB-4K Series USER MANUAL  I/O REAR PANEL 1. I/O Rear Panel Description Interface Description High Definition Multimedia Input – up to 3840x2160@60Hz HDMI I/P (HDMI2.0) High Definition Multimedia Loop Output HDMI O/P DISPLAYPORT Input – up to 3840x2160@60Hz (v1.2a)

  • Page 13: Menu Overview

    UNB-4K Series USER MANUAL  MENU OVERVIEW In this menu system, there are several ways to customize the menu settings provided. Most menus consist of three levels to make any changes, however sometimes settings requires greater depth. If you reach the third level of the MENU system and fourth level is necessary . The fourth level can be accessed by pressing OK button 1) To display &...

  • Page 14: Select Video Input

    UNB-4K Series USER MANUAL 1. Select Video Input a. How to Select Video Source using OSD - Default available sources: Display Port, HDMI & HD-SDI 1. Press the SOURCE button and then button to select each video source. 2. Press the OK button to go to desired video source 2.
  • Page 15 UNB-4K Series USER MANUAL Brightness Sharpness Saturation - Adjust the picture settings to suit your preference and viewing conditions. 1. Press the MENU button to select the PICTURE mode. 2. Press the OK button or RIGHT button to select Contrast menu.

  • Page 16: Aspect Ratio

    UNB-4K Series USER MANUAL b. Aspect Ratio - Selects the screen size. 1. Press the MENU button to select the PICTURE mode. 2. Press the OK button (or RIGHT button) and then DOWN button to select Aspect Ratio menu. 3. Press the OK button or RIGHT button to select Adjustment menu.

  • Page 17: Dimming

    UNB-4K Series USER MANUAL 2. Press the OK button (or RIGHT button) and then DOWN button to select Auto Dimming Mode menu. 3. Press the OK button or RIGHT button to select Adjustment menu. 4. Press the UP / DOWN buttons to select desired option: : Adjust the dimming level by the manual operation.

  • Page 18: Max Ambient / Min Ambient

    UNB-4K Series USER MANUAL e. Max Ambient / Min Ambient - Dimming Adjustments based on ambient light 1. Press the MENU button to select the PICTURE mode. 2. Press the OK button (or RIGHT button) and then DOWN button to select Max(Min) Dim Ambient menu.

  • Page 19: Color Settings

    UNB-4K Series USER MANUAL 3. Color Settings a. Color Temperature - Choose one of four automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue.

  • Page 20: Gamma

    4. Press the UP & DOWN button to select desired option. [2.0, 2.2, 2.35, 2.4, 2.6]  We recommend the Plura Calibration process for setting Gamma value 5. Press MENU button or LEFT button to return to the previous menu. Or press the EXIT button.

  • Page 21: Input Color Format

    UNB-4K Series USER MANUAL d. Input Color Format - To select the proper color space values. [ RGB / YPbPr422 (YPbPr444)] 1. Press the MENU button and then DOWN button to select the Color. 2. Press the OK button (or RIGHT button) and then DOWN button to select Input Color Format menu.

  • Page 22: Video Wall Settings

    UNB-4K Series USER MANUAL 4. Press the UP or DOWN button to select desired option. [ Auto Select, 0-255, 16-235 ] 5. Press MENU button or LEFT button to return to the previous menu. Or press the EXIT button. 4. Video Wall Settings - This menu item is for MULTI WALL Stack Application.
  • Page 23 UNB-4K Series USER MANUAL X Max : Maximum number of column tiles to divide video image. (Support up to 11step) Y Max : Maximum number of row tiles to divide video image. (Support up to 11step) X position : Coordinate of video image’s column position.

  • Page 24: Audio

    UNB-4K Series USER MANUAL - SET ID number is the number of the Monitor based on the monitor location within the wall layout to be able to control Via RS-232 (TCP/IP) - If total number of monitor is 15, then the Active SET ID must set to 15.

  • Page 25: Heat Control Settings

    UNB-4K Series USER MANUAL 6. Heat Control Settings a. Fan Control 1. Press the MENU button and then RIGHT button to select the Heat Control Settings. 2. Press the OK button (or RIGHT button) to select Fan Contol menu. 3. Press the OK button or RIGHT button to select Adjustment menu.

  • Page 26: Heat Control

    UNB-4K Series USER MANUAL b. Heat Control 1. Press the MENU button and then DOWN button to select the Heat Control Settings. 2. Press the OK button (or RIGHT button) and then DOWN button to select Second Settings. 3. Press the OK button or RIGHT button to select Adjustment menu.

  • Page 27: Network

    UNB-4K Series USER MANUAL Network setting to control monitor via Ethernet. a. Network 1. Press the MENU button and then DOWN button to select the Network. 2. Press the OK button (or RIGHT button) and then DOWN button to select Network.

  • Page 28: Dhcp

    UNB-4K Series USER MANUAL 2. Press the OK button (or RIGHT button) and then DOWN button to select Load Network Setting. 3. Press the OK button or RIGHT button to select Adjustment menu. 4. Press MENU button or LEFT button to return to the previous menu. Or press the EXIT button.

  • Page 29: Save Current Setting

    UNB-4K Series USER MANUAL e. Save Current Setting 1. Press the MENU button and then DOWN button to select the Network. 2. Press the OK button (or RIGHT button) and then DOWN button to select Save Current Setting. 3. Press the OK button or RIGHT button to select Adjustment menu.

  • Page 30: Timer Settings

    UNB-4K Series USER MANUAL 8. Timer Settings a. Current Time - If current time setting is incorrect, reset the clock manually. - When the AC POWER is OFF, the current time will be memorized. 1. Press the MENU button and then DOWN button to select the Timer Settings.

  • Page 31: Other Settings

    UNB-4K Series USER MANUAL 2. Press the OK button (or RIGHT button) and then DOWN button to select Second Settings. 3. Press the OK button or RIGHT button to select Adjustment menu. 4. Press the UP or DOWN button to select desired option.

  • Page 32: Menu Transparency

    UNB-4K Series USER MANUAL b. Menu Transparency - Set the OSD transparency. 1. Press the MENU button and then DOWN button to select the Other Settings. 2. Press the OK button (or RIGHT button) and then DOWN button to select Menu Transparency menu.

  • Page 33: Power Save Mode

    UNB-4K Series USER MANUAL 1. Press the MENU button and then DOWN button to select the Other Settings. 2. Press the OK button (or RIGHT button) and then DOWN button to select OSD Timeout menu. 3. Press the OK button or RIGHT button to select Adjustment menu.

  • Page 34: Local Dimming

    UNB-4K Series USER MANUAL e. Local Dimming - Set the local dimming for the panel. 1. Press the MENU button and then DOWN button to select the Other Settings. 2. Press the OK button (or RIGHT button) and then DOWN button to select Local Dimming menu.

  • Page 35: Software Update

    UNB-4K Series USER MANUAL 1. Press the MENU button and then DOWN button to select the Other Settings. 2. Press the OK button (or RIGHT button) and then DOWN button to select Reset menu. 3. Press the OK button or RIGHT button to select Enter.

  • Page 36: Version

    UNB-4K Series USER MANUAL File for download is not in the USB stick. Please check download file. 5. When the update is successfully completed, the monitor will restart automatically. h. Version - Check the information of the current Firmware. 1. Press the MENU button and then DOWN button to select the Other Settings.

  • Page 37: Serial Control Protocol

    UNB-4K Series USER MANUAL  SERIAL CONTROL PROTOCOL. 1. Serial Setup Item Settings Baud rate 19200bps Data Bit 8bit Stop Bit 1bit Parity Bit None Stream Control None a. Serial Cable between PC and AD BOARD (simple null modem cable)

  • Page 38: Protocols

    UNB-4K Series USER MANUAL 2. Protocols a. Virtual Remote Control Packet (4Bytes) 0xF4 0x88 ID(0~0xFE) 0xFD Key Code. Command Format 0xFX : F = Command Start Sending , X = No of Byte to Send Current Example (0xF4) : Start Sending 4 Bytes of Packet Data b.

  • Page 39: Read Parameters From Ad Board

    UNB-4K Series USER MANUAL d. Read Parameters from AD BOARD Packet(4Bytes) 0xF4 0x89 ID(0~0xFE) 0XFC PARAM Packet(1Byte) AD BOARD 0xF1 VALUE Command Format (Response) 0xFX : F = Command Start Sending , X = No of Byte to Send Example...
  • Page 40 UNB-4K Series USER MANUAL 0x04 CONTRAST 0x05 BRIGHTNESS 0x07 SHARPNESS Full Screen Auto 0x0F Aspect Ratio 16:9 0x10 Red Gain 0x11 Green Gain 0x12 Blue Gain MUTE ON 0x17 Mute MUTE OFF 0x1B VOLUME 0x23 ON HOUR 0x24 ONMINUTE 0x25...
  • Page 41 UNB-4K Series USER MANUAL 0x28 OFFMINUTE 0x29 OFF TIME ONOFF 0x2A SETID 0x32 CURRENT HOUR 0x33 CURRENT MINUTE 0x36 REMOTE LOCK 0x37 (7)(8) ILLUMINANCE 0x38 MAX_ILLUMINANCE 25000 0x39 MIN_ILLUMINANCE 2550 0x3A AUTO_DIM DIM_LEVEL 0x3B 0x3C (5)(8) CURTEMP_MAIN 0x3E FAN ACTIVE TEMP...
  • Page 42 UNB-4K Series USER MANUAL 0x44 X MAX 0x45 Y MAX 0x46 X GAP 0x47 Y GAP 0x48 TEMP_SHUTDOWN 0x6C Local Dim 0x69 PC AUTO ADJUST 0x6A MIDDLE HIGH 0x6B POWER SAVE MODE 0x68 RESET 0xFE POWER Notice CURSOURCE Setting Value...

  • Page 43: Control Command Example

    UNB-4K Series USER MANUAL Ex) Desired Ambient is 200 Lux, Setting is 20 (= 200 / 10) DIM_LEVEL Settings Dimming is controlled by Brightness Settings. TEMPERATURE Settings Setting Value = Desired temperture(by Celsius) x 2 + 60 Ex) Desired temperature is 60℃, Setting is 180 (= 60 x 2 + 60)

  • Page 44: Mechanical Drawings

    UNB-4K Series USER MANUAL  MECHANICAL DRAWINGS 1. UNB-249-4K...

  • Page 45: Unb-255-4K

    UNB-4K Series USER MANUAL 2. UNB-255-4K...
  • Page 46 www.plurabroadcast.com Phoenix New York Germany Dubai Seoul Mexico City...
