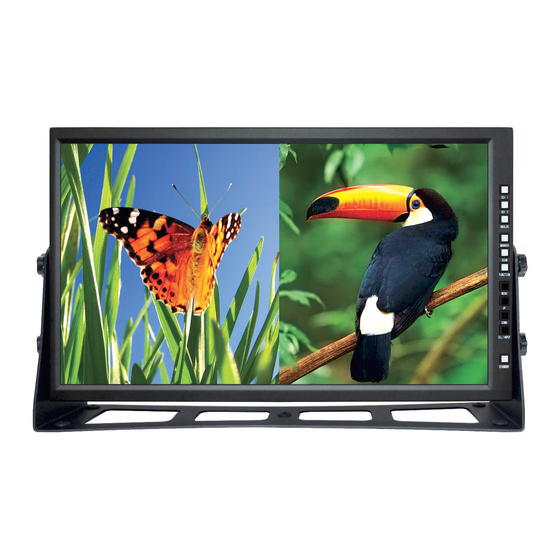

Plura LCM-119-3G User Manual

Multi format lcd monitor
Hide thumbs Also See for LCM-119-3G:
Table of Contents

Advertisement

Quick Links

Download this manual
LCM-3G SERIES
LCM-3G SERIES
Multi Format LCD Monitor
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCM-119-3G and is the answer not in the manual?

Questions and answers

Related Manuals for Plura LCM-119-3G

Summary of Contents for Plura LCM-119-3G

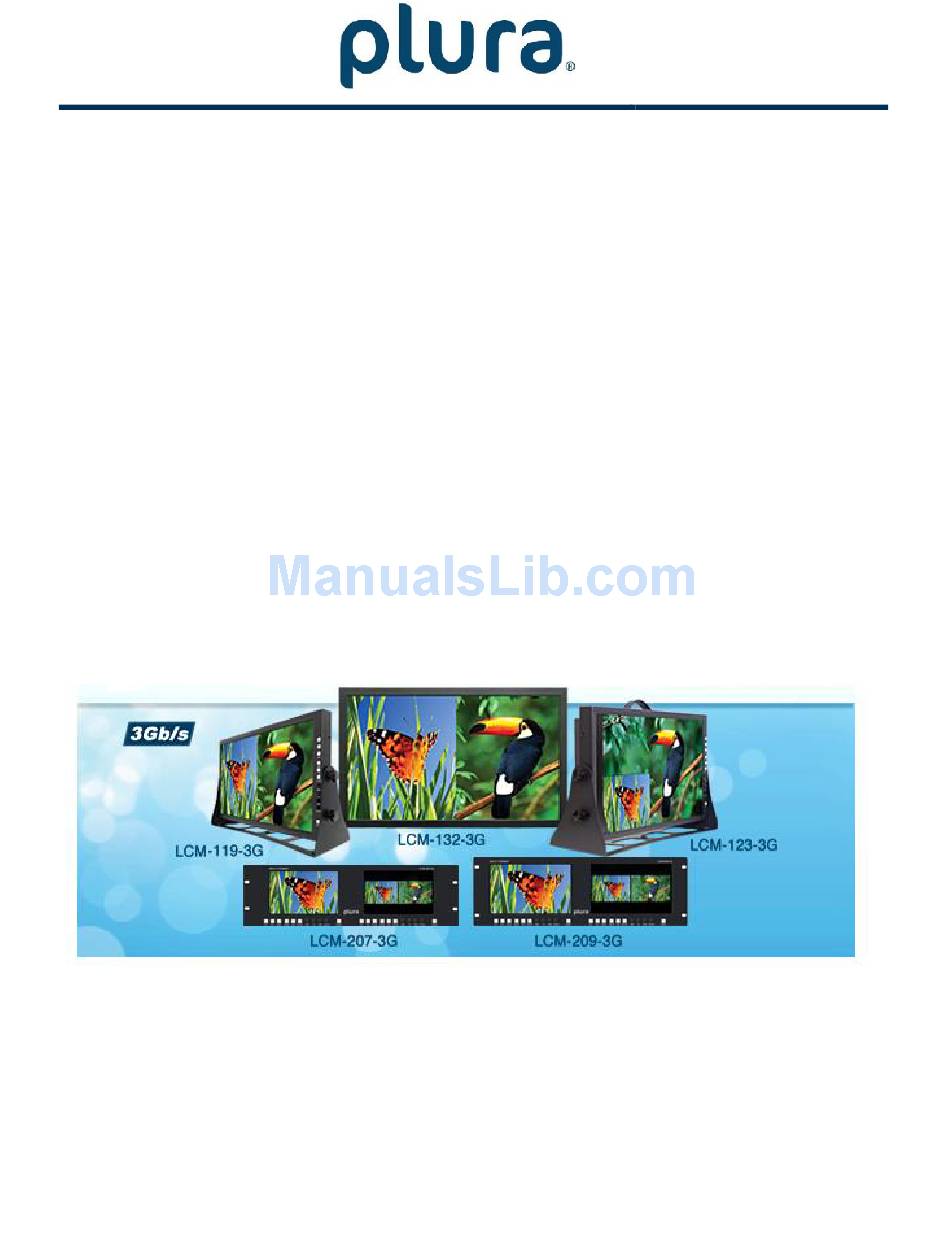

  • Page 1 LCM-3G SERIES LCM-3G SERIES Multi Format LCD Monitor User’s Manual...

  • Page 2: Table Of Contents

    LCM-3G SERIES PRECAUTION----------------------------------------------------------- ERROR! BOOKMARK NOT DEFINED. OVERVIEW--------------------------------------------------------- ERROR! BOOKMARK NOT DEFINED. GENERAL FEATURES-------------------------------------------------------------------------------------8 FUNCTIONAL EXPLANATION OF EACH PART --------------------------------------------------------8 ---------------------------------------------------------------------------------------------8 RONT ANEL  LCM-119 ---------------------------------------------------------------------------------------------8 LCM-123 ---------------------------------------------------------------------------------------------9  Front Keys Arrangements ---------------------------------------------------------------------------9   Front Keys Operations-------------------------------------------------------------------------------9  Front panel LED Operations----------------------------------------------------------------------- 10 -------------------------------------------------------------------------------------------- 10 ANEL LCM-119 ------------------------------------------------------------------------------------------- 10...
  • Page 3 LCM-3G SERIES ------------------------------------------------------------------------------------------ 15 OLOR ELECT ------------------------------------------------------------------------------------- 15 ACKLIGHT DJUST ----------------------------------------------------------------------------------------- 15 AMMA SELECT ------------------------------------------------------------------------------------- 16 IMAGE MENU ------------------------------------------------------------------------------------------ 16 ------------------------------------------------------------------------------------------ 16 SPECT ATIO -------------------------------------------------------------------------------------------------- 16 -------------------------------------------------------------------------------------------------- 16 NR (N ) -------------------------------------------------------------------------------- 17 OISE EDUCTION PC M ) ----------------------------------------------------------------------------- 17 PC MODE ONLY MARKER MENU OPTIONS-------------------------------------------------------------------------- 17 &...
  • Page 4 LCM-3G SERIES PIP MENU (PICTURE IN PICTURE)----------------------------------------------------------------- 23 PIP ON/OFF------------------------------------------------------------------------------------------- 23 ------------------------------------------------------------------------------------------ 24 NPUT OURCE ------------------------------------------------------------------------------------------ 24 SPECT ATIO ----------------------------------------------------------------------------------------------- 24 OSITION PIP B --------------------------------------------------------------------------------------------- 25 LEND PIP S ---------------------------------------------------------------------------------------------- 25 OSD TREE -------------------------------------------------------------------------------------------- 26 ------------------------------------------------------------------------------------------------- 27 OLOR -------------------------------------------------------------------------------------------------- 27 MAGE ------------------------------------------------------------------------------------------------ 28 ARKER...
  • Page 5 To reduce the risk of any electric shock, do not remove back cover as there are no user serv iceable parts inside. Please refer to Plura or a qualified service personnel/agent. To prevent fire or shock hazard, do not expose the rear side of the unit to rain or moisture. Do not rub or clean the Active Matrix LCD with any harsh surface as this may scratch, mark, or damage the Active Matrix LCD permanently.
  • Page 6 A product should be transported with care. Excessive force and uneven surfaces may cause the damage to product. Attachments Do not use attachments not recommended by Plura as they may cause hazards. Ventilation Do not block any of the ventilation openings.
  • Page 7 LCM-3G SERIES 16. Servicing Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages or other hazards. Refer all servicing to qualified service personnel. If the device does not operate properly, switch it off and call your dealer.

  • Page 8: Overview

    LCM-3G SERIES OVERVIEW LCM Series consists of high quality HD LCD monitors, specifically designed for use in Broadcast environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards. It supports up to 3Gbps-1080-60P along with all other Digital & Analog inputs &...

  • Page 9: Lcm-123

    LCM-3G SERIES LCM-123  Center Maker Marker Front Key Front Keys Arrangements  Front Keys Operations  Key Name Operation STANDBY Power ON/OFF Button. This button is operated after being pressed about 3 seconds. ► ► Activates OSD menu of selected input source. SEL/INPUT Changes input source.

  • Page 10: Front Panel Led Operations

    LCM-3G SERIES ► Executes user selected functions FUNCTION UNDEF, Aspect, Zoom, Color tepm, Gamma select, PIP, PIP Source, PIP size, PIP Position, PIP Swap, Input Composite, Input PC, Input HDMI, Input DVI SCAN ► Executes Scan function ( Over-Scan -> Zero-Scan -> Under Scan-> Pixel to Pixel) ►...

  • Page 11: Connection Details

    LCM-3G SERIES Connection Details  Interface description  Interface Description SDI 1 IN SDI Input SDI 2 IN SDI 1 OUT SDI 1 Loop Through Output. SDI 2 OUT SDI 2 Loop Through Output. RS-232 IN Update/Multi Control/Auto color calibration HDMI High Definition Multimedia Input High Definition Multimedia Input Compatible...

  • Page 12: To Show And Remove The Menu

    LCM-3G SERIES To show and remove the Menu Press the MENU button to display the menu. A second press of the MENU button will take you back to monitor viewing. To go to the next level Press button. SEL/INPUT To go back to the previous level Press MENU button Typical Menu Operation 1.

  • Page 13: On Screen Menu Selection And Adjustment

    LCM-3G SERIES On Screen Menu Selection and Adjustment How to adjust the OSD screen 1. Press the MENU button and then UP/DOWN button to select each menu. button and then use UP/DOWN (SEL/INPUT)/MENU button to display the 2. Press the SEL/INPUT available menu.

  • Page 14: Select Video Input

    LCM-3G SERIES SELECT VIDEO INPUT How to Select Video Source by OSD 1. Press the SET/INPUT button and then UP/DOWN button to select the desired video source. 2. Press the SET/INPUT button to go to desired video source. 3. If Input Name is enabled, The SET/INPUT button goes into input name edit mode instead of selecting source.

  • Page 15: Color Menu

    LCM-3G SERIES Color MENU 1) Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness directly from -50 to 50 Contrast, Brightness, Sharpness, Color (All Sources), Tint (except PC, Component), Phase (Component). 2) Color Select - For Setting the Color temperature or adjusting RGB gain value directly - User (User setting RGB gain value), VAR(3200K ~ 11000K), Often used value(11000K, 9300K, 6500K, 5400K,3200K)

  • Page 16: Mono/Blue Only

    LCM-3G SERIES 5) Mono/Blue Only - Mono color: For selecting monochrome images - Blue Only: Images have only blue color Image MENU 1) Aspect Ratio - For setting the aspect ratio. - Full Screen: The images are displayed with a panel size. - Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1: The images are displayed with each aspect ratio.

  • Page 17: Nr (Noise Reduction)

    LCM-3G SERIES LCM-3G SERIES LCM-3G SERIES picture. picture. picture. - Press Select or Enter button, user can see the enlarged picture. - Press Select or Enter button, user can see the enlarged picture. - Press Select or Enter button, user can see the enlarged picture. - Menu key escape the zoom mode.

  • Page 18: Safety Marker

    LCM-3G SERIES 1. Marker : 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, User1, User2, User3 fitted panel size marker on screen. 2. User Marker: The user Marker size. (Below panel size) Example (1440x900 panel) 16:9 (16:9 Marker) 16:9 (4:3 Marker) 2) Safety Marker -Safety Area: Draw dotted line Marker on screen for graphics and logo applications.

  • Page 19: Marker Color

    LCM-3G SERIES 5) Marker Color - Marker Line Color: Select Marker line color (White, Yellow, Blue, RED, Black) 6) Safety Marker Color - Safety Line Color: Select Safety line color (White, Yellow, Blue, RED, Black) System MENU 1) Setup Load & Setup Save - Setup Load: Load user saved values or default value - Setup Save: Save user setting values at user 1, 2, 3.

  • Page 20: Function Key

    LCM-3G SERIES 2) Function Key - Function Key: Select the function to be allocated to the FUNCTION buttons Function Key Description UNDEF Not set (no function allocated) Aspect Sets the aspect ratio of the images Zoom Zoom function is operated(Off, 2x, 3x, 4x, 5x) Color Temp User (User setting RGB gain value), VAR(3200K ~ 11000K), Often used value(11000K, 9300K, 6500K, 5400K,3200K)

  • Page 21: Under Monitor Display (Color: Tally R/G Mode Action )

    LCM-3G SERIES Under Monitor Display (color: Tally R/G mode action )  Channel-12  UMD: UMD display on/off  UMD Character: UMD Character Select  UMD Position: UMD display position select (L-T, C-T, R-T, L-B, C-B, R-B)  UMD FG Color: UMD Character color Select (RGB_255_192_128_Transparent) ...

  • Page 22: Advanced Menu

    LCM-3G SERIES - Set Active SET ID number is the max number of monitors’ controlled remotely via Ethernet or RS-232 - If your monitor control network consists of 15 monitors, then Active SET ID must set to 15. Advanced MENU 1) Advanced - Information, Option, Screen Control, Network Config 2) Information...

  • Page 23: Network Config

    - Internal Pattern: 100% Color Bars, 75% Color Bars, Luma, RGB, White, Black, RED, Blue, Green 5) Network Config -Plura System Controller (PSC-400) Network setting. Load Network Settings: ETHERNET configuration Press “Enter”. (ID/IP Address/Gateway/Subnet Load) DHCP: DHCP on/off (Manual IP settings – DHCP on) * “Apply”...

  • Page 24: Input Source

    LCM-3G SERIES - Control PIP function On/Off. 2) Input Source - PIP input Source can operate with different signal and type. - Analog (Composite1, 2, 3, Y.Pb.Pr, GBR, PC) inputs + SDI (SDI1, SDI2) inputs -SDI + SDI input PIP Ex) AV + S-Video (X), AV +SDI2 (O) 3) Aspect Ratio - Choose PIP size of Small/POP1/POP2...

  • Page 25: Pip Blend

    LCM-3G SERIES LCM-3G SERIES LCM-3G SERIES 5) PIP Blend 5) PIP Blend 5) PIP Blend -Blend to PIP size of Small -Blend to PIP size of Small -Blend to PIP size of Small 6) PIP Swap 6) PIP Swap 6) PIP Swap - Using Swap option, you can exchange two programs or source at the same time.

  • Page 26: Osd Tree

    LCM-3G SERIES LCM-3G SERIES LCM-3G SERIES OSD TREE OSD TREE OSD TREE...

  • Page 27: Color

    LCM-3G SERIES LCM-3G SERIES LCM-3G SERIES 1) Color 1) Color 1) Color 2) Image 2) Image 2) Image...

  • Page 28: Marker

    LCM-3G SERIES LCM-3G SERIES LCM-3G SERIES 3) Marker 3) Marker 3) Marker...

  • Page 29: System

    LCM-3G SERIES LCM-3G SERIES LCM-3G SERIES 4) System 4) System 4) System...

  • Page 30: Advanced

    LCM-3G SERIES LCM-3G SERIES LCM-3G SERIES 5) Advanced 5) Advanced 5) Advanced...

  • Page 31: Pip

    LCM-3G SERIES LCM-3G SERIES LCM-3G SERIES 6) PIP 6) PIP 6) PIP...

  • Page 32: Specifications

    350 cd/m2 Viewing Angle R/L: 140 (Typ), U/D 140 (Typ) Panel TFT LCD Panel 19 inch 1366(H) × 768(V) (Contrast 700:1) Resolution LCM-119-3G Brightness 300 cd/m2 Viewing Angle R/L: 178 (Typ), U/D 178 (Typ) Panel TFT LCD Panel 23 inch...

  • Page 33: Upported Signals

    LCM-3G SERIES 2) Supported Signals SMPTE-425M 1920x1080P(50/60) SMPTE-274M 1920x1080i (50/60), 1920x1080P(24/25/30) Serial Digital Interface SMPTE-296M 1280x720P (50/59.94/60) SMPTE-125M(480i/59.94), ITU-R BT601(576i/50) H Frequency Range : 20~82 kHz V Frequency Range : 55 ~ 90 Hz HDMI Maximum resolution :1920x1080 60Hz DVI-D Maximum pixel rate : 162 MHz DTV mode support : 720P, 1080i, 1080p Supported Signals...

  • Page 34: Supported Timings

    LCM-3G SERIES 3) Supported Timings PC & DVI input  Pixel H Frequency Section Resolution Frequency Frequency Comment ( kHz ) ( Hz ) ( MHz ) 640x400 37.861 85.08 31.5 640x350 31.469 70.087 25.175 640x350 37.861 85.08 31.5 640x480 31.469 59.94 25.175...
  • Page 35 LCM-3G SERIES 1024x768 72.810 90.0 100.187 1152x864 53.700 60.0 81.624 1152x864 62.932 69.924 96.663 1152x864 67.500 75.0 104.993 1152x870 68.681 75.062 100.0 1152x900 61.846 66.0 94.787 1152x900 72.713 76.047 105.561 1280x720 47.760 60.0 74.481 1280x720 52.500 70.0 89.040 1280x720 54.072 72.0 91.706 1280x720...

  • Page 36: Mechanical Dimension

    LCM-3G SERIES MECHANICAL DIMENSIONS LCM-207-3G  LCM-209-3G ...

  • Page 37: Lcm-119

    LCM-3G SERIES LCM-119-3G  LCM-123-3G ...

  • Page 38: Lcm-132

    LCM-3G SERIES LCM-132-3G  LCM-147-3G (TBD) ...
