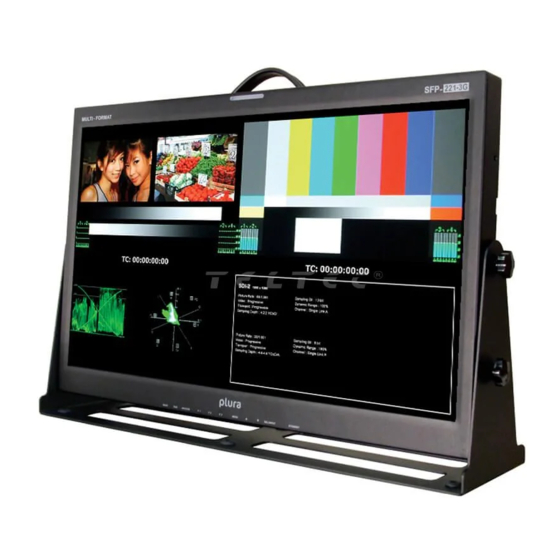

- Page 1 Operating Instructions SFP-3G Series SFP-217-3G SFP-3G Series SFP-221-3G SFP-224-3G...
-
Page 2: Table Of Contents
Users’ Manual: SFP-3G Series PRECAUTION ------------------------------------------------------------------------------------------------------------- 6 OVERVIEW----------------------------------------------------------------------------------------------------------- 9 GENERAL FEATURES ------------------------------------------------------------------------------------------------ 9 FUNCTIONAL EXPLANATION OF EACH PART------------------------------------------------------------------- 11 ----------------------------------------------------------------------------------------------------- 11 RONT ANEL SFP-217-3G ---------------------------------------------------------------------------------------------------- 11 Front Keys Arrangements ------------------------------------------------------------------------------------- 11 Front Keys Operations ----------------------------------------------------------------------------------------- 12 SFP Module Information -------------------------------------------------------------------------------------- 13 ... - Page 3 Users’ Manual: SFP-3G Series -------------------------------------------------------------------------------------- 21 OLOR EMPERATURE ONTROL SCAN-------------------------------------------------------------------------------------------------------------- 22 ------------------------------------------------------------------------------------------------------ 22 SPECT ATIO -------------------------------------------------------------------------------------------------------------- 22 ------------------------------------------------------------------------------------------------- 23 PC M )------------------------------------------------------------------------------------------ 23 PC MODE ONLY ---------------------------------------------------------------------------------------------------------------- 24 NR (N ) ------------------------------------------------------------------------------------------ 24 OISE EDUCTION SFP S ----------------------------------------------------------------------------------------------------- 24 ETTING...
- Page 4 Users’ Manual: SFP-3G Series Under Monitor Display (color: Tally R/G mode action ) ----------------------------------------------------- 33 Input ID -------------------------------------------------------------------------------------------------------- 33 SDI Signal state ------------------------------------------------------------------------------------------------ 34 --------------------------------------------------------------------------------------------------------- 34 DVANCED Information----------------------------------------------------------------------------------------------------- 34 Control --------------------------------------------------------------------------------------------------------- 35 Screen Saver --------------------------------------------------------------------------------------------------- 35 ...
- Page 5 Users’ Manual: SFP-3G Series ------------------------------------------------------------------------------------------------------------ 46 ARKER GPI ---------------------------------------------------------------------------------------------------------------- 47 -------------------------------------------------------------------------------------------------------------- 48 ETUP PIP ---------------------------------------------------------------------------------------------------------------- 49 SUPPORTED INPUT MODES ------------------------------------------------------------------------------------ 50 ------------------------------------------------------------------------------------------------ 50 UPPORTED IGNALS ------------------------------------------------------------------------------------------------ 51 UPPORTED IMINGS SDI input ------------------------------------------------------------------------------------------------------- 51 PC & DVI input ------------------------------------------------------------------------------------------------ 51 ...
-
Page 6: Precaution
To reduce the risk of any electric shock, do not remove back cover as there are no user serviceable parts inside. Please refer to Plura or a qualified service personnel/agent. To prevent fire or shock hazard, do not expose the rear side of the unit to rain or moisture. - Page 7 A product should be transported with care. Excessive force and uneven surfaces may cause the damage to product. 8. Attachments Do not use attachments not recommended by Plura as they may cause hazards. 9. Ventilation Do not block any of the ventilation openings.
- Page 8 Users’ Manual: SFP-3G Series 16. Servicing Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages or other hazards. Refer all servicing to qualified service personnel. If the device does not operate properly, switch it off and call your dealer.
-
Page 9: Overview
PLURA SFP modules which can fit any possible broadcast application. It supports up to 3Gbps- 1080-60P along with all other Digital & Analog inputs & formats. The SFP-3G series is capable of converting the SD/HD/3G input to HDMI output. - Page 10 Users’ Manual: SFP-3G Series • LCD Dimming Control • Manual Dimming Level Control. • Rack Mount (OPTION) • UMD • Auto Calibration: CA-310(Minolta) / K-10(Klein) • ETHERNET: Network System Controller / Update Page 10 of 57...
-
Page 11: Functional Explanation Of Each Part
Users’ Manual: SFP-3G Series Functional explanation of each part 1) Front Panel SFP-217-3G Audio Level Meter Tally LED Marker Vector Scope WAVEFORM SDI 1 1920x1080I TC: 00:00:00:00 Time Code Front Key Speaker Front Keys Arrangements Page 11 of 57... -
Page 12: Front Keys Operations
Users’ Manual: SFP-3G Series Front Keys Operations Key Name Operation ►Power ON/OFF Button. This button is operated after being pressed about 3 seconds. STANDBY ►SFP Modules Input CH selected. INPUT CH1/CH2/CH3/CH4/CH5/CH6 ►Channels in the input signal, the key led light. -
Page 13: Sfp Module Information
Users’ Manual: SFP-3G Series SFP Module Information - Activates OUTPUT key ch1~6 or ALL key -Slot 1~4: SFP Module mounted information display. -Out 1~6/ SDI Main/SDI Sub: Select the output signal. (input1~6) -The selected output channel activation. (Yellow Color) Channels in the input signal. -
Page 14: Dc Battery In
Users’ Manual: SFP-3G Series DC Battery IN PIN NO Description 2 , 3 + 12V RJ-45 ETHERNET/UPDATE - Firmware Upgrade/ System Controller (Ethernet) & GPI Remote PIN Assignment 1 PIN COMMON(GND) 5 PIN GPI 4 PORT GPI 7 PORT... -
Page 15: Interface Description
Users’ Manual: SFP-3G Series Interface description Interface Description Input ch 1/Output ch Input ch 2 Input ch 3/Output ch Input ch 4 SFP Module 4 Slot Output ch 3 Input ch 5/Output ch Output ch 5 Input ch 6/Output ch... - Page 16 Users’ Manual: SFP-3G Series AC IN AC90V ~ 240V, 50Hz/60Hz DC IN PBM-217: DC 11V ~ 17V ,PBM-224: DC 24V ETHERNET UPDATE ETHERNET/Firmware Upgrade GPI 1 ~ 7 Control Port Page 16 of 57...
-
Page 17: Menu Overview
Users’ Manual: SFP-3G Series MENU OVERVIEW In this menu system, there are several ways to customize the menu settings provided. Most menus consist of three levels to set up the options, but some require greater depth for the variety of settings. -
Page 18: Basic Operation
Users’ Manual: SFP-3G Series BASIC OPERATION 1) Turning On the Monitor 1. First, connect power cord correctly. At this moment, the monitor switches to standby or power on mode. In standby mode, in order to turn monitor on, press the ST-BY button. -
Page 19: On Screen Menus Selection And Adjustment
Users’ Manual: SFP-3G Series On Screen Menus Selection and Adjustment How to adjust the OSD screen 1. Press the MENU button and then UP/DOWN button to select each menu. button and then use UP/DOWN (SEL/INPUT)/MENU button to display the 2. Press the SEL/INPUT available menus. -
Page 20: Select Video Input
Users’ Manual: SFP-3G Series SELECT VIDEO INPUT How to Select Video Source by OSD 1. Press the SET/INPUT button and then UP/DOWN button to select each video source. 2. Press the SET/INPUT button to go to desired video source. 3. If Input Name is enabled, The SET/INPUT button goes into input name edit mode instead of selecting source. -
Page 21: Picture Menu Options
Users’ Manual: SFP-3G Series PICTURE MENU OPTIONS Video Menus of each Input modes < Video (NTSC) Picture menu> < PC Picture menu> < SDI, HDMI Picture menu> 2) Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness... -
Page 22: Scan
Users’ Manual: SFP-3G Series - User (User setting RGB gain value), VAR(3200K ~ 11000K), Often used value(11000K, 9300K, 6500K, 5400K,3200K) 4) SCAN 1. Over Scan – 95% input size and fit the selected display size 2. Zero Scan – 100% Input size and fit the selected display size 3. -
Page 23: Mono/Blue Only
Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series - Example (3X3) - Example (3X3) - Example (3X3) Zoom X position: Coordinate of video image’s column position. Zoom X position: Coordinate of video image’s column position. Zoom X position: Coordinate of video image’s column position. -
Page 24: Flip
Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series 9) Flip 9) Flip 9) Flip < H-Flip Off > < H-Flip Off > < H-Flip Off > < H-Flip On > < H-Flip On > < H-Flip On >... -
Page 25: Audio Menu Options
Users’ Manual: SFP-3G Series AUDIO MENU OPTIONS 1) MAIN / SUB Audio out -Main: Select Internal Speaker out. (Auto/SDI1/SDI2/HDMI/Line in) -Sub: Select sub display sound. (Auto/SDI1/SDI2/HDMI/Line in) 2) SDI Main/ SDI Sub Audio Output Channel - Audio output channel source select. (Channel1~4, Channel1/2, Channel3/4, off) 3) SDI Main/ SDI Sub Audio Group - Select primary or secondary audio group to extract. -
Page 26: Level Meter Type
Users’ Manual: SFP-3G Series - Display the audio level meter on screen in SDI input. - Audio level meter cannot display with OSD. 5) Level Meter Type -Pair: Respectively Channel with right and left display -Group: Respectively group display 6) Level Meter Position - Level Meter Position selects. -
Page 27: Volume
Users’ Manual: SFP-3G Series 8) Volume - Adjust the speaker or headphone Volume level. (0~100) Marker MENU OPTIONS 1) Marker & User Marker < Marker > < User Marker > 1. Marker : 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, User1, User2, User3 fitted panel size marker on screen. -
Page 28: Safety Area
Users’ Manual: SFP-3G Series 16:9 (16:9 Marker) 16:9 (4:3 Marker) 2) Safety Area -Safety Area: Draw dotted line Marker on screen in case of images. (16:9 95/93/90/88/80%, 4:3 95/93/90/88/80%, EBU Action 16:9/14:9/4:3, EBU Graphic 16:9/14:9/4:3) 3) Center Maker - “+” Marker on center of screen 4) Marker Width -Marker line thickness setting. -
Page 29: Preset 1 & Preset
Users’ Manual: SFP-3G Series - Marker BK Blend Color: Select Marker blending level. (0 ~ 5) - Safety BK Blend Color: Select Safety blending level. (0 ~ 5) 6) Preset1 & Preset2 - For setting the marker to use by GPI controller. -
Page 30: Gpi Menu Options
Users’ Manual: SFP-3G Series GPI MENU OPTIONS 1) GPI Control & GPI# - For allocating functions to particular GPI pins. - When remote control operations are to be performed using the GPI Controller. - GPI Control: GPI function Enable/Disable - GPI 1 ~ 7... -
Page 31: Setup Menu Options
Users’ Manual: SFP-3G Series Input DVI, Input HDMI Menu Key, Enter Key, Up Key, Down Key Use the key function by GPI. Left Key, Right Key Function 1, Function 2, Function 3 Activates FUNCTION 1, 2, 3 buttons Aspect Sets the aspect ratio of the images Waveform Activates WAVRFORM &... -
Page 32: On Screen Display
Users’ Manual: SFP-3G Series - Function 1, 2, 3: Select the function to be allocated to the FUNCTION 1, 2, 3 buttons Function1&2 button Description UNDEF Not set (no function allocated) Waveform Activates WAVRFORM & Vector Scope (SDI Only) Level meter... -
Page 33: Time Code
Users’ Manual: SFP-3G Series OSD Position: L-T, R-T, C, L-B, R-B OSD Transparency: Disable blending OSD background with video image. OSD Time out: OSD gone time setting. (3~200) Time code Time code Enable: Time code Display (off/LTC/DVITC, SDI only) Time code size: Time code size select. -
Page 34: Sdi Signal State
Users’ Manual: SFP-3G Series Input ID: source Message display. ID Style: select “Input Format”/”Custom Label” Input Label: Display user made name instead of input source name on source OSD and message OSD SDI Signal state SDI Signal date display on/off (H/V sync, image, Audio, Audio Phase, EDH packet, EDH FF CRC, EDH... -
Page 35: Control
Users’ Manual: SFP-3G Series Control - FRONT LED: Front LED on/off - Local Enable: Power, up and down key is only worked, if Local enable is off. - Remote Enable: Select the controller of local or remote. If remote controller is selected, both local (front key) and remote are worked. -
Page 36: Fan Control
MCU Fan Control: Control main MCU Fan On/Off Network Config -Plura System Controller (PSC-400) Network setting. Load Network Settings: ETHERNET cable connected after “Enter”. (IP Address/Gateway/Subnet Load) DHCP: DHCP on/off (Manual IP settings – DHCP on) * “Apply” enter all settings after. -
Page 37: X768 Mode
Users’ Manual: SFP-3G Series X768 Mode -Selects X768 native PC video timings. (Auto/1024x/1280x/1360x/1366x) 5) Caption Closed Caption: 608 Line21, 608 ANC, 608 Trans-coded mode Select ABCDEFGH - 608 Caption mode Select. (C/C1, C/C2, C/C3, C/C4, TEXT1, TEXT2, TEXT3, TEXT4, OFF) -
Page 38: Y-Waveform + Vector Scope
Users’ Manual: SFP-3G Series Y-Waveform + Vector Scope - WAVEFORM & Vector Scope & Audio Lever Meter & Info Window & Time code Display. Double - SDI 1, 2 & WAVEFORM & Vector Scope & Audio Lever Meter & Info Window & Time code Display. -
Page 39: Y-Waveform + Vector Scope Trans
Users’ Manual: SFP-3G Series Y-Waveform + Vector Scope Trans - WAVEFORM & Vector Scope Trans. Vector Color - Vector color: Select 100% or 75% Line Select - Select line WAVEFORM & Vector Scope display. - Line select: 1~540 Line # ... -
Page 40: Pip (Picture In Picture)
Users’ Manual: SFP-3G Series PIP (Picture In Picture) - Watch two programs or source at the same time. And set up PIP size and position. - Only Dual Link model Select 1) PIP ON/OFF - Control PIP function On/Off. 2) Input Source - PIP input Source can operate with different signal and type. -
Page 41: Position
Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series 4) Position 4) Position 4) Position - Choose the pip position on the each corner of the pane - Choose the pip position on the each corner of the pane... -
Page 42: Sub Window Function
Users’ Manual: SFP-3G Series 8) Sub Window Function - Full Sub Window: Display the same full images on POP1 screen. - Part Sub Window: First image scale 4:3 aspect ratio and then display on POP2 screen. - FULL, Part function is only used in Digital input (SDI1, SDI2, DVI, HDMI) -
Page 43: Osd Tree
Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series OSD TREE OSD TREE OSD TREE Page 43 of 57 Page 43 of 57 Page 43 of 57... -
Page 44: Picture
Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series Picture Picture Picture Page 44 of 57 Page 44 of 57 Page 44 of 57... -
Page 45: Sound
Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series 2) Sound 2) Sound 2) Sound Page 45 of 57 Page 45 of 57 Page 45 of 57... -
Page 46: Marker
Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series 3) Marker 3) Marker 3) Marker Page 46 of 57 Page 46 of 57 Page 46 of 57... -
Page 47: Gpi
Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series 4) GPI 4) GPI 4) GPI Page 47 of 57 Page 47 of 57 Page 47 of 57... -
Page 48: Setup
Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series 5) Setup 5) Setup 5) Setup Page 48 of 57 Page 48 of 57 Page 48 of 57... -
Page 49: Pip
Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series Users’ Manual: SFP-3G Series 6) PIP 6) PIP 6) PIP Page 49 of 57 Page 49 of 57 Page 49 of 57... -
Page 50: Supported Input Modes
Users’ Manual: SFP-3G Series SUPPORTED INPUT MODES 1) Supported Signals Items Specifications Panel 17.3” FHD TFT LCD 1920 horizontal. by 1080 vertical.(Contrast Resolution SFP-217-3G 500:1) Display Brightness 200 cd/m2 Viewing Angle R/L 40/40(Min), U/D 30/10 (Min) HD SDI- 2.970Gbps Serial Digital Interface... -
Page 51: Supported Timings
Users’ Manual: SFP-3G Series ANALOG Component 1080p/1080i/720P/480i/576i/480P/576P (DTV/DVD) CVBS NTSC/PAL/SECAM 2) Supported Timings SDI input SDI input SMPTE-428.1M 2048x1080P(24/25) SMPTE-425M(3G) 1920x1080P(50/60) SMPTE-260M 1920x1035i(60/59.94) SMPTE-259M 1920x1080i(50) SDI input 1920x1080i (50/59.94/60) Signal SMPTE-274M formats 1920x1080P (30Psf/25Psf/24Psf/30/25/24) SMPTE-296M 1280x720P (24/25/30/50/59.94/60) SMPTE-125M 480i(59.94) ITU-R BT.601... - Page 52 Users’ Manual: SFP-3G Series 640x480 31.469 59.94 25.175 640x480 35.000 66.667 30.24 640x480 34.940 69.884 28.513 640x480 37.861 72.809 29.765 640x480 37.500 75.0 31.5 640x480 43.269 85.008 36.0 640x480 45.540 90.0 37.889 720x400 31.469 70.087 28.322 720x400 37.927 85.039 35.5 800x600 35.156...
- Page 53 Users’ Manual: SFP-3G Series 1024x768 60.030 75.029 78.75 1024x768 68.677 84.997 94.5 1024x768 72.810 90.0 100.187 1152x864 53.700 60.0 81.624 1152x864 62.932 69.924 96.663 1152x864 67.500 75.0 104.993 1152x870 68.681 75.062 100.0 1152x900 61.846 66.0 94.787 1152x900 72.713 76.047 105.561 1280x720 47.760...
-
Page 54: Sfp Modules Supported
Users’ Manual: SFP-3G Series 720x480 15.735 59.94 13.500 Interlaced 720x576 15.735 50.0 13.595 Interlaced 720x480 31.469 59.94 25.175 720x576 31.250 50.0 26.566 1280x720 44.964 59.94 74.176 1280x720 37.500 50.0 60.466 1920x1080 33.750 60.0 74.25 Interlaced 1920x1080 28.125 50.0 70.723 Interlaced 1920x1080 31.250... -
Page 55: Mechanical Dimension
Users’ Manual: SFP-3G Series 13. Mechanical Dimension SFP-217-3G *AutoCad.dwg available upon request SFP-221-3G *AutoCad.dwg available upon request Page 55 of 57... - Page 56 Users’ Manual: SFP-3G Series SFP-224-3G *AutoCad.dwg available upon request Page 56 of 57...
- Page 57 www.plurainc.com U.S.A. Germany U.A.E. S.Korea Page 57 of 57...
