  • Page 1 ® User PRM-3G Series Manual PRM- 224-3G-O Integrated OLED Monitor PRM-224-3G-O...
  • Page 2: Table Of Contents

    PRM-224-3G-O USER MANUAL PREACUTION--------------------------------------------------------------------------------------------------6 OVERVIEW------------------------------------------------------------------------------------------------8 GENERAL FEATURES-------------------------------------------------------------------------------------8 FUNCTIONAL EXPLANATION OF EACH PART ------------------------------------------------------ 10 ------------------------------------------------------------------------------------------- 10 RONT ANEL PRM-224-3G-O ------------------------------------------------------------------------------------ 10   Front Keys Arrangements ------------------------------------------------------------------------- 10 Front Keys Operations----------------------------------------------------------------------------- 11   Front panel LED Operations----------------------------------------------------------------------- 11 Speaker Out---------------------------------------------------------------------------------------- 11 ...
  • Page 3 PRM-224-3G-O USER MANUAL ------------------------------------------------------------------------------------------------- 17 DJUST ------------------------------------------------------------------------- 17 OLOR EMPERATURE ONTROL SCAN ------------------------------------------------------------------------------------------------- 18 ------------------------------------------------------------------------------------------ 18 SPECT ATIO -------------------------------------------------------------------------------------------------- 18 ------------------------------------------------------------------------------------- 19 ----------------------------------------------------------------------------------------- 19 EAKING ILTER ------------------------------------------------------------------------------------------- 19 ALSE OLOR HDR M - OPTIONAL --------------------------------------------------------------------------- 20 NR (N ) ------------------------------------------------------------------------------ 20 OISE EDUCTION -------------------------------------------------------------------------------------- 20...
  • Page 4 PRM-224-3G-O USER MANUAL ------------------------------------------------------------------------------------ 29 CREEN ISPLAY  OSD Option ---------------------------------------------------------------------------------------- 29 Time code------------------------------------------------------------------------------------------ 29   Under Monitor Display (color: Tally R/G mode action ) ----------------------------------------- 29 Input ID -------------------------------------------------------------------------------------------- 29   SDI Signal state ------------------------------------------------------------------------------------ 30 --------------------------------------------------------------------------------------------- 30 DVANCED ...
  • Page 5 PRM-224-3G-O USER MANUAL OSD TREE -------------------------------------------------------------------------------------------- 37 -------------------------------------------------------------------------------------------------- 38 IDEO ------------------------------------------------------------------------------------------------- 39 UDIO ------------------------------------------------------------------------------------------------ 40 ARKER GPI ---------------------------------------------------------------------------------------------------- 41 -------------------------------------------------------------------------------------------------- 42 ETUP PIP ---------------------------------------------------------------------------------------------------- 43 MECHANICAL DIMENSION------------------------------------------------------------------------- 44 PRM-224-3G-O--------------------------------------------------------------------------------------- 44...
  • Page 6: Preacution

    This product should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product damages. Accessories Do not use accessories not recommended by PLURA Inc. as they may cause hazards. Ventilation Do not block any of the ventilation openings.
  • Page 7 PRM-224-3G-O USER MANUAL ’ Install in accordance with the manufacturer s instructions. 10. Power Sources This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply, consult your power supply company.
  • Page 8: Overview

    Grade A - 10 BIT LED 17". PRM Plura Precision Broadcast LCD Series supports 3 Gbps – 1080P/60P input capability as well as all other types of digital video formats HD & SD-SDI and analog video formats like RGB, Component and Composite signals.
  • Page 9 PRM-224-3G-O USER MANUAL  Programmable 6 User Front Pushbutton Controls & GPI  LKFS AUDIO Measurement - Digital Loudness Audio Metering with selected channel measurement in LFKS scale  LKFS AUDIO Logging using the optional PSC/500 controller S/W  Closed Caption (608/708) – North American Market ...
  • Page 10: Functional Explanation Of Each Part

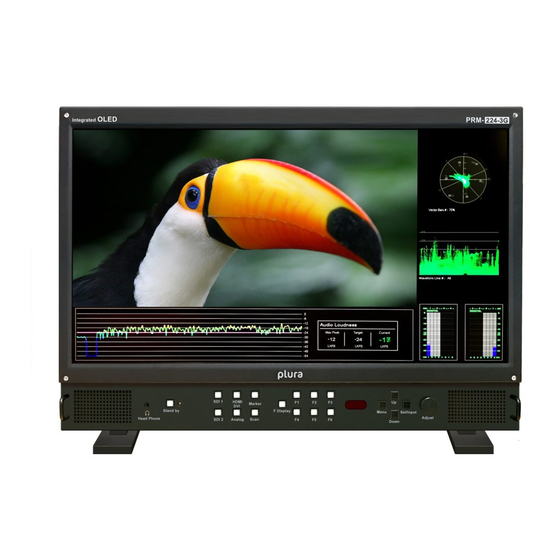

    PRM-224-3G-O USER MANUAL Functional explanation of each part 1) Front Panel Tally LED PRM-224-3G-O  Speaker Front Key Headphone Front Keys Arrangements ...
  • Page 11: Front Keys Operations

    PRM-224-3G-O USER MANUAL Front Keys Operations  Key Name Operation STANDBY ► Power ON/OFF Button. ► Select SDI 1 source SDI 1 ► Select SDI 2 source SDI 2 HDMI/DVI ► Select HDMI & DVI source ► Select ANALOG source ANALOG ( ‘Composite1’...
  • Page 12: Rear Panel

    PRM-224-3G-O USER MANUAL 2) Rear Panel Connection Details  Power IN  DC 24V IN IN NO Description + 24V RJ-45  ETHERNET Remote PIN Assignment 8 PIN COMMON(GND) 4 PIN GPI 4 PORT GPI 7 PORT 7 PIN 3 PIN GPI 3 PORT (STAND BY/POWER ON/OFF) 6 PIN...
  • Page 13: Interface Description

    PRM-224-3G-O USER MANUAL Contact Point Switch It is possible to attach Control Terminal: 1 ~ 7 Pin pin one by one. GND Terminal: 8 Pin of RJ-45 Interface description  Interface Description SDI 1 IN HD SDI / SD SDI Input SDI 2 IN SDI 1 OUT SDI 1, SDI 2 Loop Out...
  • Page 14: Menu Overview

    PRM-224-3G-O USER MANUAL MENU OVERVIEW In this system menu, there are several ways to maneuver the menu settings. Most menus consist of three levels to select the necessary option, but some settings require greater depth. If you press the MENU button, the first and second level of the menu system will appear on the monitor screen.
  • Page 15: Volume Adjustment

    PRM-224-3G-O USER MANUAL 2. Volume Adjustment 1. Press the ADJUST button on Keypad. 2. Press the MENU button on Keypad. - OSD Audio menu -> Volume menu. 3. On Screen Menu Language Selection - SETUP -> On Screen Display -> OSD Option -> Language - The menu can be shown on the screen in the selected language.
  • Page 16: Select Video Input

    PRM-224-3G-O USER MANUAL • The monitor's OSD (On Screen Display) may differ slightly from what is shown in this manual. SELECT VIDEO INPUT 1. How to Select Video Source by OSD 1. Press the SET/INPUT button and then UP/DOWN button to select the required video source. 2.
  • Page 17: Picture Menu Options

    PRM-224-3G-O USER MANUAL PICTURE MENU OPTIONS 1) Video Menu of different Input modes < Video (NTSC) Picture menu> < PC Picture menu> < SDI, HDMI Picture menu> 2) Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness range from -50 to 50 Contrast, Brightness, Sharpness, Color (All Sources), Tint (except PC, DVI, HDMI, Component), Phase (Component).
  • Page 18: Scan

    PRM-224-3G-O USER MANUAL 4) SCAN 1. Over Scan – 95% input size and fit the selected display size 2. Zero Scan – 100% Input size and fit the selected display size 3. Under Scan – 105% Input size and fit the selected display size 3.
  • Page 19: Mono/Blue Only

    PRM-224-3G-O PRM-224-3G-O PRM-224-3G-O USER MANUAL USER MANUAL USER MANUAL Zoom X position: Coordinate of video image’s column position. Zoom X position: Coordinate of video image’s column position. Zoom X position: Coordinate of video image’s column position. Zoom Y position: Coordinate of video image’s row position. Zoom Y position: Coordinate of video image’s row position.
  • Page 20: Hdr Mode - Optional

    PRM-224-3G-O USER MANUAL 10) HDR Mode - OPTIONAL - ST 2084-300 / ST 2084-1000 / ST 2084-10000 / HLG - HDR Demo on/off - HDR Demo split the screen vertically and shows the image with and without HDR. 11) NR (Noise Reduction) -Noise Reduction on/off.
  • Page 21: Ntsc Setup (Video Mode Only)

    PRM-224-3G-O USER MANUAL - Select Auto-adjust and adjust Phase, HV position, Frequency - Auto-Adjust automatically set the optimum values of Phase, HV position and Frequency. 14) NTSC Setup (Video mode only) - IRE value under NTSC mode between 0 IRE and 7.5 IRE. AUDIO MENU OPTIONS 1) MAIN / SUB Audio out -Main: Select Internal Speaker out.
  • Page 22: Level Meter

    PRM-224-3G-O USER MANUAL - Select primary or secondary audio group to decode. (Group 1~4) 4) Level Meter - Display the audio level meter on screen in SDI input. -Pair: Pair L & R channel display -Group: Group display - Level Meter Position selects. (TOP/Middle/Bottom) - Level Meter Scale mode selects.
  • Page 23: Lkfs - Audio Loudness Real-Time Monitoring & Logging

    PRM-224-3G-O USER MANUAL 5) LKFS - Audio Loudness Real-Time Monitoring & Logging -Audio Loudness setting (On, Off) and Set Target(LKFS) -Audio Loudness Real-Time monitoring.
  • Page 24: Volume

    PRM-224-3G-O USER MANUAL -Audio Loudness Real-Time logging on a remote PC using the optional PSC-500 (Plura System Controller Utility). 6) Volume - Adjust the speaker or headphone Volume level. (0~32)
  • Page 25: Marker Menu Options

    PRM-224-3G-O USER MANUAL Marker MENU OPTIONS 1) Marker & User Marker < Marker > < User Marker > - Marker : 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, User1, User2, User3 (Customized markers). - User Marker: The user defined Marker size setting. 16:9 (16:9 Marker) 16:9 (4:3 Marker) 2) Safety Area...
  • Page 26: Marker Width

    PRM-224-3G-O USER MANUAL 4) Marker Width -Marker line thickness setting. (0~10) 5) Marker Color - Marker Line Color: Select Marker line color (White, Yellow, Blue, RED, Black) - Safety Line Color: Select Safety line color (White, Yellow, Blue, RED, Black) - Marker outside area color: Select Marker Back Color.
  • Page 27: Setup Menu Options

    PRM-224-3G-O USER MANUAL GPI Function Description UNDEF Not set (no function allocated) Marker1 On/Off, Marker2 On/Off Displays the markers which have been set by the GPI PRESET1, 2 items on the screen. Center Marker Displays the center marker. Safety Area Displays the Safety Area.
  • Page 28: Function 1 ~6

    PRM-224-3G-O USER MANUAL 2) Function 1 ~6 - Function 1~6 : Function buttons can be programmed to any function from the below table. Function1~6 button Description UNDEF Not set (no function allocated) Marker size Marker size Select Audio Lv Meter Audio Lv Meter On / Off WF/Vector Display the Waveform...
  • Page 29: On Screen Display

    PRM-224-3G-O USER MANUAL 3) On Screen Display OSD Option   Language: Select the desired Menu language from list below. (English, Spanish, Portuguese, German, French, Italian) OSD Position: L-T, R-T, C, L-B, R-B  OSD Transparency: Disable blending OSD background with video image. OSD Time out: OSD display time setting.
  • Page 30: Sdi Signal State

    PRM-224-3G-O USER MANUAL SDI Signal state  SDI Signal state display on/off (H/V sync, image, Audio, Audio Phase, EDH packet, EDH FF CRC, EDH APCRC, SAC, EAV, VPI) 4) Advanced - Information, Control, Screen Saver, Screen Control, Fan Control, x768 Mode Information ...
  • Page 31: Fan Control

     MCU Fan Control: Control main MCU Fan On/Off Network Config  Plura System Controller (PSC-400/500) Network setting. Load Network Settings: Connect to your network and press “Enter”. (IP Address/Gateway/Subnet Load) DHCP: DHCP on/off (Manual IP settings – DHCP on) * “Apply”...
  • Page 32: Waveform Format (For Sdi Input Only)

    PRM-224-3G-O USER MANUAL - V-Chip : On/Off - 608 Caption channel: C/C1, C/C2, C/C3, C/C4, TEXT1, TEXT2, TEXT3, TEXT4 - 708 Caption Service: Service 1/Service 2 6) Waveform Format (For SDI input ONLY) Press the WAVEFORM button to display the WAVEFORM Mode Y-Pb-Pr Waveform ...
  • Page 33: Double

    PRM-224-3G-O USER MANUAL - WAVEFORM & Vector Scope & Audio Lever Meter & Info Window & Time code Display. Double  SDI 1 SDI 2 - SDI 1, 2 & WAVEFORM & Vector Scope & Audio Lever Meter & Info Window. Y-Waveform + Vector Scope Trans ...
  • Page 34: Line

    PRM-224-3G-O USER MANUAL - Select line WAVEFORM & Vector Scope display. - line select : 1~540 Line #  -line select Line Display  -off/on/5 sec 7) Video Range -Range Check: Range Check on/off. -Y Max: Maximum luminance level. -Y Min: Minimum luminance level. -C Max: Maximum chroma level.
  • Page 35: Pip (Picture In Picture)

    PRM-224-3G-O USER MANUAL PIP (Picture In Picture) - Display two programs or sources at the same time. And set up PIP size and position. - Only Dual Link model Select 1) PIP ON/OFF Control PIP function On/Off. 2) Input Source - PIP input Source can be selected from the drop down menus.
  • Page 36: Position

    PRM-224-3G-O PRM-224-3G-O PRM-224-3G-O USER MANUAL USER MANUAL USER MANUAL 4) Position 4) Position 4) Position - Choose the pip position on the each corner of the panel - Choose the pip position on the each corner of the panel - Choose the pip position on the each corner of the panel 5) PIP Blend 5) PIP Blend 5) PIP Blend...
  • Page 37: Osd Tree

    PRM-224-3G-O PRM-224-3G-O PRM-224-3G-O USER MANUAL USER MANUAL USER MANUAL OSD TREE OSD TREE OSD TREE...
  • Page 38: Video

    PRM-224-3G-O PRM-224-3G-O PRM-224-3G-O USER MANUAL USER MANUAL USER MANUAL 1) Video 1) Video 1) Video...
  • Page 39: Audio

    PRM-224-3G-O PRM-224-3G-O PRM-224-3G-O USER MANUAL USER MANUAL USER MANUAL 2) Audio 2) Audio 2) Audio...
  • Page 40: Marker

    PRM-224-3G-O PRM-224-3G-O PRM-224-3G-O USER MANUAL USER MANUAL USER MANUAL 3) Marker 3) Marker 3) Marker...
  • Page 41: Gpi

    PRM-224-3G-O PRM-224-3G-O PRM-224-3G-O USER MANUAL USER MANUAL USER MANUAL 4) GPI 4) GPI 4) GPI...
  • Page 42: Setup

    PRM-224-3G-O PRM-224-3G-O PRM-224-3G-O USER MANUAL USER MANUAL USER MANUAL 5) Setup 5) Setup 5) Setup...
  • Page 43: Pip

    PRM-224-3G-O PRM-224-3G-O PRM-224-3G-O USER MANUAL USER MANUAL USER MANUAL 6) PIP 6) PIP 6) PIP...
  • Page 44: Mechanical Dimension

    PRM-224-3G-O USER MANUAL Mechanical Dimension 1) PRM-224-3G-O...
